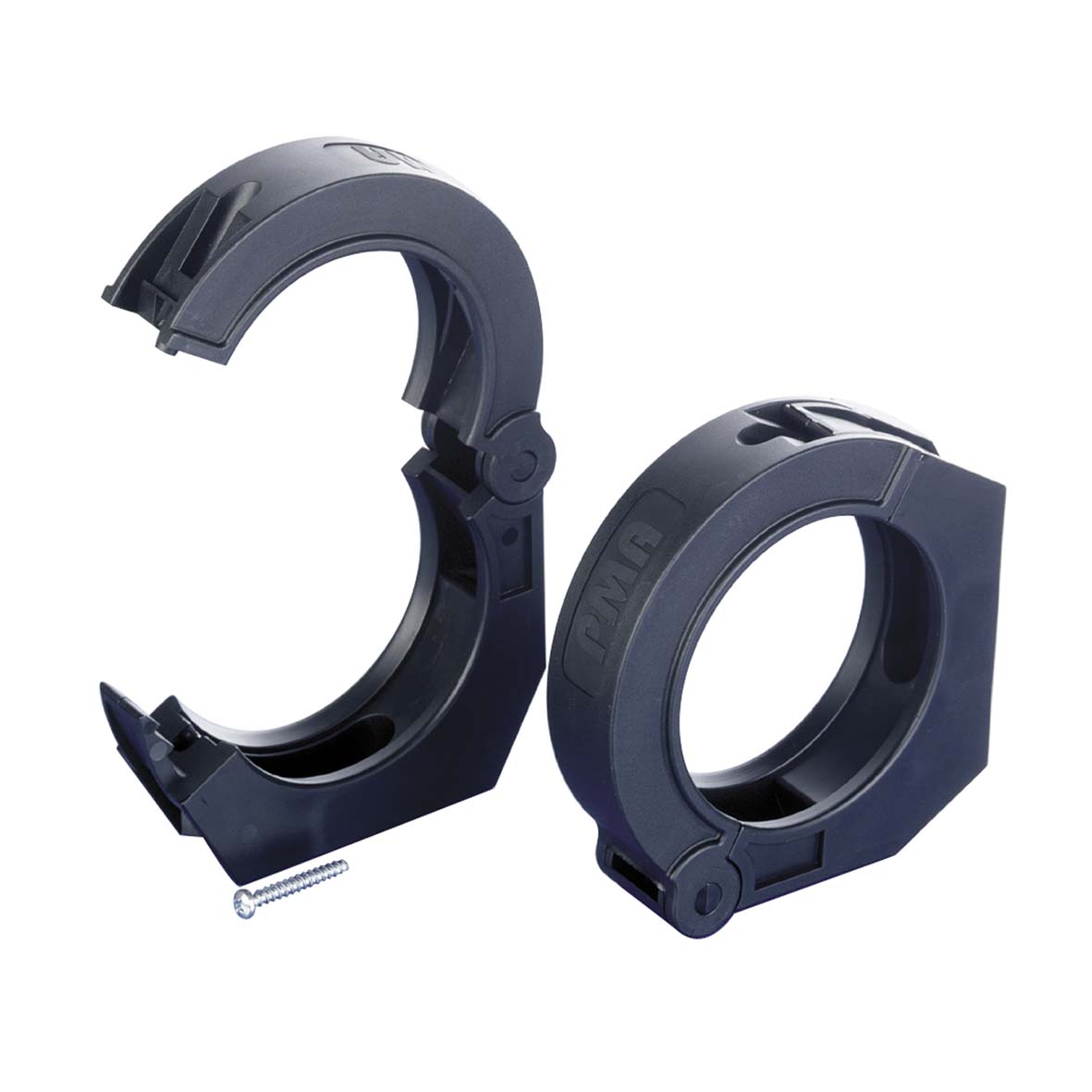

Tube Clamp BSH
- For automation applications, guiding or fixing PMA conduits.
- High-grade, specially formulated polyamide 6.
- Single-piece, robust construction.
- Easy installation.
- To be used in combination with standard half shells GN.
- Space saving design allows optimum installation in automation applications.
- Extends lifecycle of the cable pack due to reduced mechanical stress (avoiding torsion).
- Free from halogens and cadmium

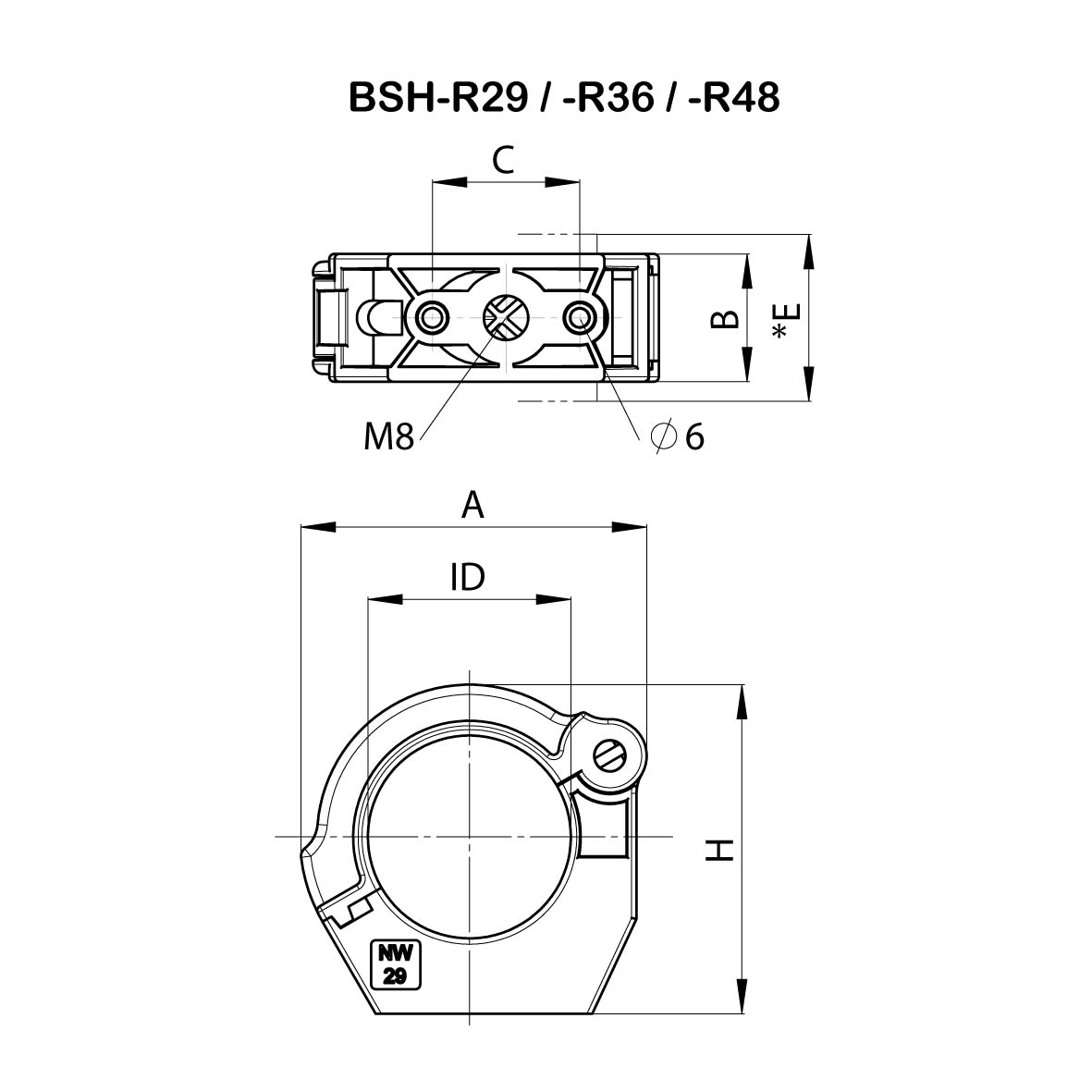

| E-number | Article no. | Compitable with tube clamp | A mm | B mm | C mm | D mm | H mm | E mm | Ø ID mm | Pcs/pack |
| - | BSH-R23 | BGN-S23T/BGN-S23G | 64 | 26 | 30 | - | 60,5 | 34 | 34,9 | 30 |
| 1410451 | BSH-R29 | BGN-S29T/BGNS29G/BGN-R29 | 71 | 26 | 30 | - | 67 | 34 | 41 | 30 |
| 1410452 | BSH-R36 | BGN-S36T/BGN-S36G/BGN-R36 | 81.5 | 26 | 30 | - | 77.5 | 36 | 49 | 20 |
| 1410453 | BSH-R48 | BGN-S48T/BGN-S48G/BGN-R48 | 96 | 26 | 30 | - | 91 | 36.5 | 61 | 20 |

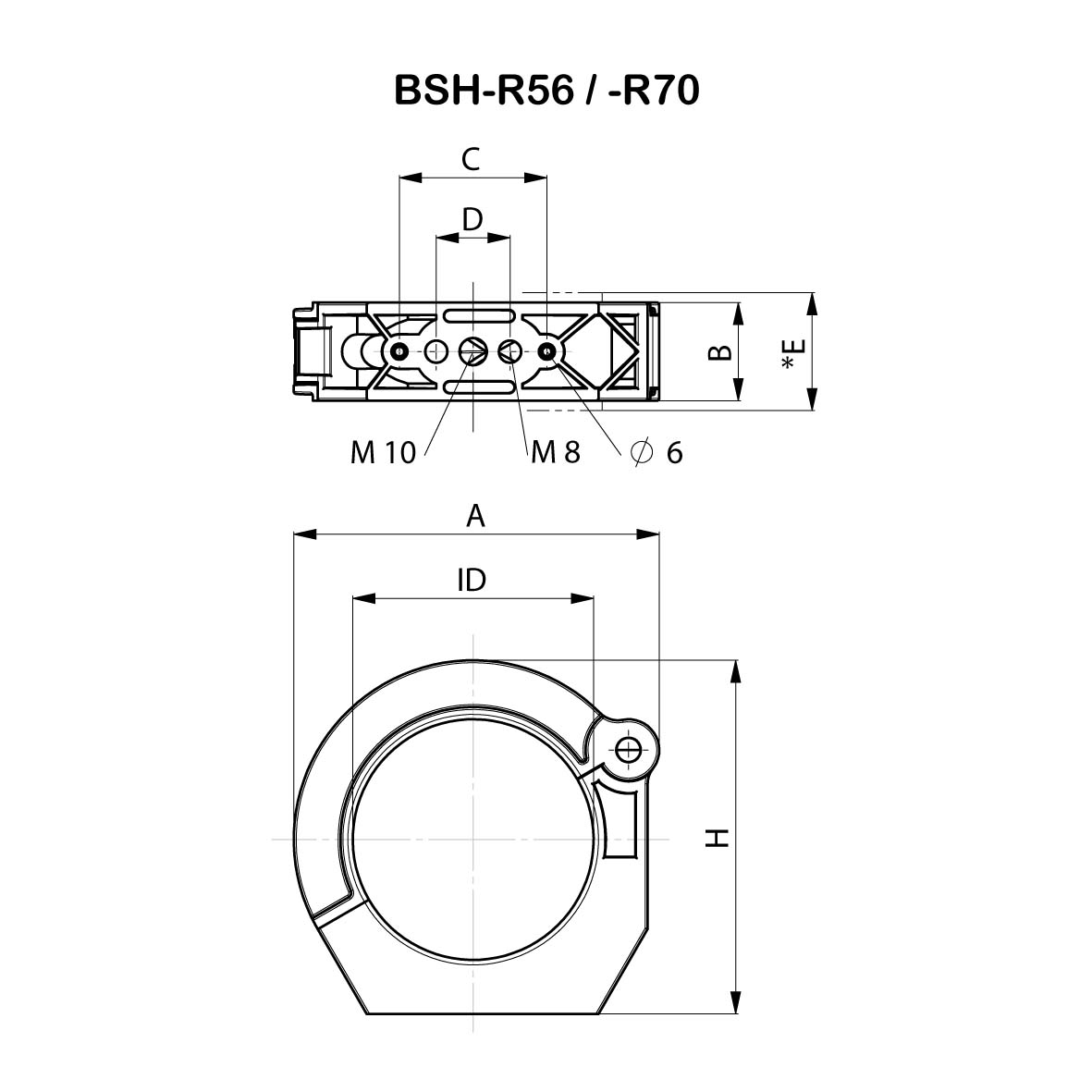

| 1410454 | BSH-R56 | BGN-S56G/BGN-R56 | 112.5 | 30 | 60 | 30 | 109.5 | 38 | 75.5 | 20 |
| 1410455 | BSH-R70 | BGN-R70G/BGN-R70 | 149 | 40 | 60 | 30 | 144 | 45 | 98 | 20 |
Information_Klikseal:
Tube clamp for use in automation applications for guiding or fixing conduits.

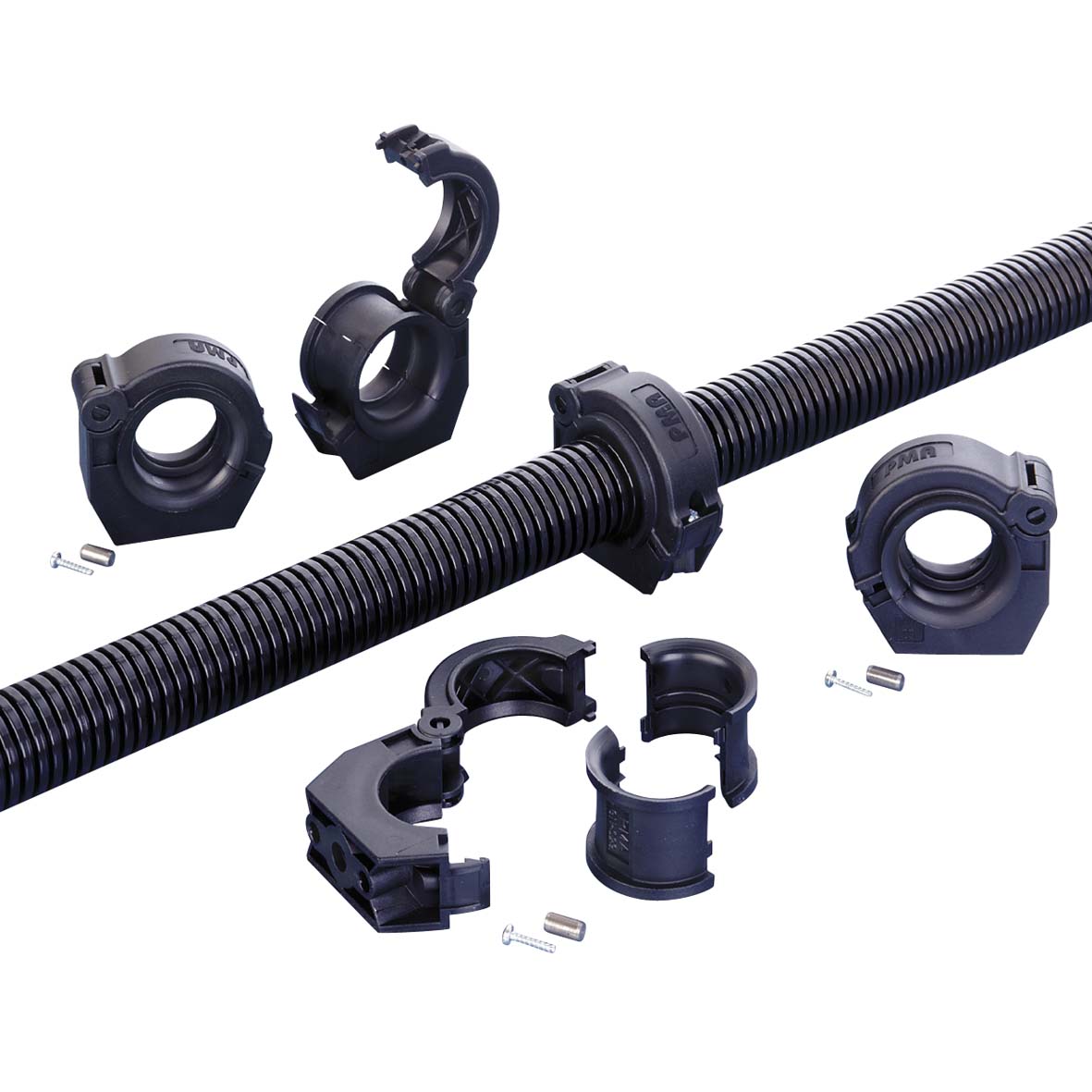

Tube clamp BSH to be used in combination with standard half-shells (slide inserts or strain relief inserts, (for example BGN-RXX/BGN-SXXX).
Material: high grade, specially formulated polyamide 6.
Single-piece, robust construction.
Easy installation.
To be used in combination with standard half-shells GN.
Space saving design allows optimum installation in automation applications.
Extends lifecycle of the cable pack due to reduced mechanical stress (avoiding torsion).
Free from halogens and cadmium.
Material:
Polyamide 6
Temperature range:
-40°C....+105°C
Colour:
Black RAL 9005
Halogen-Free:
Yes
