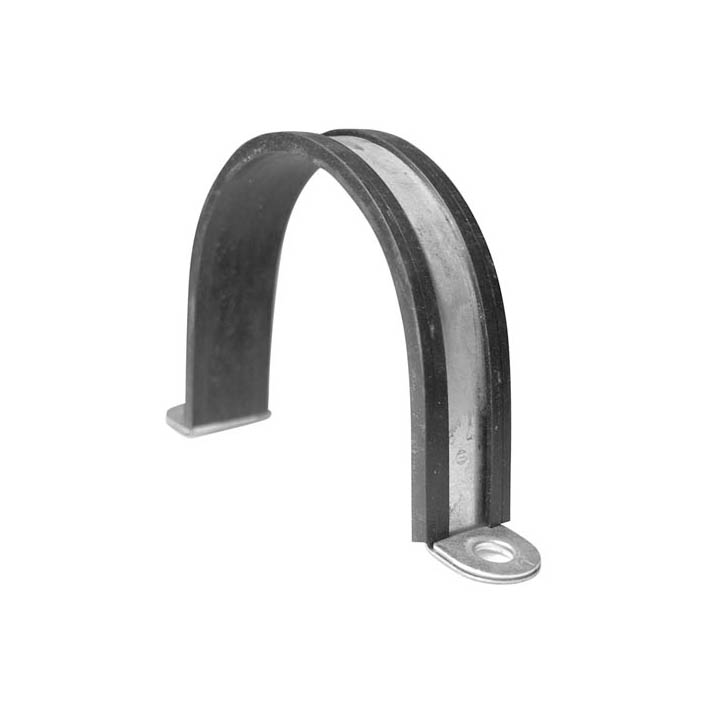

Tube Clamps, galvanized steel
- Galvanized steel.
- Elastomer profile (EPDM).
- For the mounting of static conduits.
- Elastomer profile, free from halogens.
- Smooth connection to PMAFLEX corrugated conduits.
- NW 36 (1)
- NW 48 (1)
- NW 56 (1)
- NW 70 (1)
- NW 95 (1)
- NW 125 (1)

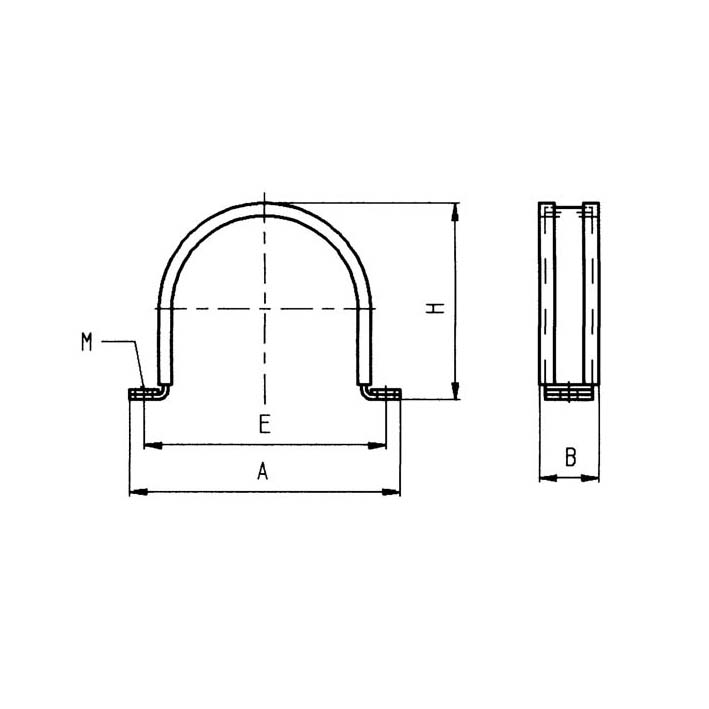

| E-number | Article no. | Conduit size | A mm | B mm | H mm | E mm | M | Pcs/pack |
| - | SGS-36 | NW 36 | 79.4 | 19,0 | 48,0 | 64.4 | 2 x M6 | 20 |
| - | SGS-48 | NW 48 | 91.4 | 19,0 | 58,0 | 76.4 | 2 x M6 | 20 |
| 1410223 | SGS-56 | NW 56 | 116 | 25 | 72,0 | 96 | 2 x M8 | 10 |
| 1410224 | SGS-70 | NW 70 | 128 | 25 | 85,0 | 108 | 2 x M8 | 10 |
| 1410226 | SGS-95 | NW 95 | 155 | 25 | 110,0 | 135 | 2 x M8 | 10 |
| 1410227 | SGS-125 | NW 125 | 195 | 25 | 152,0 | 175 | 2 x M8 | 10 |
Material:
Galvanized steel & EPDM
Temperature range:
-40°C....+120°C
Colour:
Black RAL 9005
Halogen-Free:
Yes
