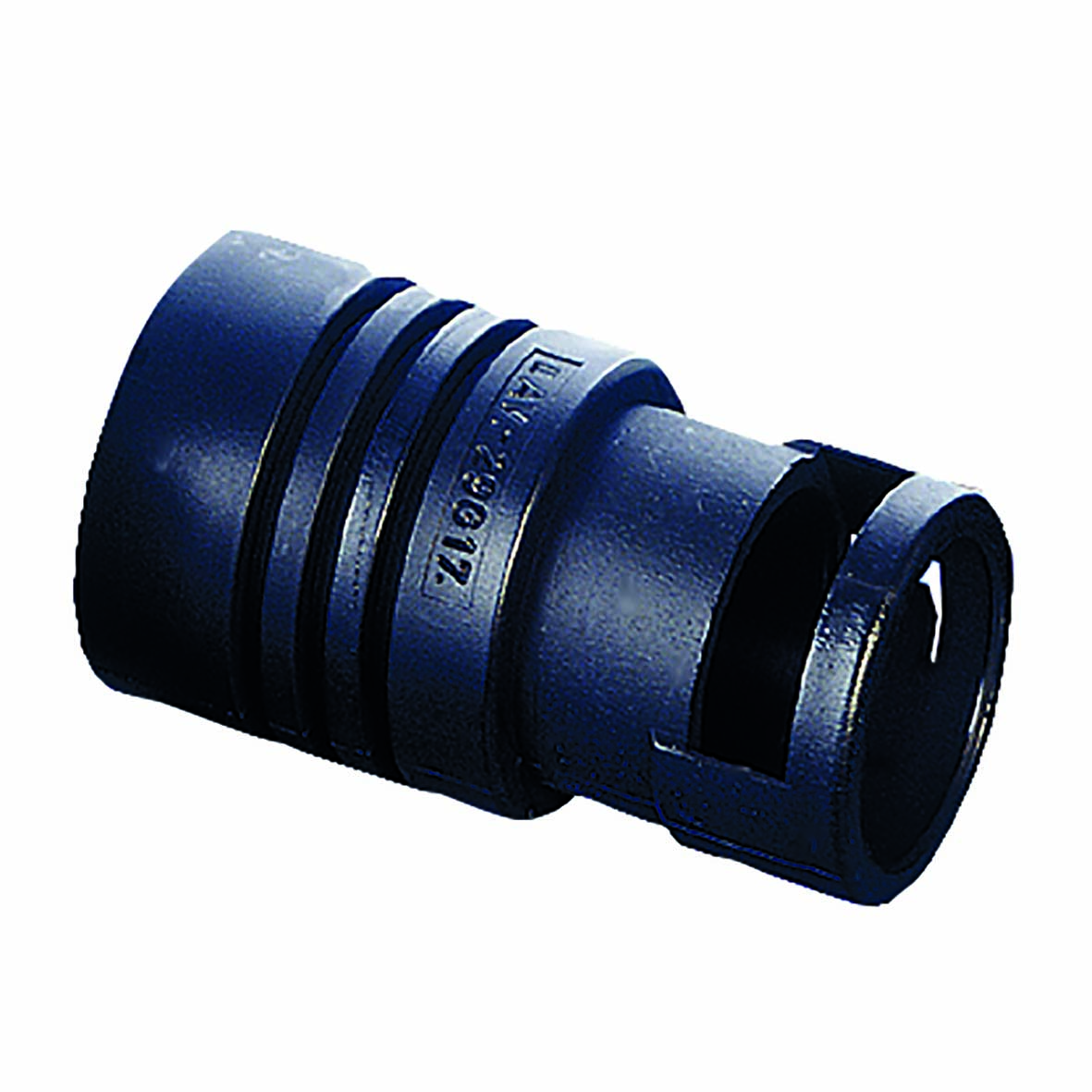

Conduit Adapter IP66
- For industry and machine building.
- High-grade, specially formulated polyamide 6.
- Very high impact resistance.
- Vibration-proof connection to PMA conduits.
- Easy installation: simply push the conduit in.
- High conduit pull-out strength.
- Can be easily re-opened with a screwdriver.
- Very good chemical properties.
- Free from halogens and cadmium.
- Fits both conduit profiles - fine (T) and coarse (G).
- 10 (4)
- 12 (3)
- 17 (2)
- 23 (1)
- 29 (1)
- 36 (1)

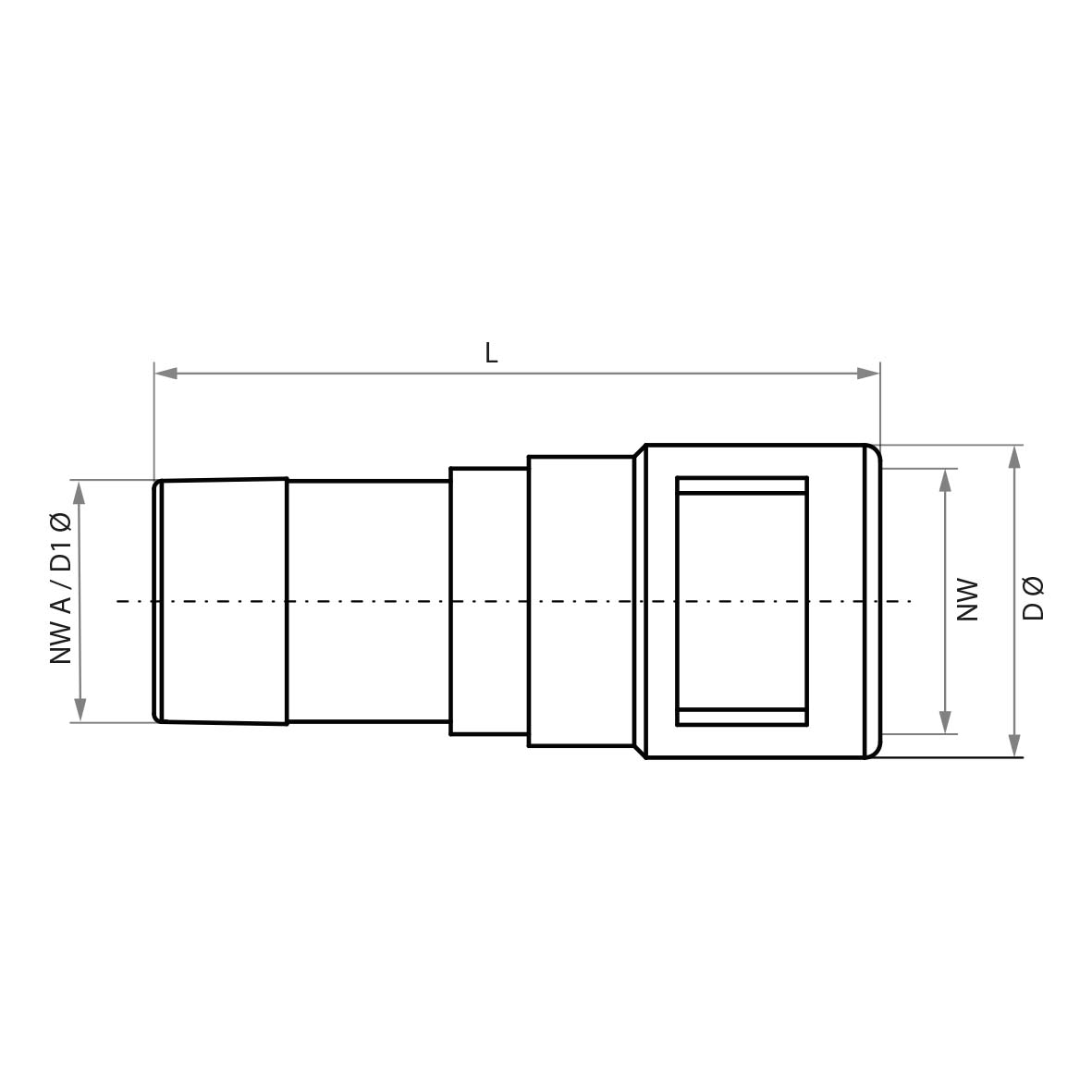

| Article no. | Conduit size | Suitable for conduit connector size NW A | L mm | D Ø mm | D1 Ø mm | Pcs/pack |
| BAVD-12/10GT | 10 | 12 | 46 | 20 | 15.5 | 50 |
| BAVD-17/10GT | 10 | 17 | 53 | 20 | 21 | 50 |
| BAVD-17/12GT | 12 | 17 | 54 | 23.5 | 21 | 50 |
| BAVD-23/10GT | 10 | 23 | 54 | 20 | 28.5 | 30 |
| BAVD-23/12GT | 12 | 23 | 53 | 23.5 | 28.5 | 30 |
| BAVD-23/17GT | 17 | 23 | 62 | 29.5 | 28.5 | 30 |
| BAVD-29/10GT | 10 | 29 | 56.5 | 20 | 34.5 | 30 |
| BAVD-29/12GT | 12 | 29 | 55 | 23.5 | 34.5 | 30 |
| BAVD-29/17GT | 17 | 29 | 61 | 29.5 | 34.5 | 30 |
| BAVD-29/23GT | 23 | 29 | 64 | 37 | 34 | 30 |
| BAVD-36/29GT | 29 | 36 | 81 | 44 | 43 | 20 |
| BAVD-48/36GT | 36 | 48 | 88.5 | 53.5 | 55 | 10 |
Material:
Polyamide PA6
Ingress protection:
IP66 stat. / IP54 dyn.
Temperature range:
-40°C....+105°C
Colour:
Black RAL 9005
Halogen-Free:
Yes
