Conduit Connection Splices IP66
- For industry and machine building.
- High-grade, specially formulated polyamide 6.
- Very high impact resistance.
- Vibration-proof connection to PMA conduits.
- Easy installation: simply push the conduit in.
- High conduit pull-out strength.
- Can be easily re-opened with a screwdriver.
- Very good chemical properties.
- Free from halogens and cadmium.
- Fits both conduit profiles - fine (T) and coarse (G).
- NW 12 (1)
- NW 17 (1)
- NW 23 (1)
- NW 29 (1)
- NW 36 (1)
- NW 48 (1)

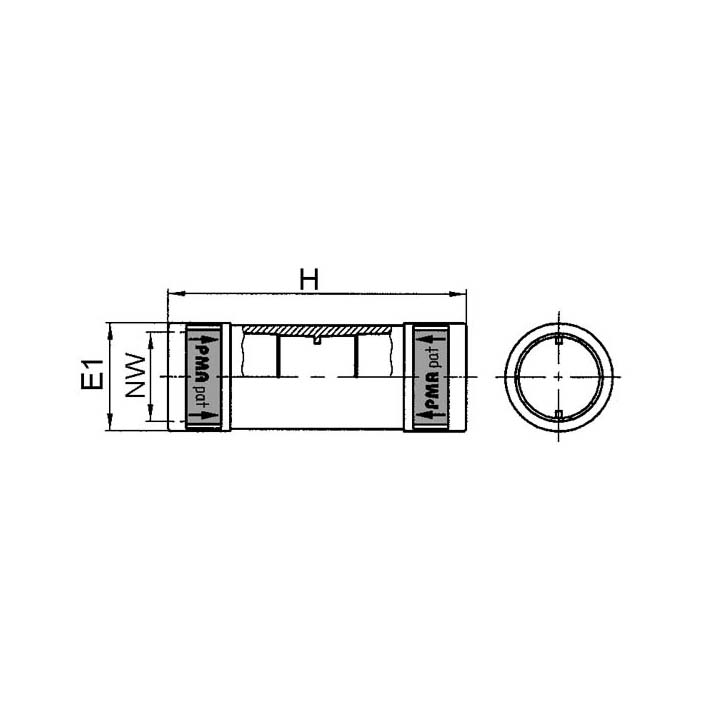

| Article no. | Conduit size | H mm | E1 mm | Pcs/pack |
| BVSGD-1212GT | NW 12 | 66 | 23.5 | 50 |
| BVSGD-1717GT | NW 17 | 89 | 30 | 50 |
| BVSGD-2323GT | NW 23 | 103 | 37 | 20 |
| BVSGD-2929GT | NW 29 | 100 | 44 | 20 |
| BVSGD-3636GT | NW 36 | 130 | 53 | 10 |
| BVSGD-4848GT | NW 48 | 136 | 61 | 10 |
Material:
Polyamide PA6
Ingress protection:
IP66 stat. / IP54 dyn.
Temperature range:
-40°C....+105°C
Colour:
Black RAL 9005
Test standard:
EN 60529 / DIN 40050 / IEC 60529
Flame class:
UL94 V0 (V2)
Glow wire test:
960°C acc. to EN 60695-2-10
Halogen-Free:
Yes
