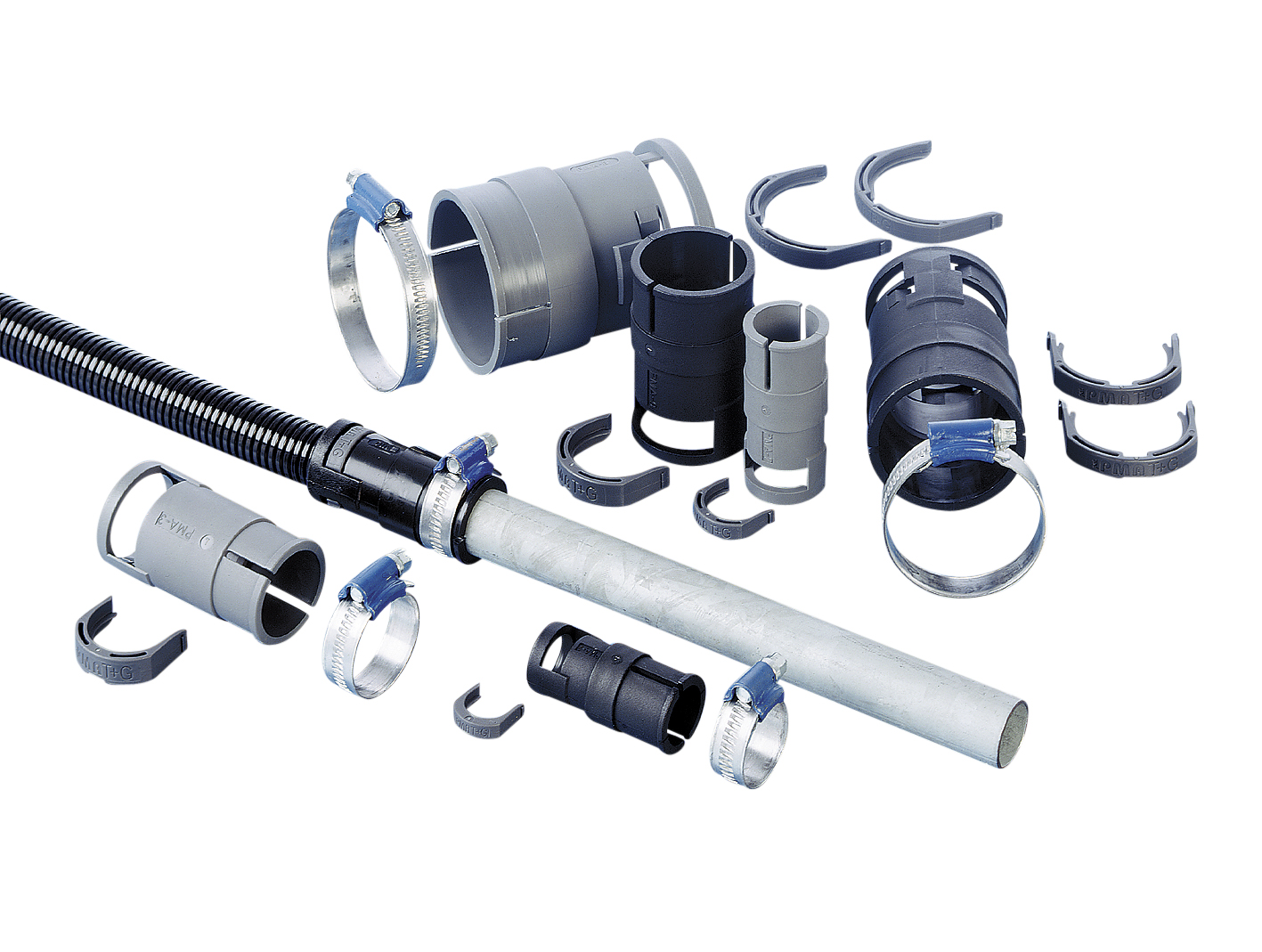

PG adapter to solid metal tube
Adapter for connection of solid metal tubes with flexible conduits
High-grade, specially formulated polyamide 6
High conduit pull-out strength
Very good chemical properties
Fits both conduit profiles - fine (T) and coarse (G)
Temperature: – 50 ... + 105 °C
Free from halogens and cadmium
Fits both conduit profiles - fine (T) and coarse (G)
- 12 (2)
- 17 (4)
- 23 (2)
- 29 (2)
- 36 (3)
- 48 (2)

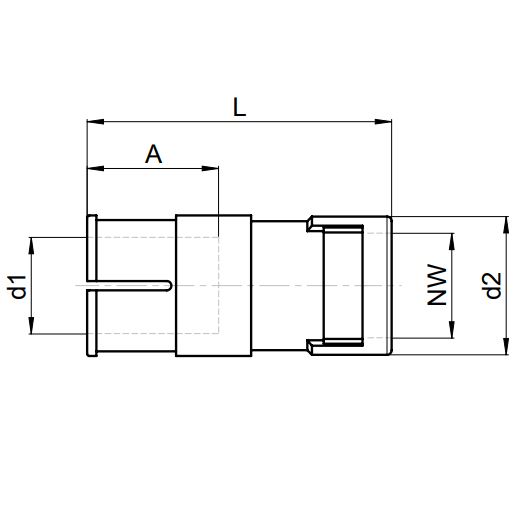

| Article no. | Description | Conduit size | L mm | A mm | Di1 mm | Di2 mm | Pcs/pack |
| BVNR-RE12 | PG11 | 12 | 54 | 25 | 18.5 | 26 | 50 |
| BVNR-RE12-24 | PG11 with jubilee clip | 12 | 54 | 25 | 18.5 | 26 | 50 |
| BVNR-RE1317 | PG13 | 17 | 65 | 28 | 20.4 | 30 | 50 |
| BVNR-RE1317-28 | PG13 with jubilee clip | 17 | 65 | 28 | 20.4 | 30 | 50 |
| BVNR-RE17 | PG16 | 17 | 65 | 28 | 22.5 | 30 | 50 |
| BVNR-RE17-28 | PG16 with jubilee clip | 17 | 65 | 28 | 22.5 | 30 | 50 |
| BVNR-RE23 | PG21 | 23 | 71 | 30 | 28.3 | 37 | 30 |
| BVNR-RE23-32 | PG21 with jubilee clip | 23 | 71 | 30 | 28.3 | 37 | 30 |
| BVNR-RE29 | PG29 | 29 | 70.5 | 30 | 37 | 45 | 20 |
| BVNR-RE29-44 | PG29 with jubilee clip | 29 | 70.5 | 30 | 37 | 45 | 20 |
| BVNR-RE36 | PG36 | 36 | 84.5 | 30 | 47 | 56 | 20 |
| BVNR-RE36-50 | PG36 with jubilee clip | 36 | 84.5 | 30 | 47 | 56 | 20 |
| BVNR-RE48 | PG48 | 48 | 90 | 35 | 59.3 | 67.5 | 10 |
| BVNR-RE48-65 | PG48 with jubilee clip | 48 | 90 | 35 | 59.3 | 67.5 | 10 |
| BVNR-RE3836 | 11/2" | 36 | 130 | 76 | 38 | 53.5 | 10 |
Material:
Polyamide 6
Temperature range:
-50°C....+105°C
Colour:
Black
