Y-connection IP66
- For industry and machine building.
- High-grade, specially formulated polyamide 6.
- Very high impact resistance.
- Vibration-proof connection to PMA conduits.
- Easy installation: simply push the conduit in.
- High conduit pull-out strength.
- Can be easily re-opened with a screwdriver.
- Very good chemical properties.
- Free from halogens and cadmium.
- Fits both conduit profiles - fine (T) and coarse (G).
- 1 x NW 10 + 2 x NW 7 (1)
- 1 x NW 12 + 2 x NW 10 (1)
- 1 x NW 17 + 2 x NW 12 (1)
- 1 x NW 23 + 2 x NW 17 (1)
- 1 x NW 29 + 2 x NW 23 (1)
- 1 x NW 36 + 2 x NW 29 (1)
- 1 x NW 48 + 2 x NW 36 (1)

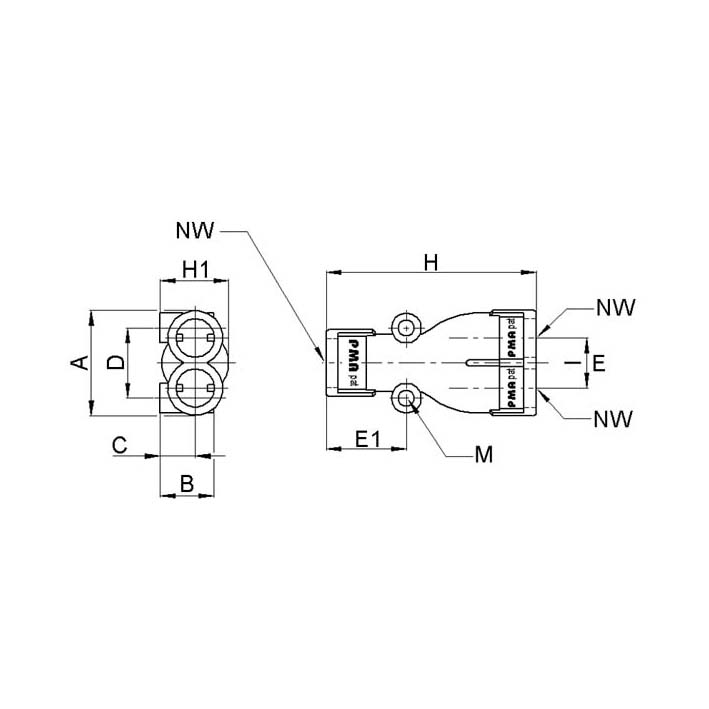

| E-number | Article no. | Conduit size | A mm | B mm | C mm | D mm | H mm | H1 mm | E mm | E1 mm | M | Pcs/pack |
| 1410670 | BVYD-100707GT | 1 x NW 10 + 2 x NW 7 | 32 | 16 | 11 | 21 | 63 | 21 | 15 | 24 | 2 x M4 | 20 |
| 1410671 | BVYD-121010GT | 1 x NW 12 + 2 x NW 10 | 39 | 18 | 12 | 24 | 69 | 24 | 19 | 27 | 2 x M4 | 20 |
| 1410672 | BVYD-171212GT | 1 x NW 17 + 2 x NW 12 | 46 | 22 | 15 | 32 | 80 | 30 | 22 | 34 | 2 x M5 | 20 |
| 1410673 | BVYD-231717GT | 1 x NW 23 + 2 x NW 17 | 60 | 29 | 19 | 42 | 98 | 38 | 30 | 38 | 2 x M6 | 20 |
| 1410674 | BVYD-292323GT | 1 x NW 29 + 2 x NW 23 | 74 | 33 | 23 | 48 | 109 | 45 | 37 | 37 | 2 x M6 | 10 |
| 1410675 | BVYD-362929GT | 1 x NW 36 + 2 x NW 29 | 87 | 36 | 27 | 58 | 130 | 54 | 43 | 50 | 2 x M6 | 5 |
| 1410676 | BVYD-483636GT | 1 x NW 48 + 2 x NW 36 | 103 | 48 | 34 | 70 | 144 | 68 | 50 | 50 | 2 x M6 | 5 |
Material:
Polyamide PA6
Ingress protection:
IP66 stat. / IP54 dyn.
Temperature range:
-40°C....+105°C
Colour:
Black RAL 9005
Test standard:
EN 60529 / DIN 40050 / IEC 60529
Flame class:
UL94 V0 (V2)
Glow wire test:
960°C acc. to EN 60695-2-10
Halogen-Free:
Yes
