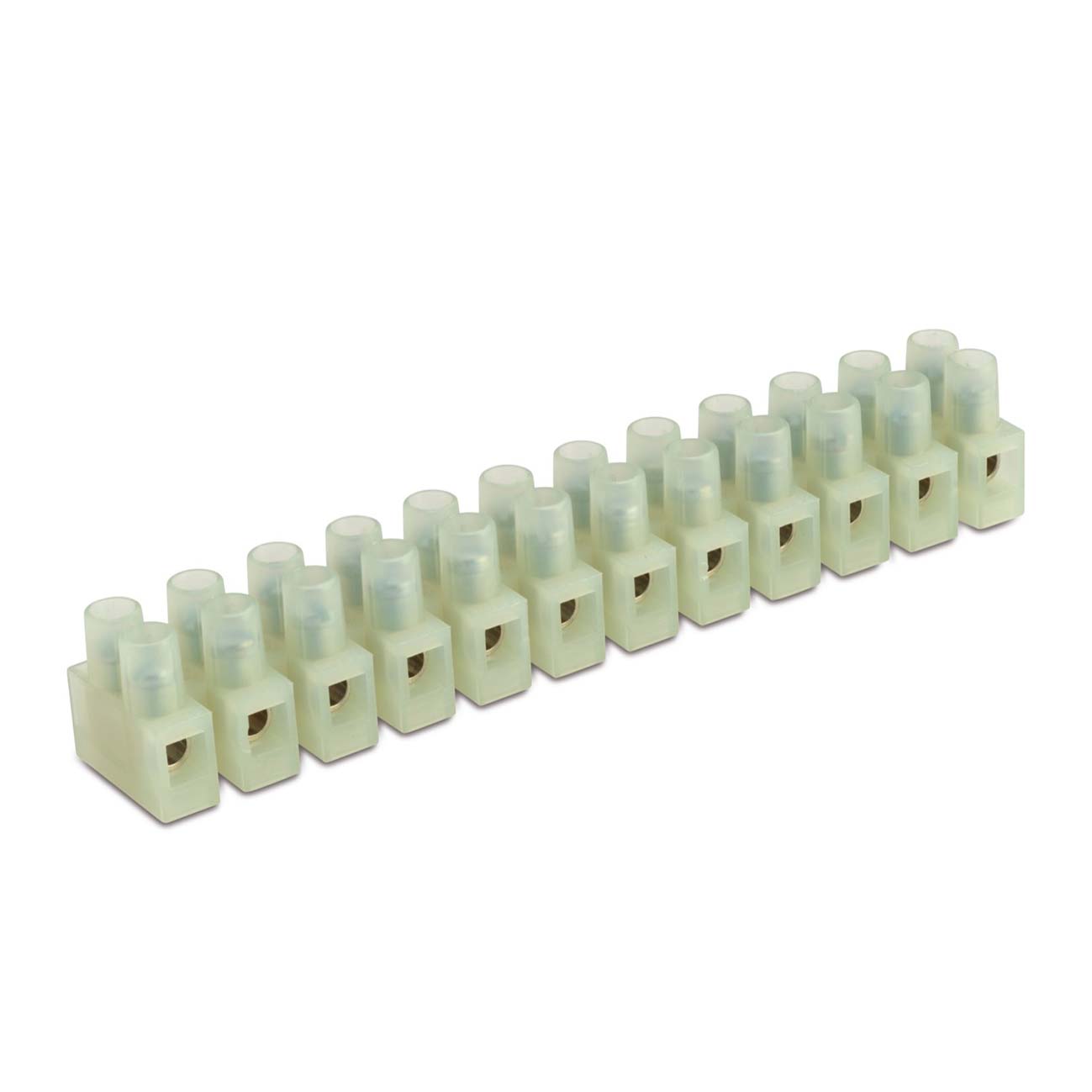

Connector Strip 12-pole with raised base and wire protection
- 24 (2)
- 23 (1)
- 41 (1)

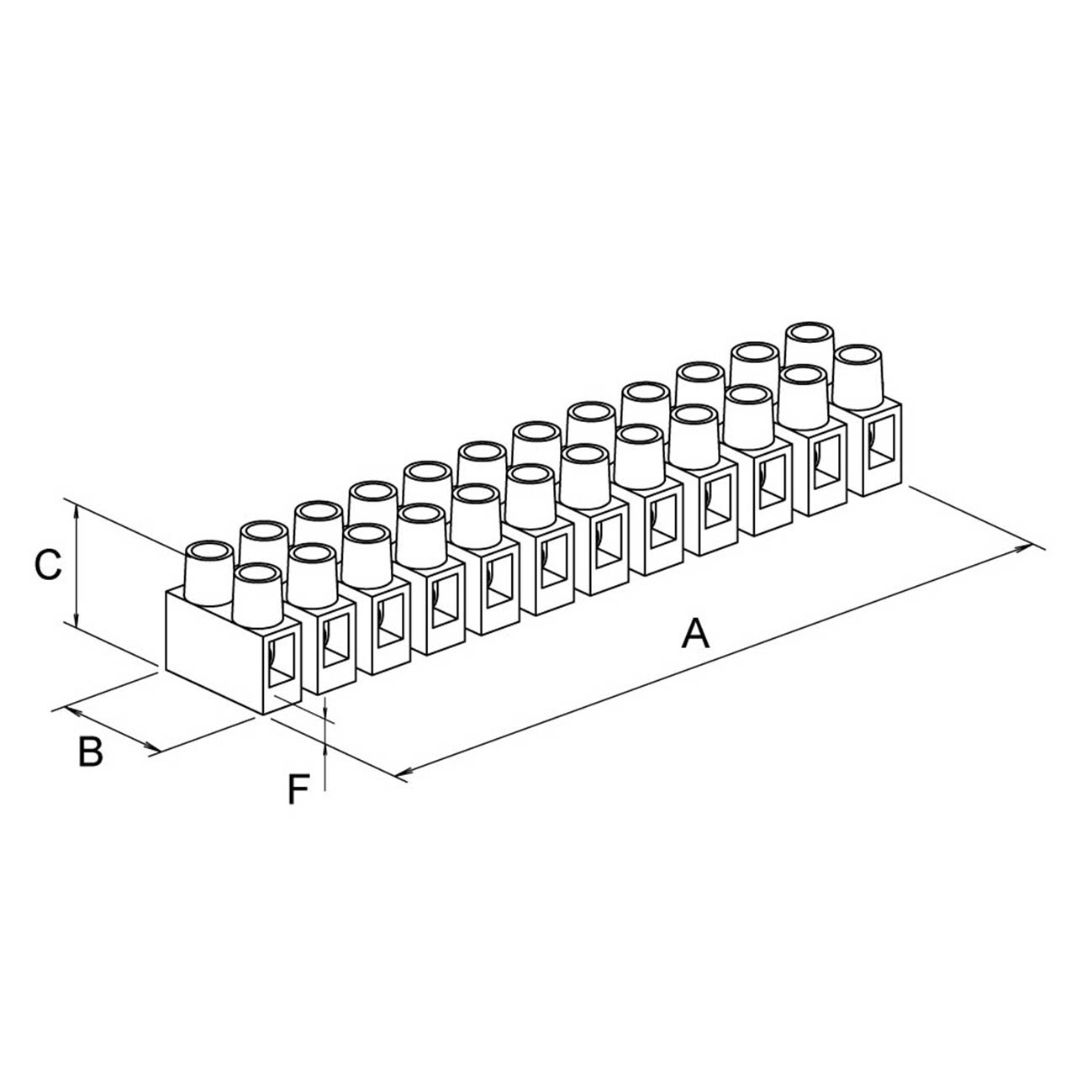

| E-number | Rated current (A) | Rated voltage | Cable cross section | A mm | B mm | C mm | F mm | Pcs/pack |
| 1441251 | 24 | 230/380 V | 1-2,5 mm² | 93.5 | 15,2 | 15,3 | 3 | 50 |
| 1441252 | 24 | 400 V | 1-2,5 mm² | 117 | 20,5 | 17,5 | 3 | 50 |
| 1441253 | 23 | 400 V | 1,5-4 mm² | 140 | 23 | 20,7 | 4 | 50 |
| 1441254 | 41 | 400 V | 2,5-6 mm² | 174 | 25,3 | 25,7 | 5,5 | 10 |
Material Terminal housing:
Polyamide PA66
Material insert:
Brass nickel plated
Material Screws:
Galvanized steel
Max operating temperature:
125°C
