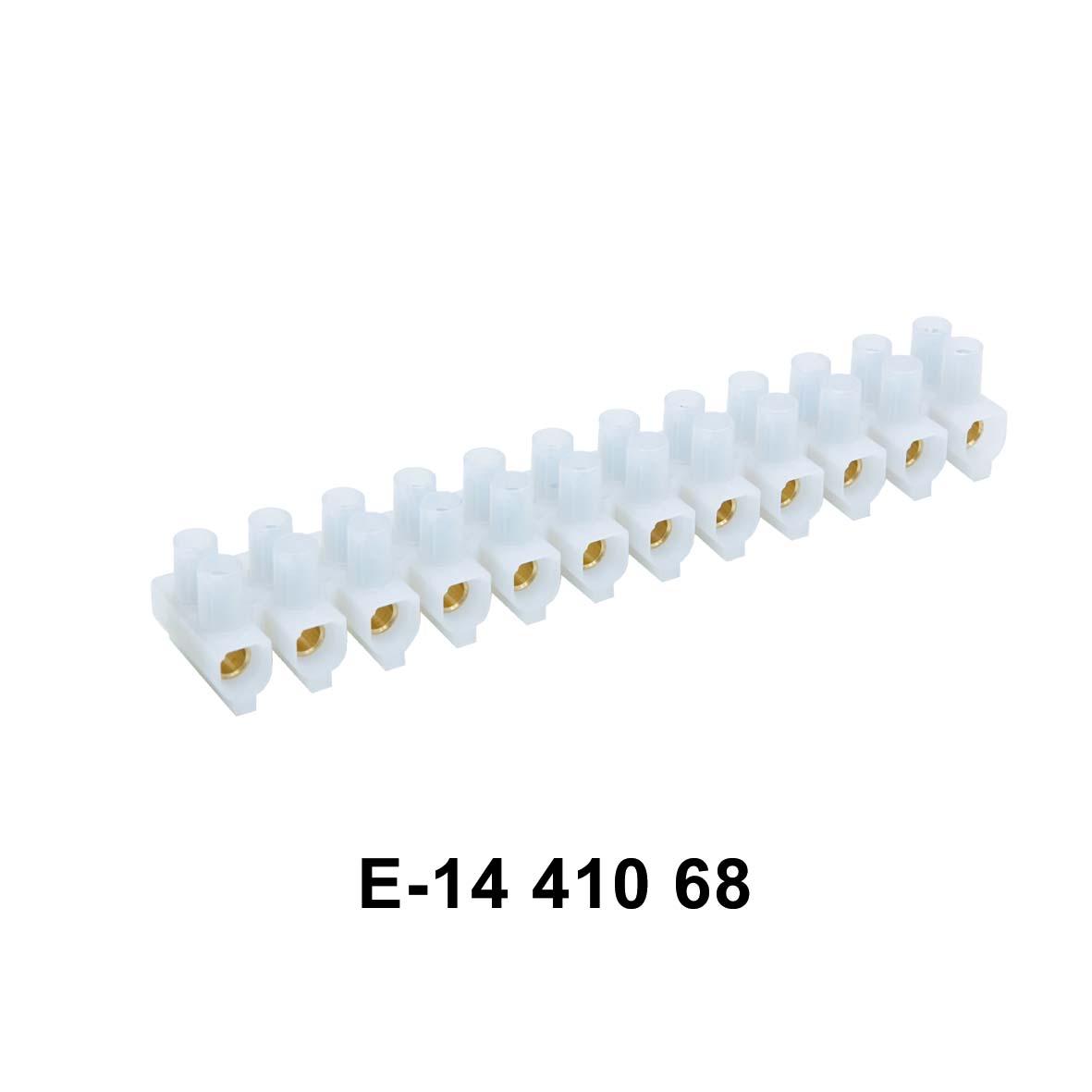

Connector Strip Polyamide 12-pole with raised base

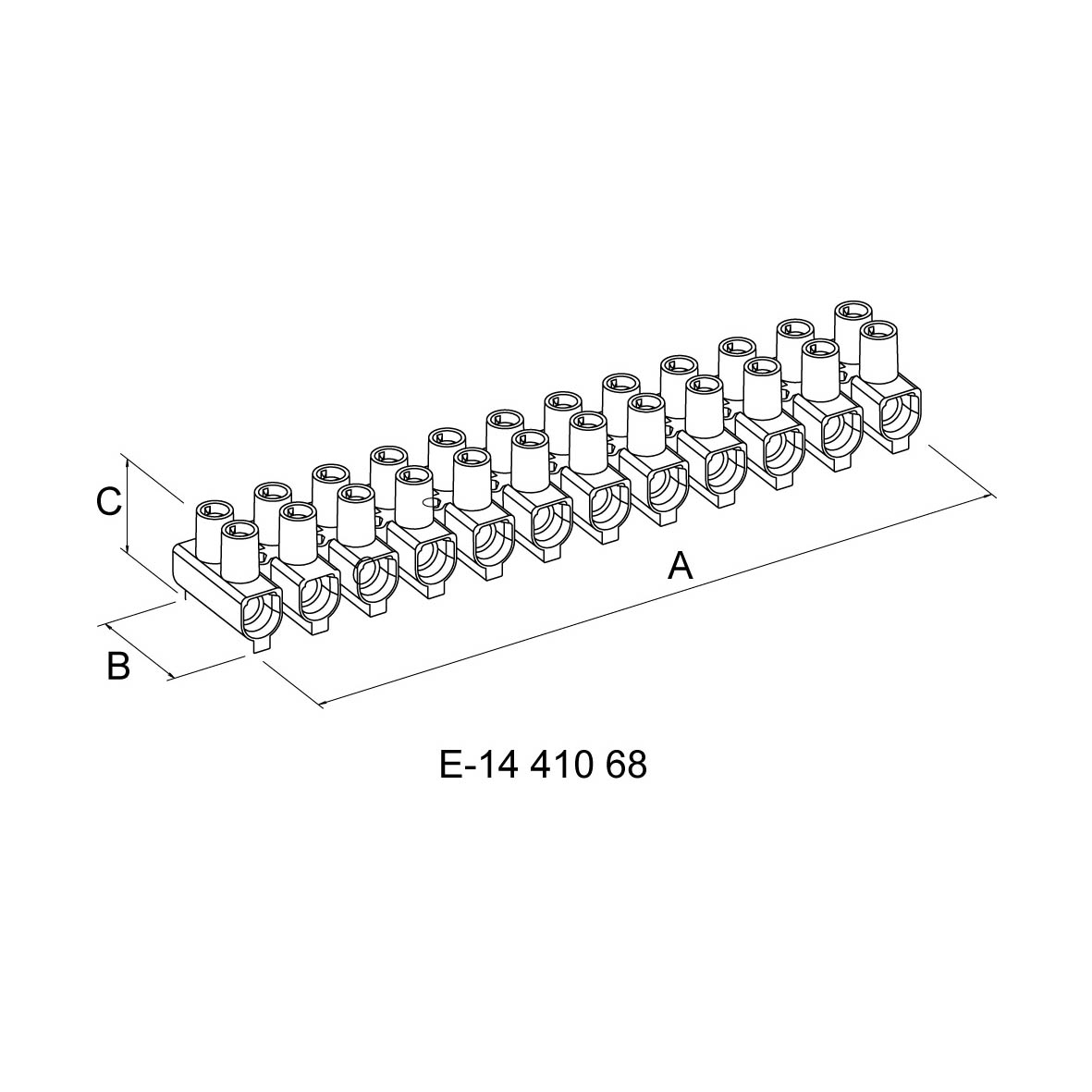

| E-number | Cable cross section | A mm | B mm | C mm | F mm | Pcs/pack |
| 1441068 | 10-25 mm² | 187.3 | 28 | 30 | - | 1 |
Rated voltage:
450V / 750V (10-25mm²)
Material Terminal housing:
Polyamide PA66
Material insert:
Galvanized brass
Material Screws:
Galvanized steel
Temperature range:
T85
Testing temperature EN 60998:
T+30°C
Colour:
Transparent
Halogen-Free:
Yes
