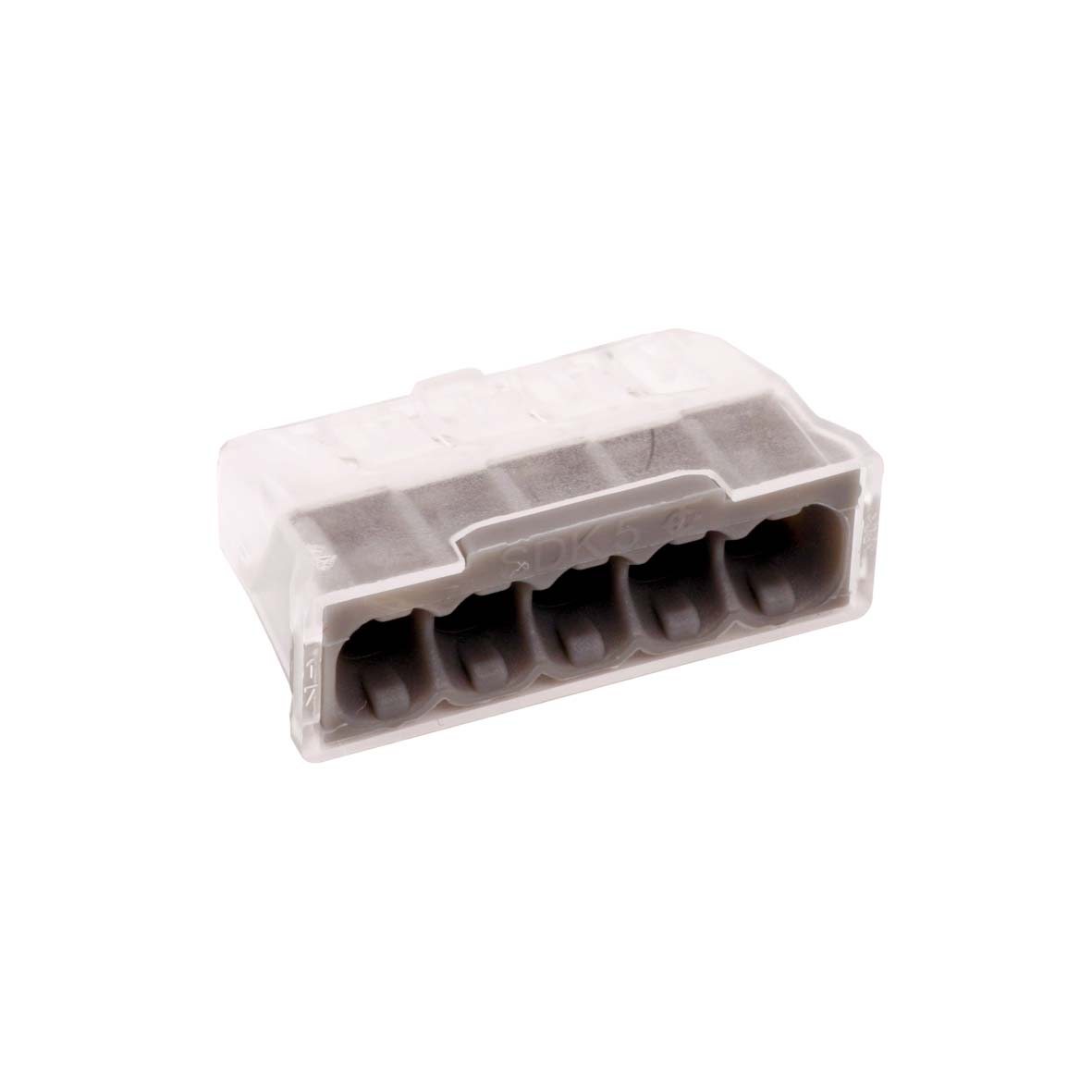

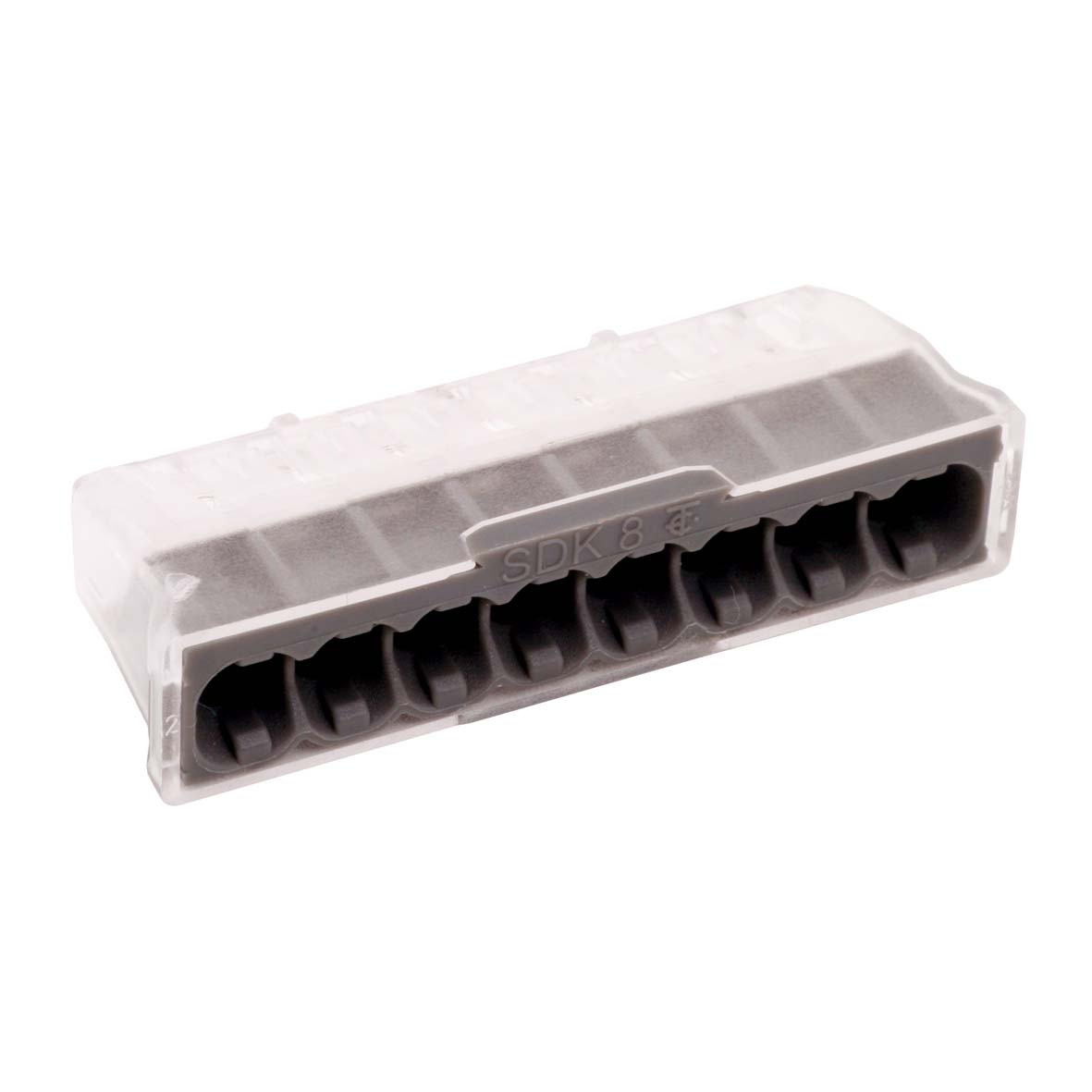

SDK Screwless Junction Box Connector
- Clamping range: 0.5 mm² –2.5 mm² for rigid single-core conductors. 1.5 mm² - 2.5 mm² for rigid multi-core conductors.
- A number of wire cross sections can be combined in one terminal.
- Highly transparent viewing window for visual inspection of the clamping points means greater safety and reliability during installation.
- Easy to plug in – high pull-out force.
Rated voltage:
Europe 450 V / USA 600V
Rated current:
Europe 24 A / USA 20 A
Material Terminal housing / Cover:
Polycarbonat / Polyamide
Material Insert / Spring:
Copper / Stainless steel
Cable cross section:
Europe 0,5 - 2,5 mm² (solid wires), 1,5 - 2,5 mm² (rigid stranded wires) / USA AWG 20-14
Wire skinning length:
8 - 9 mm
Type of conductor:
Rigid single-core and multi-core wires
Test opening:
Phase tester and testprobe (max. Ø 2 mm)
Max. ambient temperature:
Europe T90 / USA 105°C
Halogen-Free:
Yes
