CABseal Grommets
Grommets with sealing lips for cables from 3 mm to 33 mm

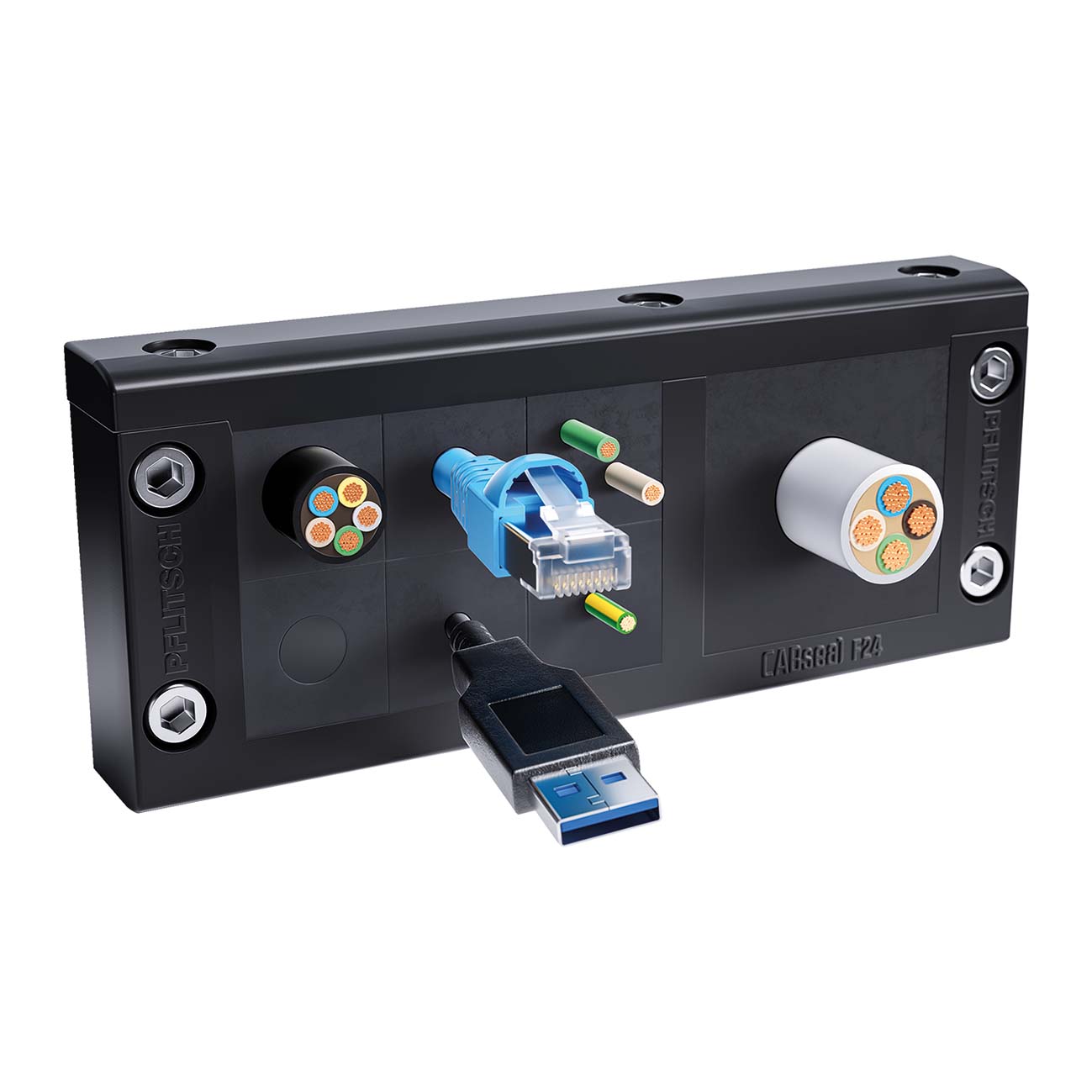

Assemble individually as you need it: With CABseal, all grommets can be freely positioned in the frames.
The integrated elastomer seal seals the frame reliably up to IP 66 – no other seals are required.
This naturally applies to both single and multiple grommets.

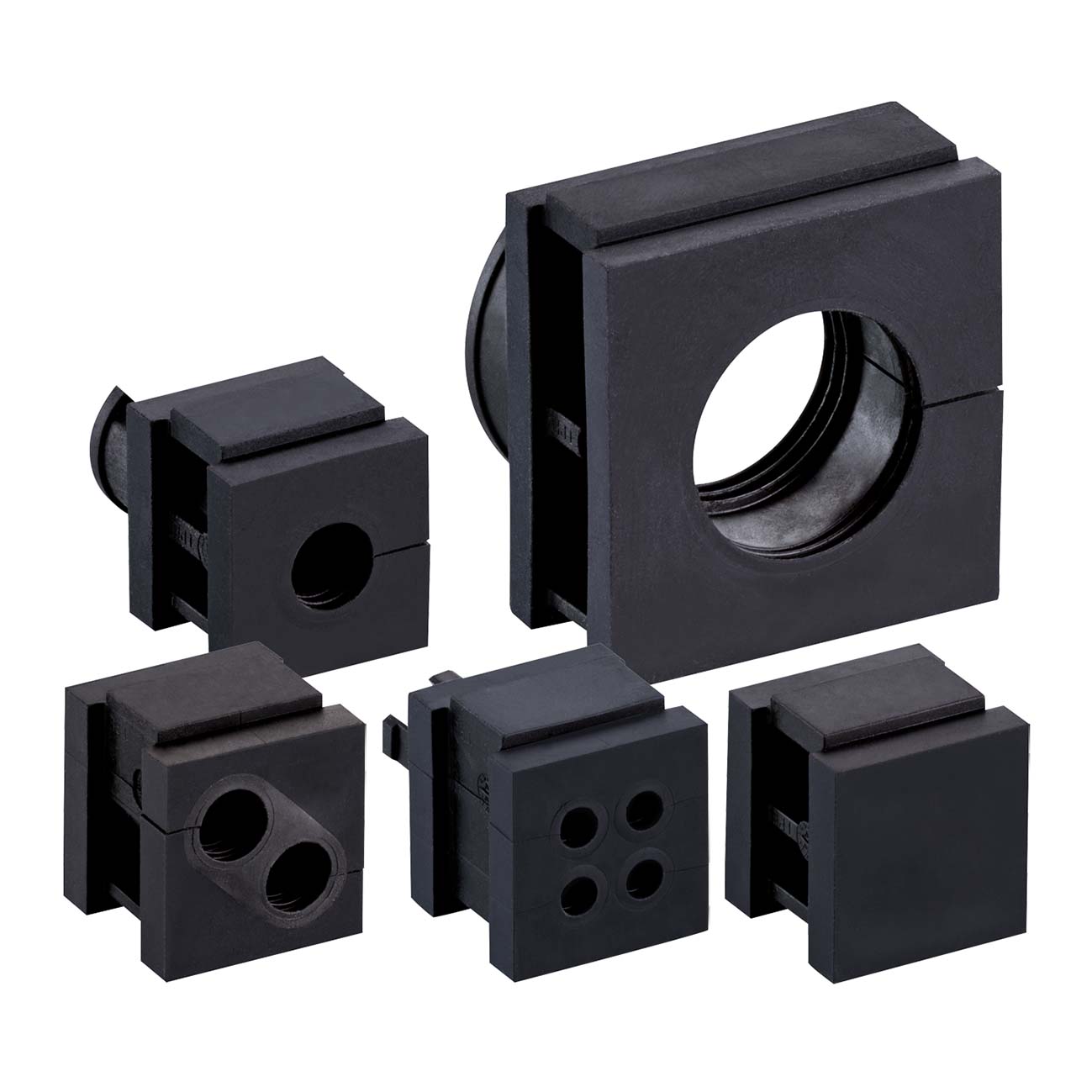

Choose from a wide range of cable grommets
The ideal grommet for every cable diameter. The small GS grommets fit in one grommet field while
the large GL grommets require four fields.

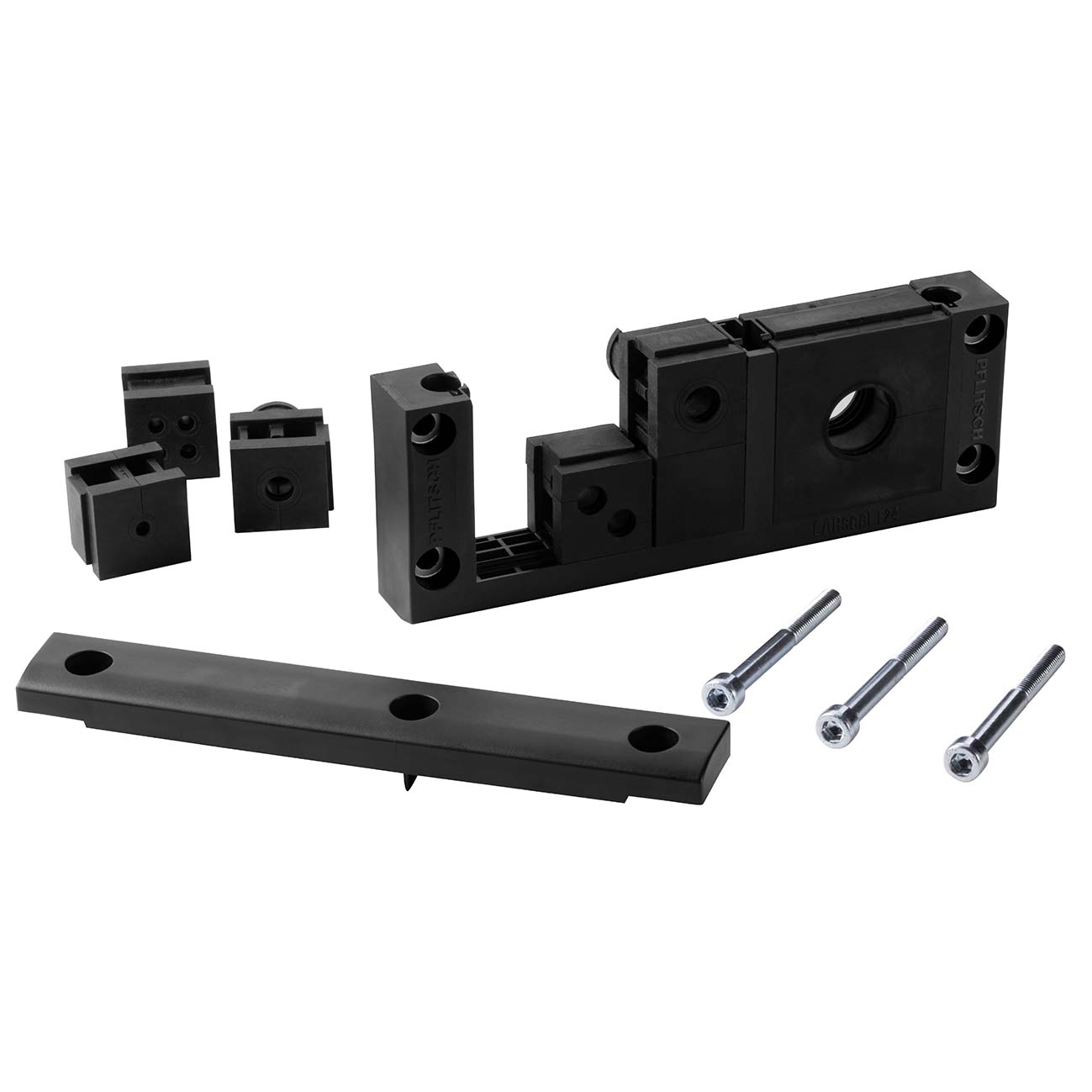

Grommets can be freely positioned in the frame, one large insert (GL) can be used instead of four small inserts (GS). See the positioning examples.
Choose from a wide range of cable grommets.
- Reliable sealing of cables with IP 66 protection
- Blind grommets and plugs also available
- Spring/groove contour of the cable grommet prevents incorrect assembly
- Flexible sealing lip geometry allows compensation of cable tolerances
- Strain relief can be positioned towards the inside or outside
- For cable cross-sections from 3 to 16 mm (GS) and from 16 to 33 mm (GL)
- Double/multiple-cable grommets from 4 to 8 mm (GS)
Material:
TPE (UL94: V0)
Ingress protection:
IP66 & UL Typ 4X (UL: indoor use only)
Temperature range:
-40°C....+100°C
Colour:
Black
