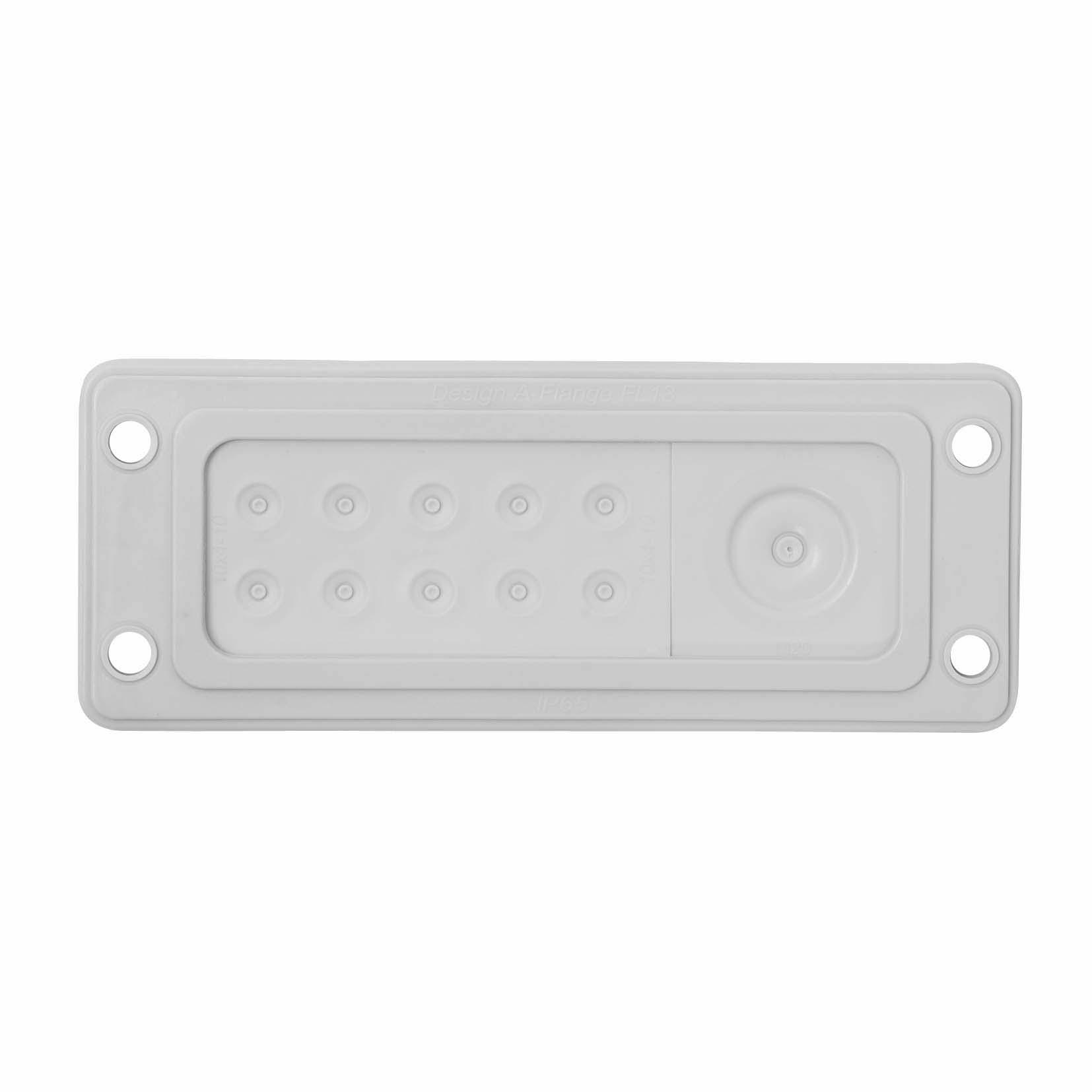

Design-A-Flange Prefabricated flanges FL13 RAL 7035
- ”Free placement” of openings
- Interchangeable inserts. Possible to change configuration later on.
- KLIKSEAL® or cable gland installation in the flange.
- ”Pop-out” membranes.
- IP65 (Integrated sealing)
- FL13 (1)
- 1x 6-13mm, 10x 4-10mm (1)
| E-number | Article no. | Description | Size | For cable Ø mm | L1 mm | H mm | L2 mm | Pcs/pack |
| 2665405 | 6-13 10X4-10 G | Flange FL13 1x M20 + 10x 4-10mm | FL13 | 1x 6-13mm, 10x 4-10mm | 134 | 6,5 | 52 | 10 |
Information_Klikseal:
(1) Unstressed material.
Material:
Fiberglass re-inforced Polypropylene and TPE - UL listed material
Ingress protection:
IP65
Temperature range:
-20ºC....+125ºC (1)
Colour:
Lightgrey RAL 7035
Test standard:
EN IEC 60670-1:2021 + A11
Semko report:
2300073
Halogen-Free:
Yes
