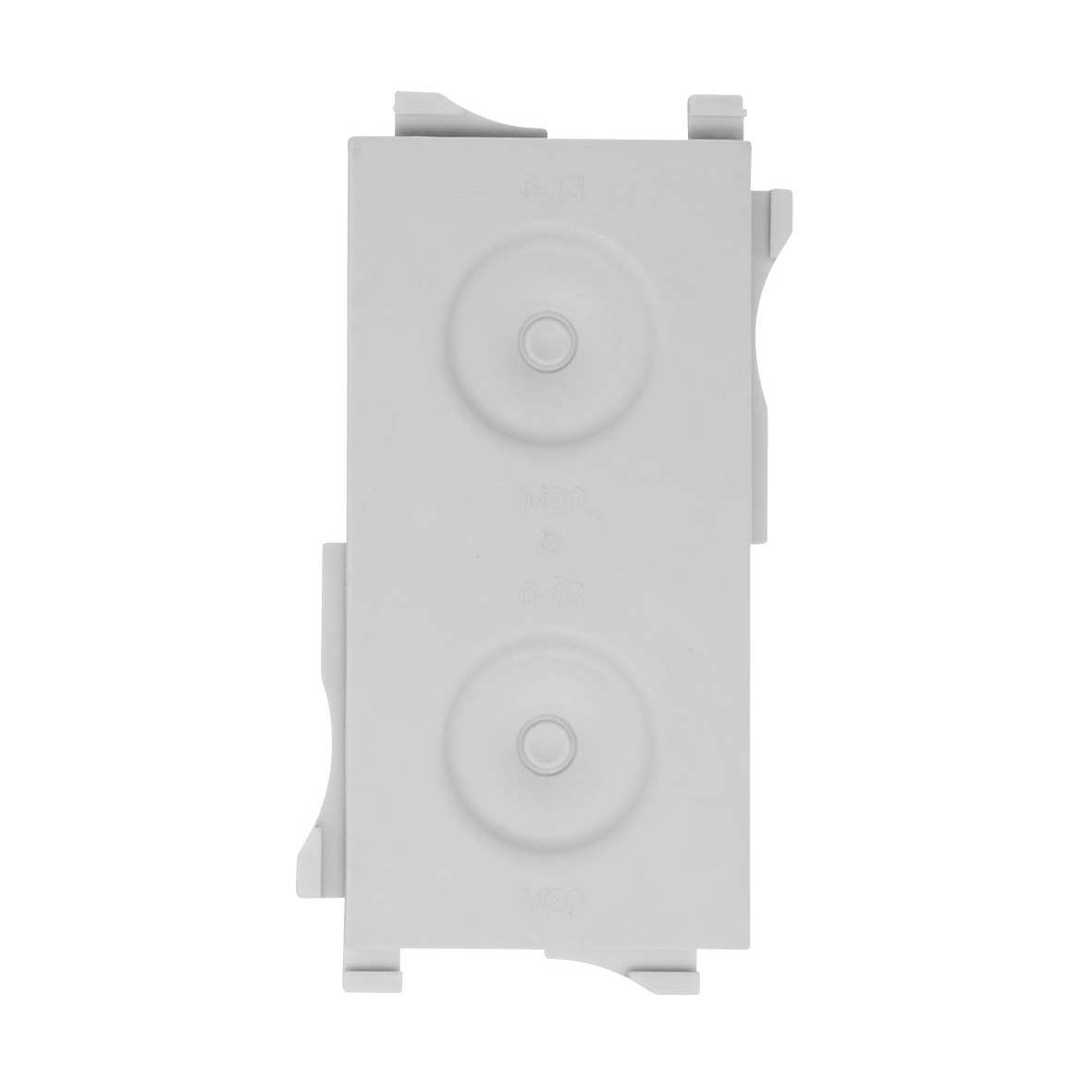

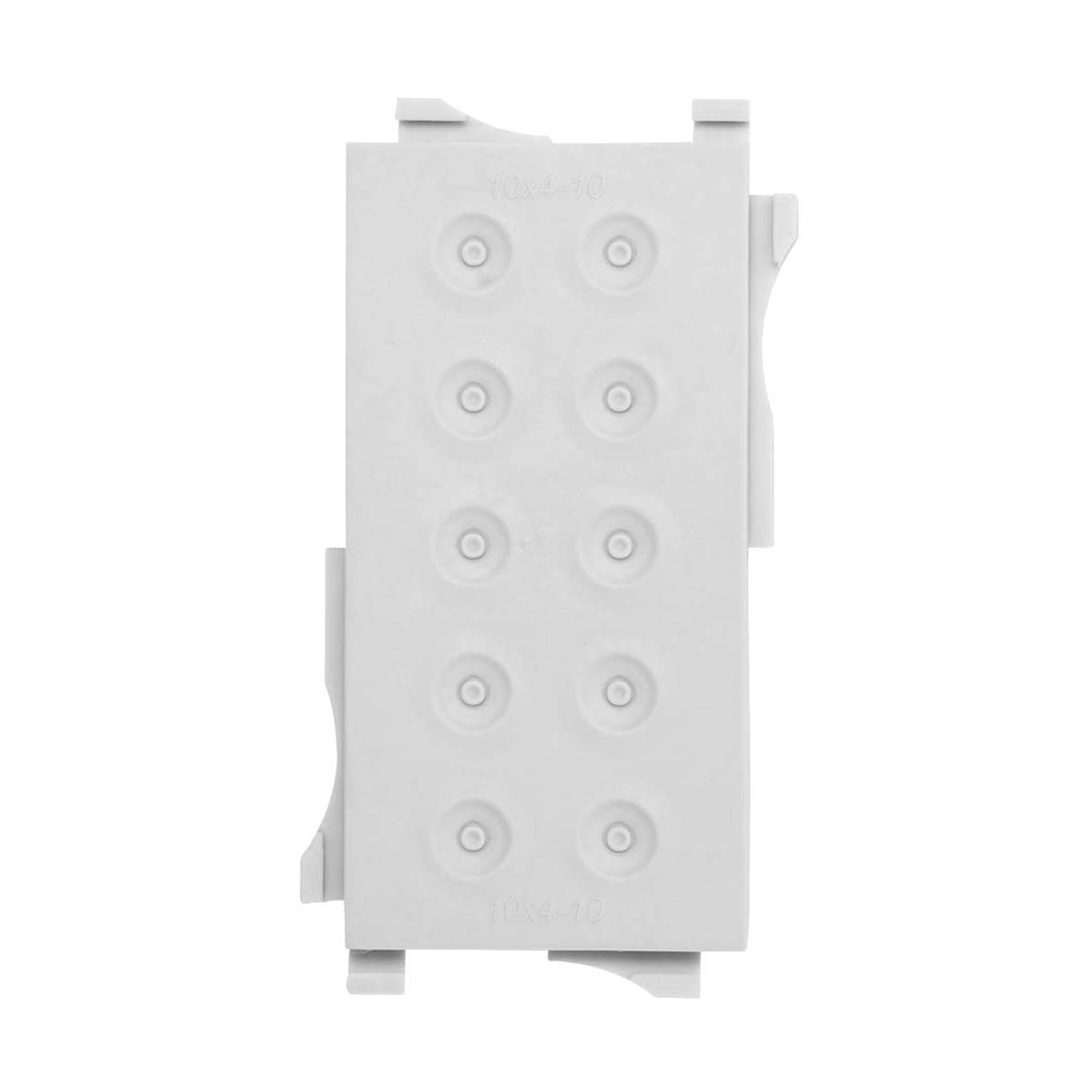

Design-A-Flange Inserts 68x34 for FL21 RAL 7035
- ”Free placement” of openings
- Interchangeable inserts. Possible to change configuration later on.
- KLIKSEAL® or cable gland installation in the flange.
- ”Pop-out” membranes.
- IP65 (Integrated sealing)
Information_Klikseal:
(1) Unstressed material.
Material:
Fiberglass re-inforced Polypropylene and TPE - UL listed material
Ingress protection:
IP65
Temperature range:
-20ºC....+125ºC (1)
Colour:
Lightgrey RAL 7035
Test standard:
EN IEC 60670-1:2021 + A11
Semko report:
2300073
Halogen-Free:
Yes
