Cable and Conduit Sealing systems in fire-protection walls

  • For wall entry, wall outlet and penetration, for EI90 fire-protection walls
  • Quick and easy to install and can even be superimposed on cables and pipes retrospectively
  • without use of fire-protection foam or putty
  • ETA approval
  • Halogen-free

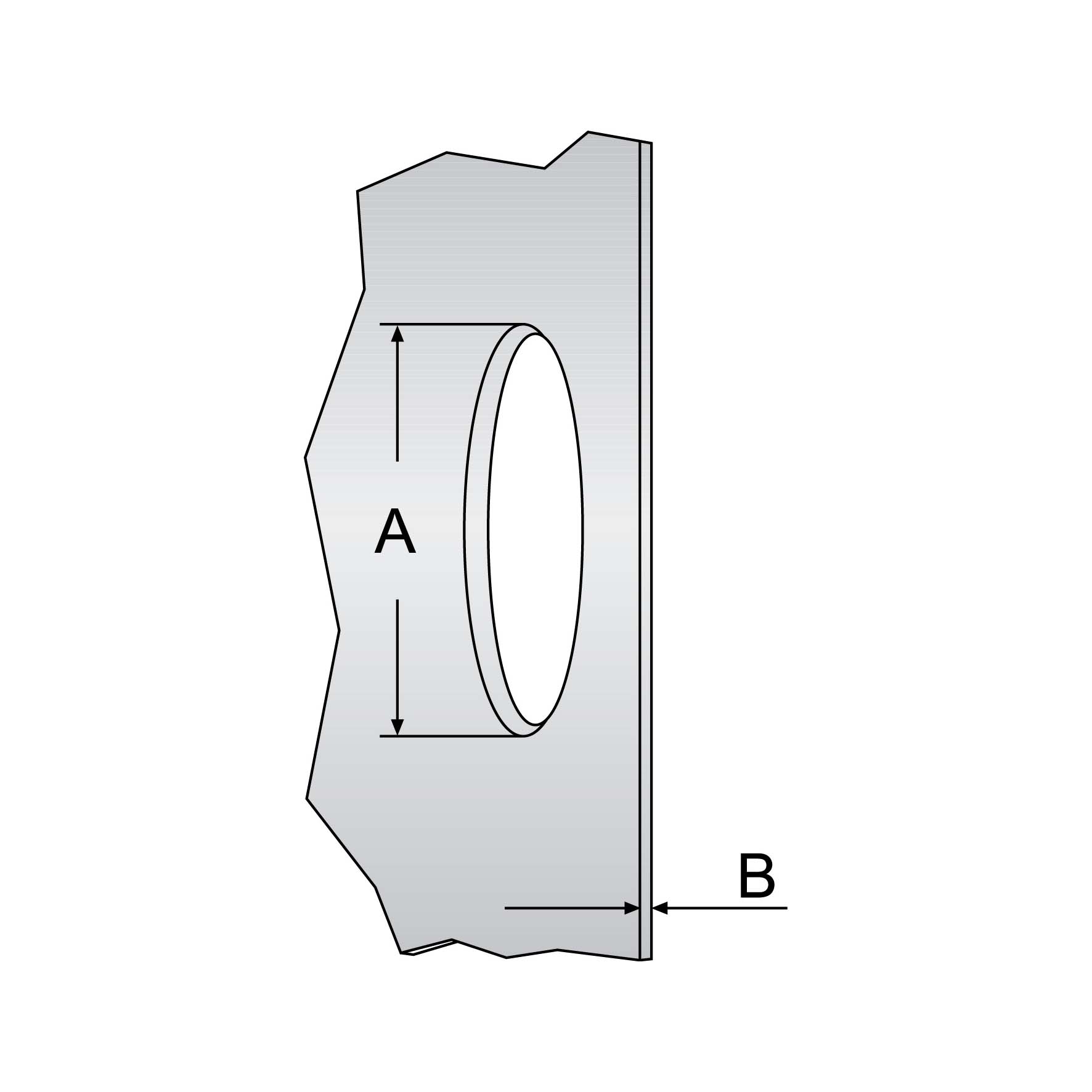

E-numberArticle no.DescriptionHole fittingB mmPcs/pack

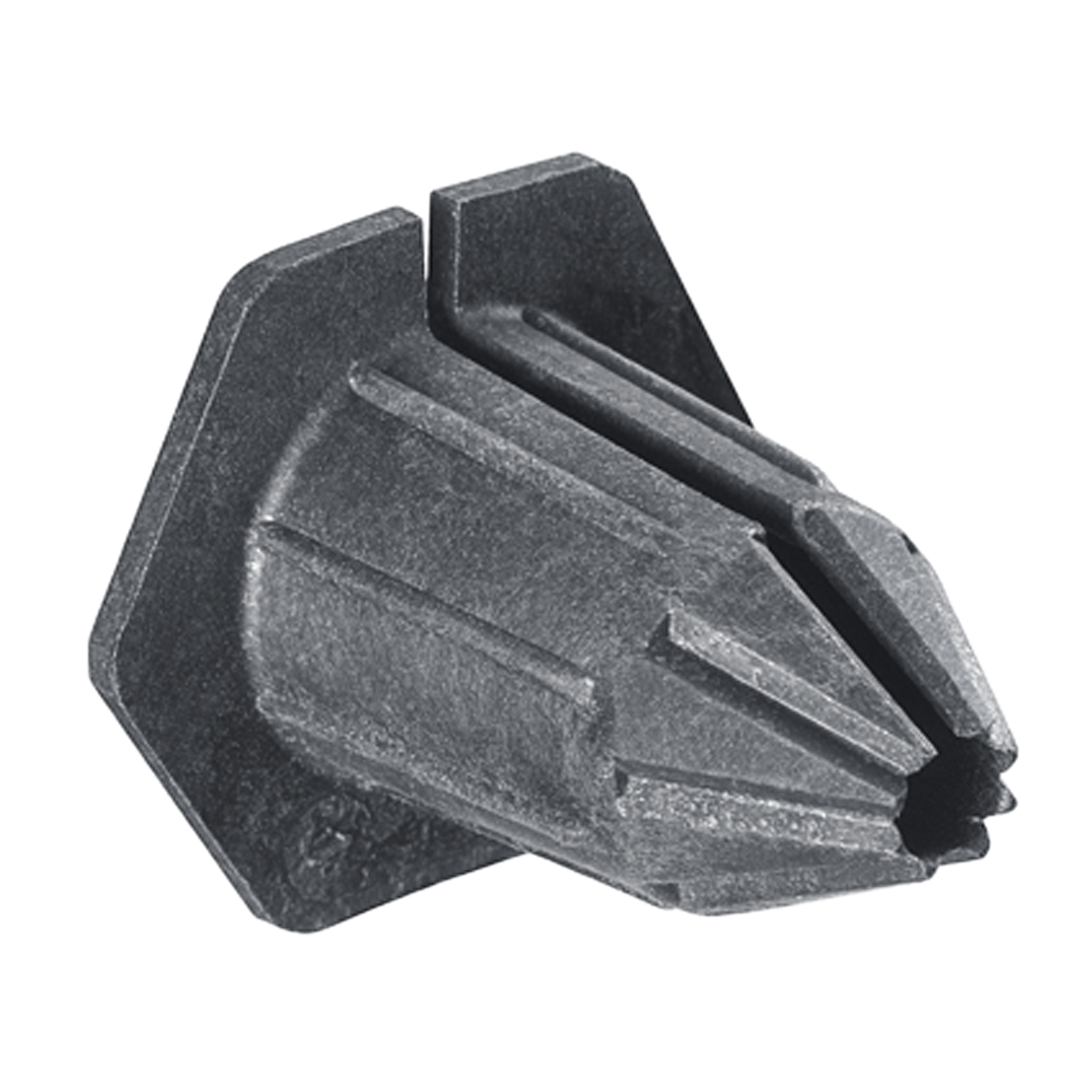

14803519459-01

For cable Ø 5-15mm

A:
Cavity wall Ø 20mm
Masonry Ø 20mm
min 10010/100

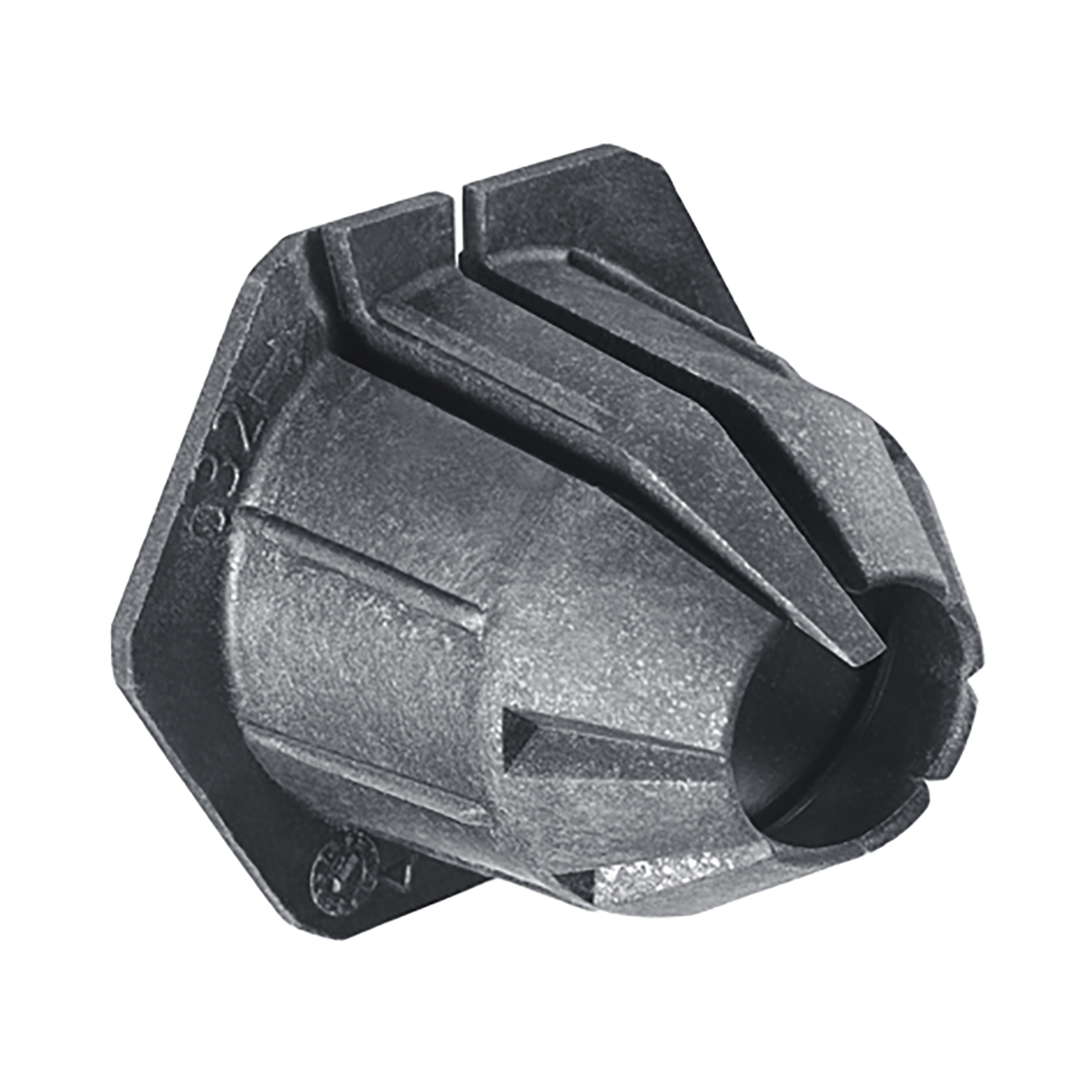

14803529459-02

For conduits Ø 16-25mm

A:
Cavity wall Ø 35mm
Masonry Ø 32mm
min 10010/100
