Junction box for waterproof underground connections

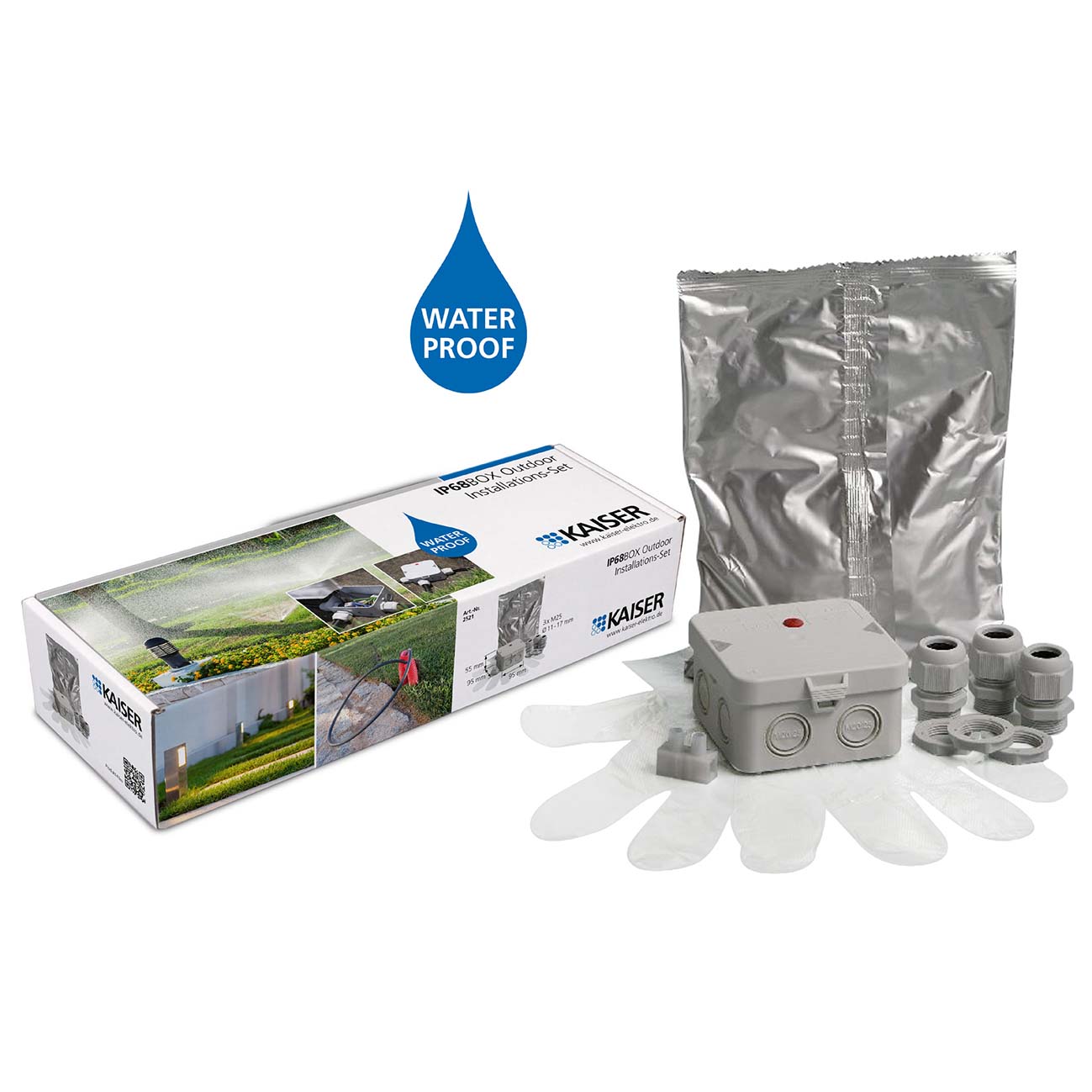

• Cable box AK1-IP65 M20/M25 as complete cast resin joint package for water-tight underground connections.
• Including 2-component PUR cast resin in transparant mixing bag.
• Includes 3 cable glands and lock nuts M25, clamping range ø11 - 17mm, suitable for the common in-ground cables XmVKas and YmvKas.
• Includes special terminal block for the flexible braided earth wires.
• 8 ports in 4 directions, maximum of 6 cables per box.

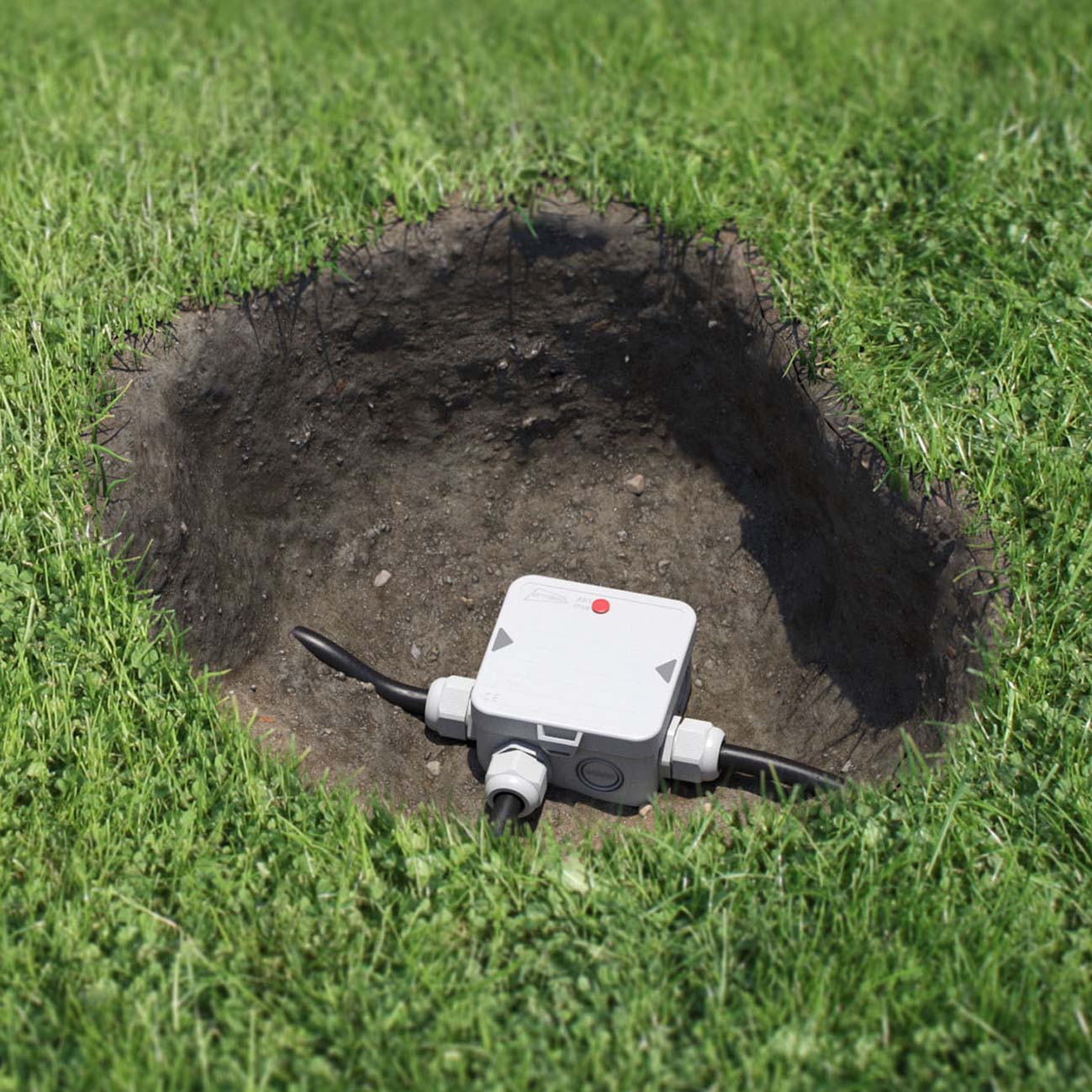

• Time saving: can be placed in ground and powered up immediately after filling.
• Hardened resin can be disposed of with normal household waste.

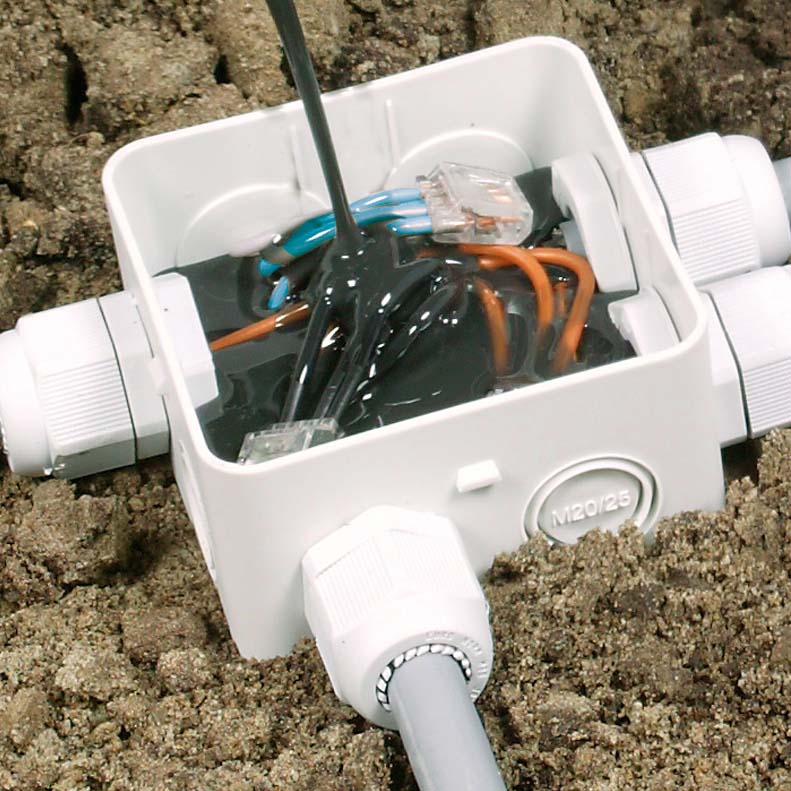

Junction box with cast-resin for underground or water connection.
The handling temperature range of the cast-resin lies between 0ºC and +35ºC.
The cast-resin mixes best at room temperature.
Store the cast-resin in room temperature before using at low temperatures. Usage of the cast-resin after expiring date can affect the water-resistance negatively.

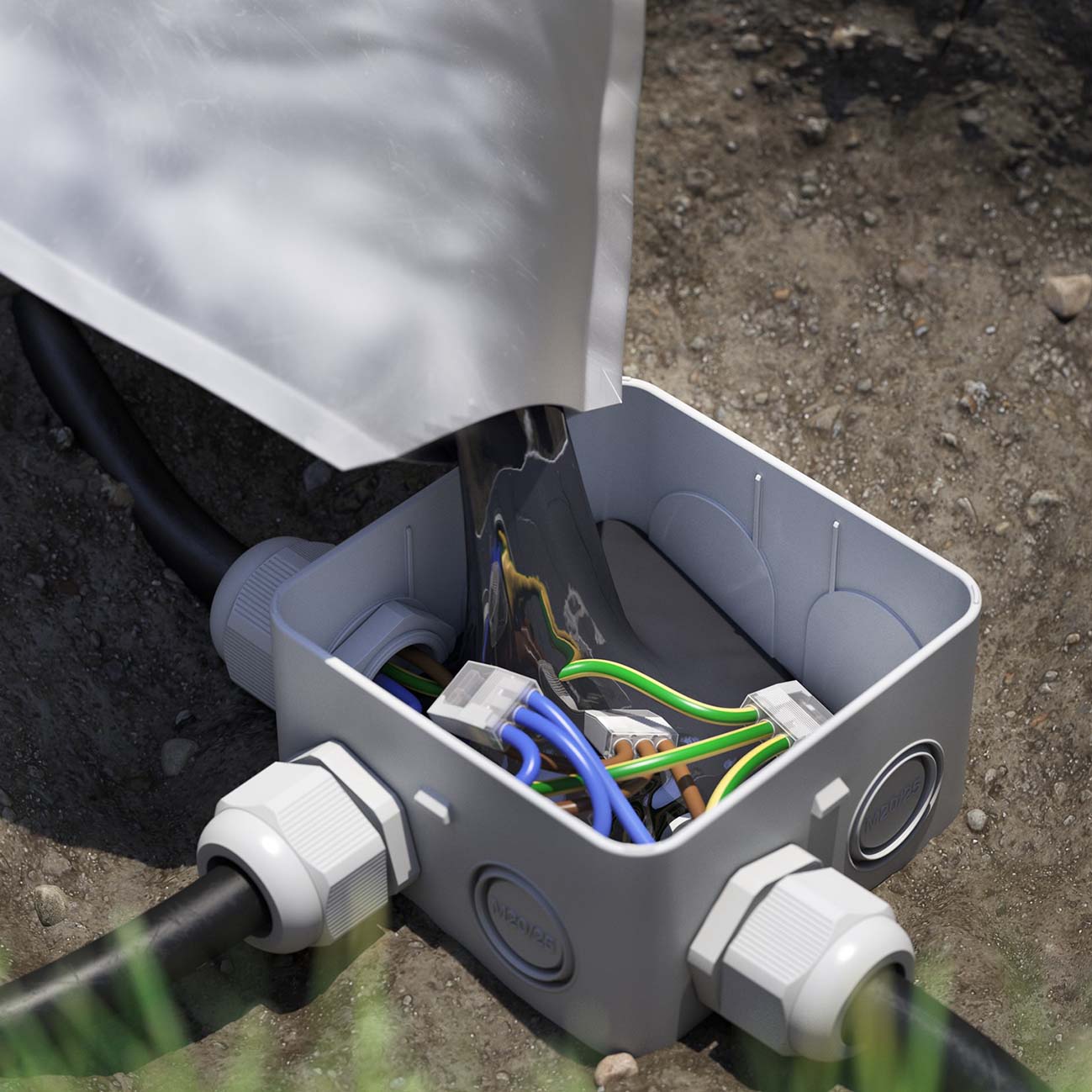

Open the cast-resin package after testing the electrical connections.
Applications under water (pools, fountains, etc.) are possible, make sure that the cast-resin has hardened out for at least 1 hour.
The mixing bag of the cast-resin with residues of hardened cast-resin can be disposed at the normal bargage because there are no environmental hazards.
