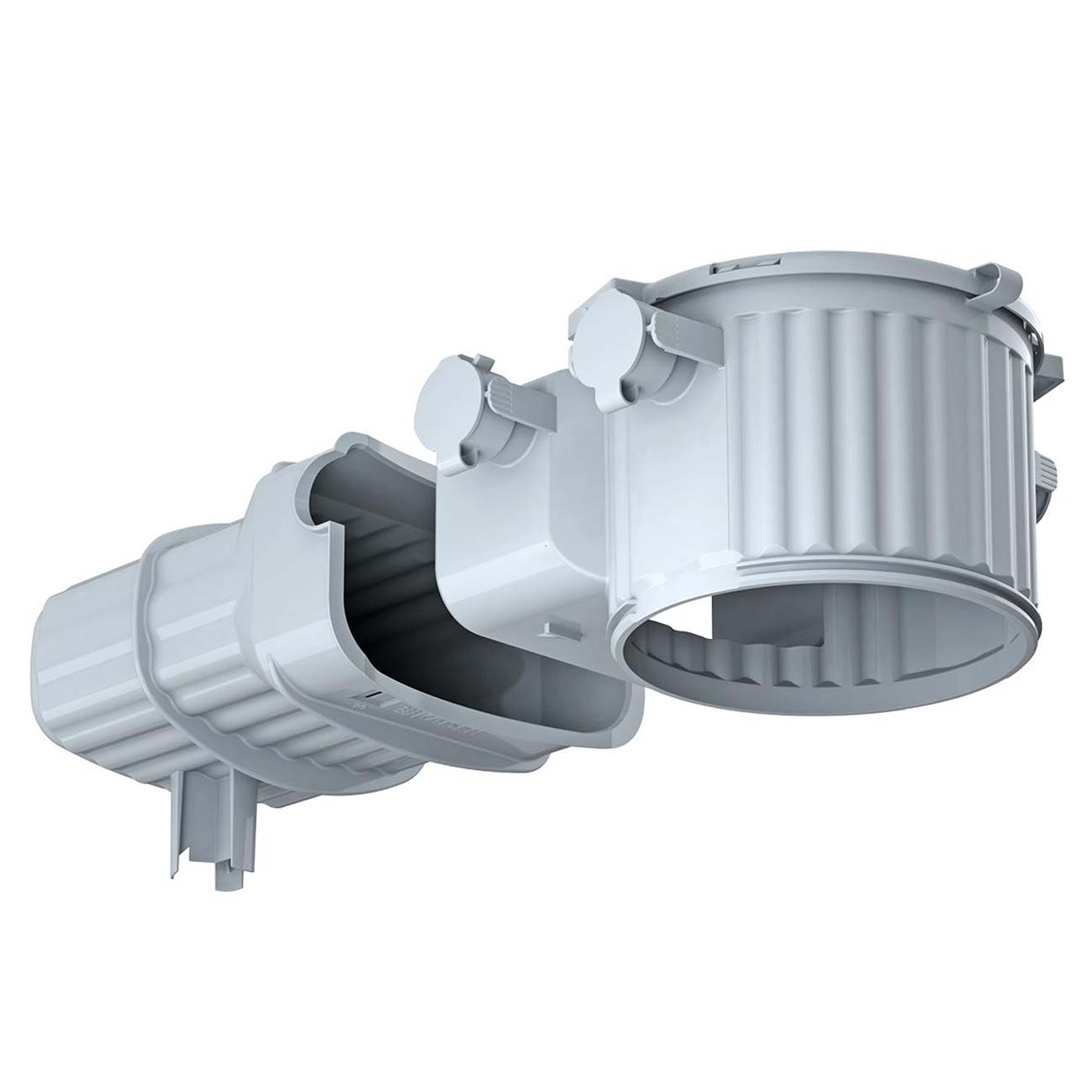

HaloX 100 Housing with Tunnel 190mm

for on-site mixed concrete

HaloX® for on-site mixed concrete. The versatile system with a range of different front rings enables the planning and use of virtually any lighting and speaker manufacturer, regardless of whether the shape is round or square.

  • Toolless combination entry for M20/M25 conduits
  • Conduit entry limitation to prevent the need to shorten the conduit inside
  • No reinforcement cuts in tunnel section area

Ceiling exit (CE) Ø:
0-100mm
Max. installation depth:
110mm
Wattage max.:
LED 20W / Halogen 50W
External Ø mm:
130
Depth incl. front part:
120mm
Tunnel length:
190mm
Tunnel width:
140mm
Tunnel heigth:
85mm
Entry:
4
