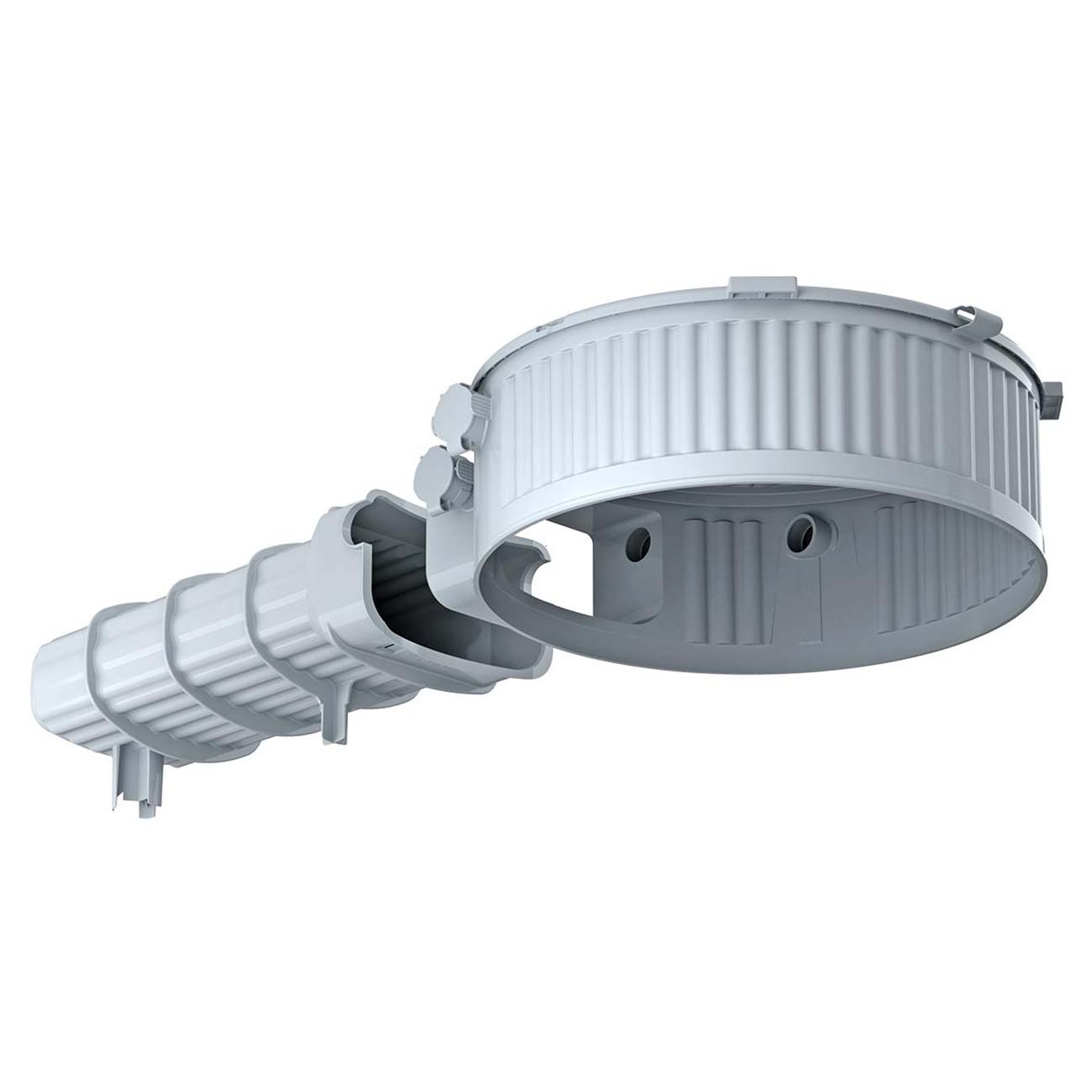

HaloX 250 Housing with Tunnel 325mm

for on-site mixed concrete

HaloX® for on-site mixed concrete. The versatile system with a range of different front rings enables the planning and use of virtually any lighting and speaker manufacturer, regardless of whether the shape is round or square.

  • Toolless combination entry for M20/M25 conduits
  • Conduit entry limitation to prevent the need to shorten the conduit inside
  • No reinforcement cuts in tunnel section area

Ceiling exit (CE) Ø:
0-250mm
Max. installation depth:
110mm
Wattage max.:
LED 45W / Halogen 100W
External Ø mm:
280
Depth incl. front part:
120mm
Tunnel length:
325mm
Tunnel width:
140mm
Tunnel heigth:
85mm
Entry:
4
