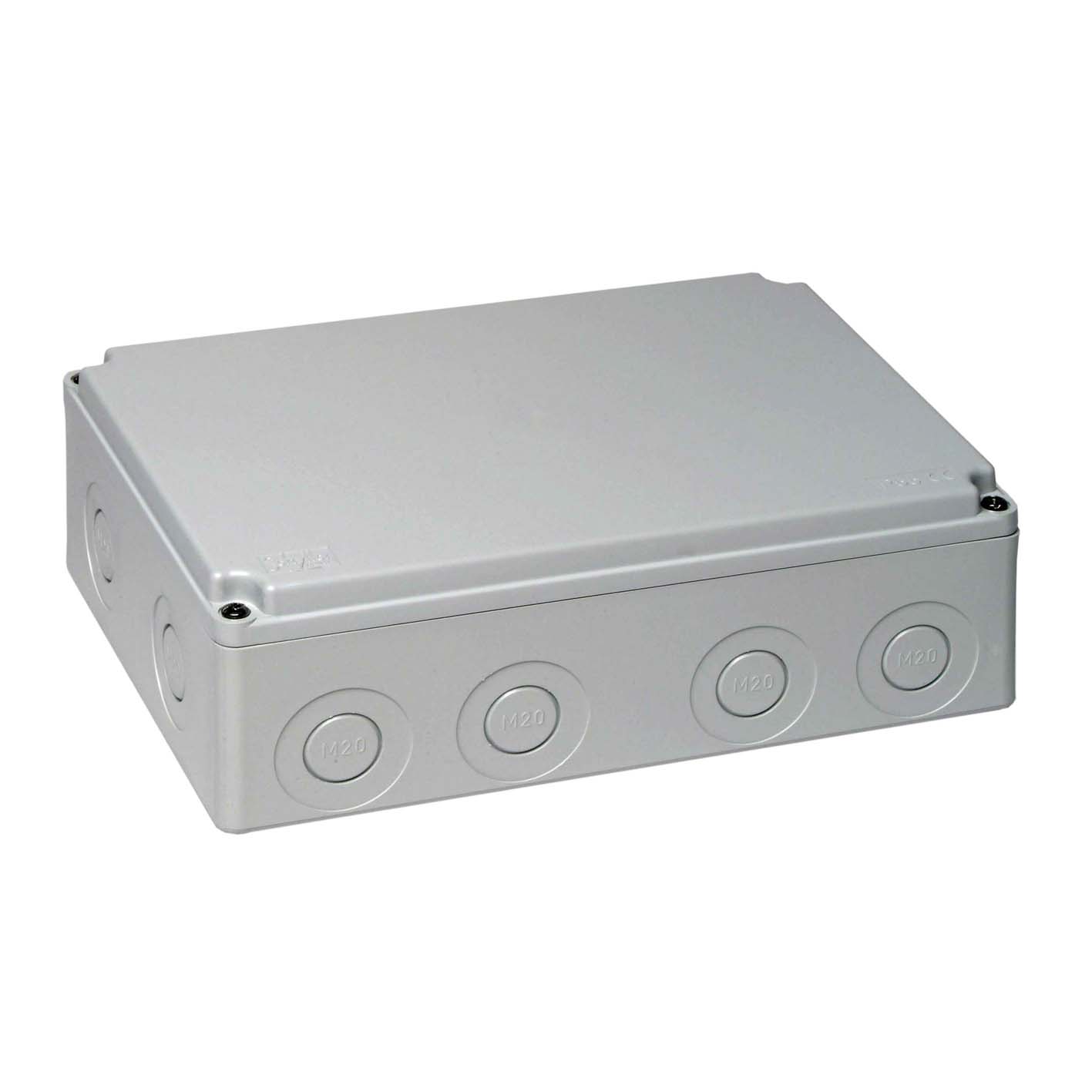

Modular boxes with knockouts (grey cover 15 mm)
Modular boxes with 15 mm cover and M20 knockouts (except E2597000 PG16&21).
| E-number | Article no. | Width mm | Depth mm | Height mm | Knockouts | Cover colour | Pcs/pack |
| 2597000 | 93.110 | 110 | 65 | 75 | 2 x PG21 + 4 x PG16/21 | RAL 7035 | 1/96 |
| 2597004 | 93.834 | 150 | 75 | 110 | 8 x M20 | RAL 7035 | 1/84 |
| 2597008 | 93.844 | 220 | 75 | 150 | 12 x M20 | RAL 7035 | 1/42 |
Material:
Selfextinguishing Nyrol classed to grade V1 and UL94 standard
Ingress protection:
IP557
Impact resistance:
IK08 acc. to EN 50 102
Temperature range:
-25°C....+90°C
Glow wire test:
960°C
Colour:
Grey acc. to RAL 7035
