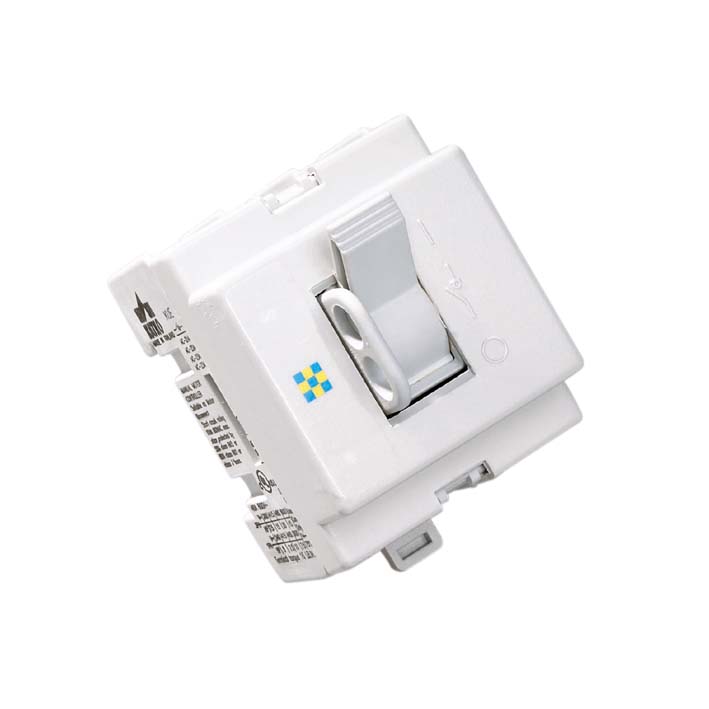

Load Break Switch 3-pole 3 modules 63A
Rated thermal current Ithe (A:
80
Back-up fuse (A):
80
Rated operational current AC21 Ie (A):
400/415V = 80 A500V = 80 A690V = 80 A
Rated operational current AC22 Ie (A) :
400/415V = 63 A500V = 63 A690V = 63 A
Rated operational current AC23 Ie (A):
400/415V = 40 A500V = 40 A690V = 40 A
Rated operational power AC-23 (kW):
400/415V = 22 kW500V = 30 kW690V = 37 kW
Rated short-circuit capacity (kA):
50
Mechanical endurance (number of operations):
50.000
Terminals / Bolt size (mm²):
2,5 - 35
Fastening torque:
2,5 Nm
Module width:
3 modules (54mm)
Standards:
IEC 60 947-3, IEC 60 269-2, UL 508
