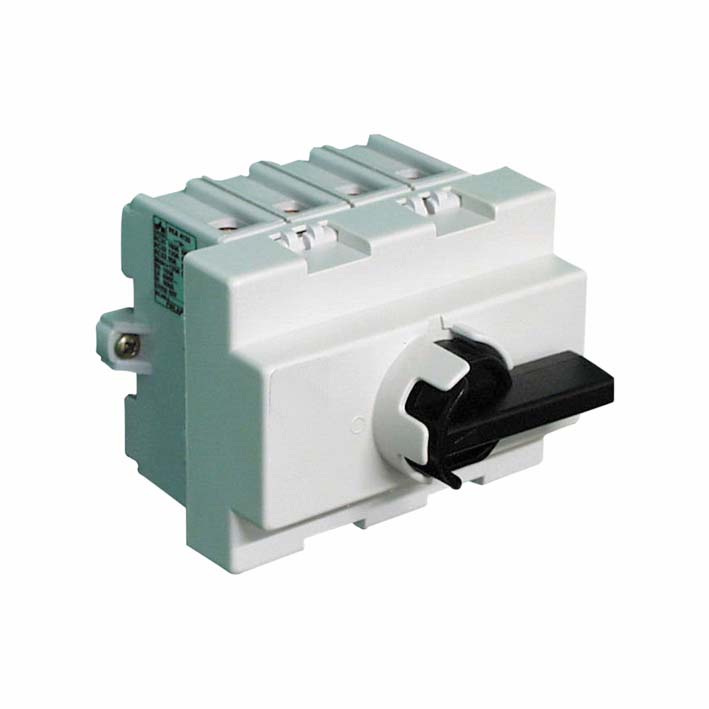

Load Break Switch 4-pole 125A
Rated thermal current Ithe (A:
160
Back-up fuse (A):
160
Rated operational current AC21 Ie (A):
400/415V = 160 A500V = 160 A690V = 160 A
Rated operational current AC22 Ie (A) :
400/415V = 125 A500V = 125 A690V = 125 A
Rated operational current AC23 Ie (A):
400/415V = 80 A500V = 80 A690V = 80 A
Rated operational power AC-23 (kW):
400/415V = 45 kW500V = 55 kW690V = 55 kW
Rated short-circuit capacity (kA):
50
Mechanical endurance (number of operations):
16.000
Terminals / Bolt size (mm²):
6 - 70
Fastening torque:
4,5 Nm
Standards:
IEC 60 947-3, IEC 60 269-2, UL 508
