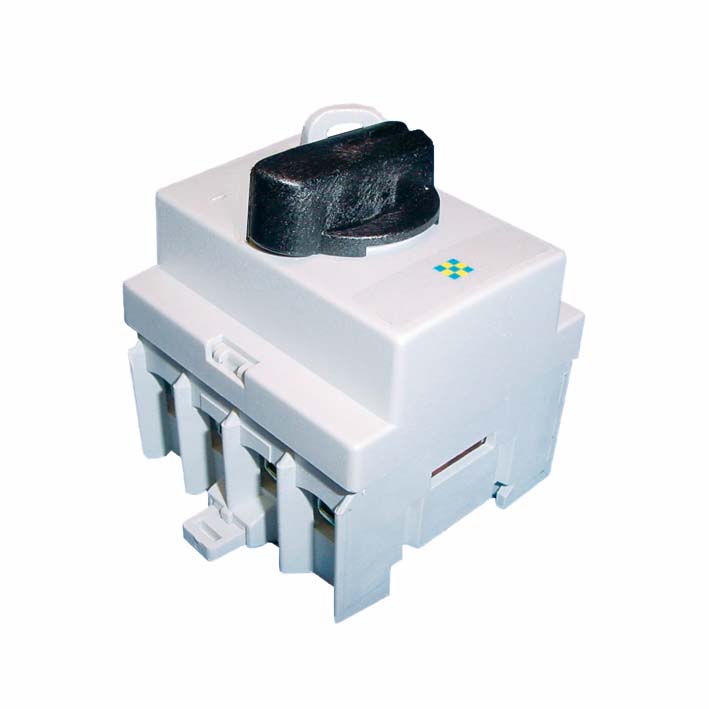

Load Break Switch 4-pole 4 modules 40A
Rated thermal current Ithe (A:
63
Back-up fuse (A):
63
Rated operational current AC21 Ie (A):
400/415V = 63 A500V = 63 A690V = 63 A
Rated operational current AC22 Ie (A) :
400/415V = 40 A500V = 40 A690V = 40 A
Rated operational current AC23 Ie (A):
400/415V = 32 A500V = 32 A690V = 25 A
Rated operational power AC-23 (kW):
400/415V = 15 kW500V = 22 kW690V = 30 kW
Rated short-circuit capacity (kA):
50
Mechanical endurance (number of operations):
50.000
Terminals / Bolt size (mm²):
1,5 - 16
Fastening torque:
1,8 Nm
Module width:
4 modules (72mm)
Standards:
IEC 60 947-3, IEC 60 269-2, UL 508
