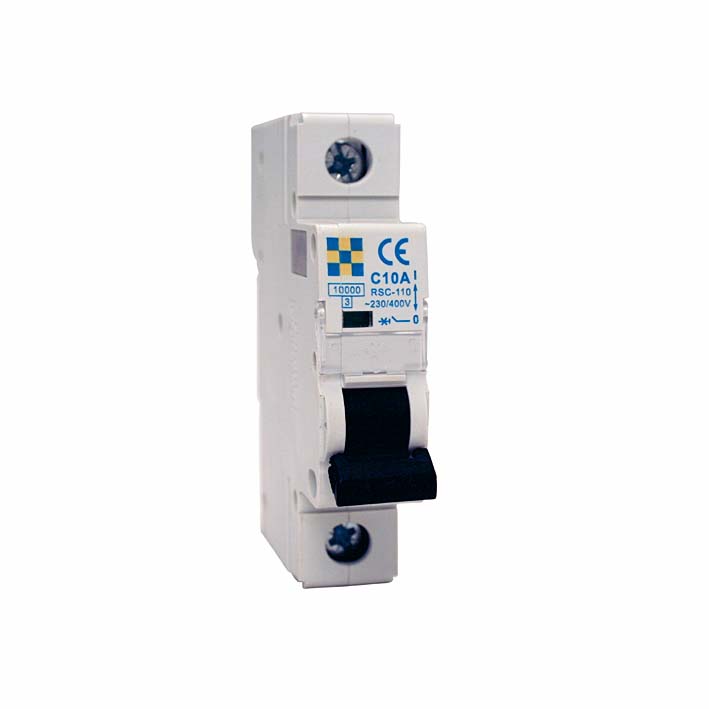

MCB 1-pole Type B
- Semko approved - Ref no 1621033
- Function of isolation acc. to IEC 60947-2
- Contact position indication
- Fork / Pin connection for Busbars
- D-characteristic on request
- 1 (1)
- 2 (1)
- 3 (1)
- 4 (1)
- 6 (1)
- 10 (1)
- 13 (1)
- 16 (1)
- 20 (1)
- 25 (1)
- 32 (1)
- 40 (1)
- 50 (1)
- 63 (1)
| E-number | Article no. | Karakteristik | Rated current (A) | Pcs/pack |
| 2146301 | RSB-101 | B | 1 | 12/120 |
| 2146302 | RSB-102 | B | 2 | 12/120 |
| 2146303 | RSB-103 | B | 3 | 12/120 |
| 2146304 | RSB-104 | B | 4 | 12/120 |
| 2146306 | RSB-106 | B | 6 | 12/120 |
| 2146307 | RSB-110 | B | 10 | 12/120 |
| 2146308 | RSB-113 | B | 13 | 12/120 |
| 2146309 | RSB-116 | B | 16 | 12/120 |
| 2146310 | RSB-120 | B | 20 | 12/120 |
| 2146311 | RSB-125 | B | 25 | 12/120 |
| 2146312 | RSB-132 | B | 32 | 12/120 |
| 2146313 | RSB-140 | B | 40 | 12/120 |
| 2146314 | RSB-150 | B | 50 | 12/120 |
| 2146315 | RSB-163 | B | 63 | 12/120 |
Rated voltage:
230/400V AC
Rated short-circuit capacity Icn:
10kA
Rated frequency:
50/60Hz
Energy limiting class:
3
Electro-mechanical endurance:
8000 cycles
Connection capacity:
1 - 25 mm²
Fastening torque:
2,0 Nm
Installation:
DIN rail 35 mm
Temperature range:
-5°C....+40°C
Ingress protection:
IP20
Standards:
EN 60898-1:2003+A1+A11+A12+A13
