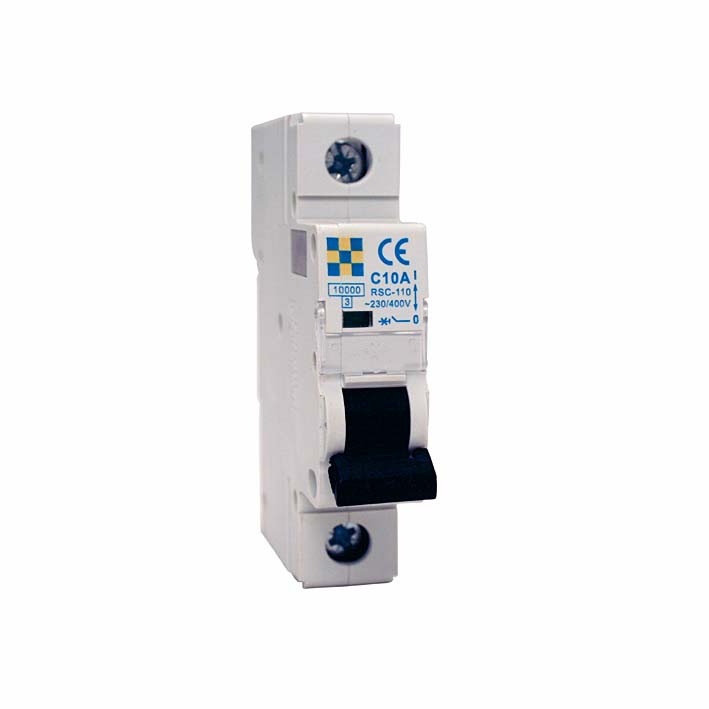

MCB 1-pole type C
- Semko approved - Ref no 1621033
- Function of isolation acc. to IEC 60947-2
- Contact position indication
- Fork / Pin connection for Busbars
- D-characteristic on request
- 1 (1)
- 2 (1)
- 3 (1)
- 4 (1)
- 6 (1)
- 10 (1)
- 13 (1)
- 16 (1)
- 20 (1)
- 25 (1)
- 32 (1)
- 40 (1)
- 50 (1)
- 63 (1)
| E-number | Article no. | Karakteristik | Rated current (A) | Pcs/pack |
| 2146422 | RSC-101 | C | 1 | 12/120 |
| 2146424 | RSC-102 | C | 2 | 12/120 |
| 2146426 | RSC-103 | C | 3 | 12/120 |
| 2146428 | RSC-104 | C | 4 | 12/120 |
| 2146432 | RSC-106 | C | 6 | 12/120 |
| 2146436 | RSC-110 | C | 10 | 12/120 |
| 2146438 | RSC-113 | C | 13 | 12/120 |
| 2146440 | RSC-116 | C | 16 | 12/120 |
| 2146442 | RSC-120 | C | 20 | 12/120 |
| 2146444 | RSC-125 | C | 25 | 12/120 |
| 2146446 | RSC-132 | C | 32 | 12/120 |
| 2146448 | RSC-140 | C | 40 | 12/120 |
| 2146450 | RSC-150 | C | 50 | 12/120 |
| 2146452 | RSC-163 | C | 63 | 12/120 |
Rated voltage:
230/400V AC
Rated short-circuit capacity Icn:
10kA
Rated frequency:
50/60Hz
Energy limiting class:
3
Electro-mechanical endurance:
8000 cycles
Connection capacity:
1 - 25 mm²
Fastening torque:
2,0 Nm
Installation:
DIN rail 35 mm
Temperature range:
-5°C....+40°C
Ingress protection:
IP20
Standards:
EN 60898-1:2003+A1+A11+A12+A13
