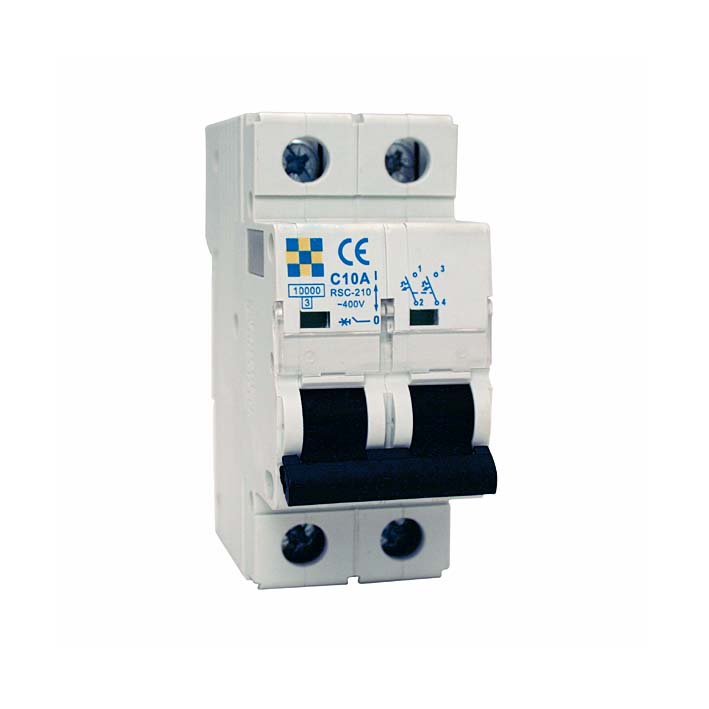

MCB 2-pole Type B
- Semko approved - Ref no 1621033
- Function of isolation acc. to IEC 60947-2
- Contact position indication
- Fork / Pin connection for Busbars
- D-characteristic on request
- 1 (1)
- 2 (1)
- 3 (1)
- 4 (1)
- 6 (1)
- 10 (1)
- 13 (1)
- 16 (1)
- 20 (1)
- 25 (1)
- 32 (1)
- 40 (1)
- 50 (1)
- 63 (1)
| E-number | Article no. | Karakteristik | Rated current (A) | Pcs/pack |
| 2146317 | RSB-201 | B | 1 | 6/60 |
| 2146318 | RSB-202 | B | 2 | 6/60 |
| 2146319 | RSB-203 | B | 3 | 6/60 |
| 2146320 | RSB-204 | B | 4 | 6/60 |
| 2146322 | RSB-206 | B | 6 | 6/60 |
| 2146323 | RSB-210 | B | 10 | 6/60 |
| 2146324 | RSB-213 | B | 13 | 6/60 |
| 2146325 | RSB-216 | B | 16 | 6/60 |
| 2146326 | RSB-220 | B | 20 | 6/60 |
| 2146327 | RSB-225 | B | 25 | 6/60 |
| 2146328 | RSB-232 | B | 32 | 6/60 |
| 2146329 | RSB-240 | B | 40 | 6/60 |
| 2146330 | RSB-250 | B | 50 | 6/60 |
| 2146331 | RSB-263 | B | 63 | 6/60 |
Rated voltage:
230/400V AC
Rated short-circuit capacity Icn:
10kA
Rated frequency:
50/60Hz
Energy limiting class:
3
Electro-mechanical endurance:
8000 cycles
Connection capacity:
1 - 25 mm²
Fastening torque:
2,0 Nm
Installation:
DIN rail 35 mm
Temperature range:
-5°C....+40°C
Ingress protection:
IP20
Standards:
EN 60898-1:2003+A1+A11+A12+A13
