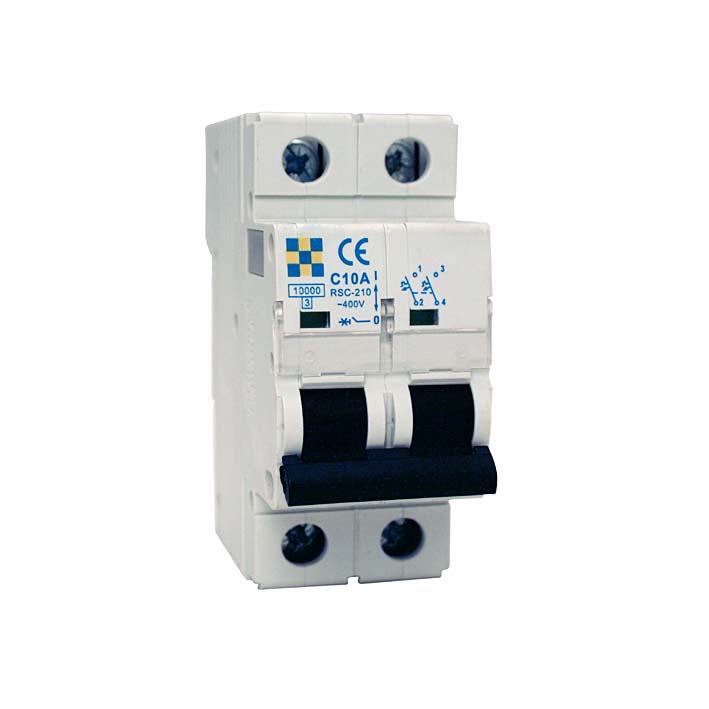

MCB 2-pole Type C
- Semko approved - Ref no1621033
- Function of isolation acc. to IEC 60947-2
- Contact position indication
- Fork / Pin connection for Busbars
- D-characteristic on request.
- 1 (1)
- 2 (1)
- 3 (1)
- 4 (1)
- 6 (1)
- 10 (1)
- 13 (1)
- 16 (1)
- 20 (1)
- 25 (1)
- 32 (1)
- 40 (1)
- 50 (1)
- 63 (1)
| E-number | Article no. | Karakteristik | Rated current (A) | Pcs/pack |
| 2146462 | RSC-201 | C | 1 | 6/60 |
| 2146464 | RSC-202 | C | 2 | 6/60 |
| 2146466 | RSC-203 | C | 3 | 6/60 |
| 2146468 | RSC-204 | C | 4 | 6/60 |
| 2146472 | RSC-206 | C | 6 | 6/60 |
| 2146476 | RSC-210 | C | 10 | 6/60 |
| 2146478 | RSC-213 | C | 13 | 6/60 |
| 2146480 | RSC-216 | C | 16 | 6/60 |
| 2146482 | RSC-220 | C | 20 | 6/60 |
| 2146484 | RSC-225 | C | 25 | 6/60 |
| 2146486 | RSC-232 | C | 32 | 6/60 |
| 2146488 | RSC-240 | C | 40 | 6/60 |
| 2146490 | RSC-250 | C | 50 | 6/60 |
| 2146492 | RSC-263 | C | 63 | 6/60 |
Rated voltage:
230/400V AC
Rated short-circuit capacity Icn:
10kA
Rated frequency:
50/60Hz
Energy limiting class:
3
Electro-mechanical endurance:
8000 cycles
Connection capacity:
1 - 25 mm²
Fastening torque:
2,0 Nm
Installation:
DIN rail 35 mm
Temperature range:
-5°C....+40°C
Ingress protection:
IP20
Standards:
EN 60898-1:2003+A1+A11+A12+A13
