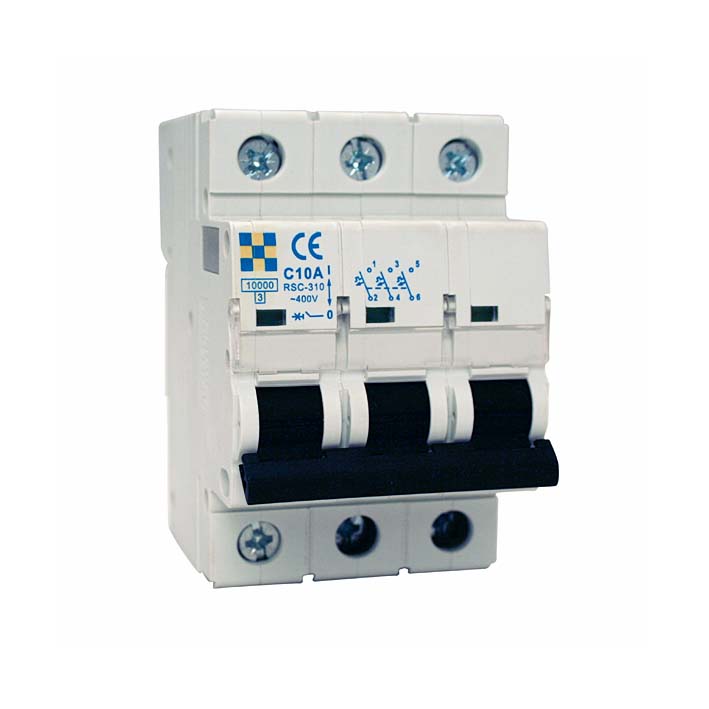

MCB 3-pole Type B
- Semko approved - Ref no 1621033
- Function of isolation acc. to IEC 60947-2
- Contact position indication
- Fork / Pin connection for Busbars
- D-characteristic on request.
- 1 (1)
- 2 (1)
- 3 (1)
- 4 (1)
- 6 (1)
- 10 (1)
- 13 (1)
- 16 (1)
- 20 (1)
- 25 (1)
- 32 (1)
- 40 (1)
- 50 (1)
- 63 (1)
| E-number | Article no. | Karakteristik | Rated current (A) | Pcs/pack |
| 2146333 | RSB-301 | B | 1 | 4/40 |
| 2146334 | RSB-302 | B | 2 | 4/40 |
| 2146335 | RSB-303 | B | 3 | 4/40 |
| 2146336 | RSB-304 | B | 4 | 4/40 |
| 2146338 | RSB-306 | B | 6 | 4/40 |
| 2146339 | RSB-310 | B | 10 | 4/40 |
| 2146340 | RSB-313 | B | 13 | 4/40 |
| 2146341 | RSB-316 | B | 16 | 4/40 |
| 2146342 | RSB-320 | B | 20 | 4/40 |
| 2146343 | RSB-325 | B | 25 | 4/40 |
| 2146344 | RSB-332 | B | 32 | 4/40 |
| 2146345 | RSB-340 | B | 40 | 4/40 |
| 2146346 | RSB-350 | B | 50 | 4/40 |
| 2146347 | RSB-363 | B | 63 | 4/40 |
Rated voltage:
230/400V AC
Rated short-circuit capacity Icn:
10kA
Rated frequency:
50/60Hz
Energy limiting class:
3
Electro-mechanical endurance:
8000 cycles
Connection capacity:
1 - 25 mm²
Fastening torque:
2,0 Nm
Installation:
DIN rail 35 mm
Temperature range:
-5°C....+40°C
Ingress protection:
IP20
Standards:
EN 60898-1:2003+A1+A11+A12+A13
