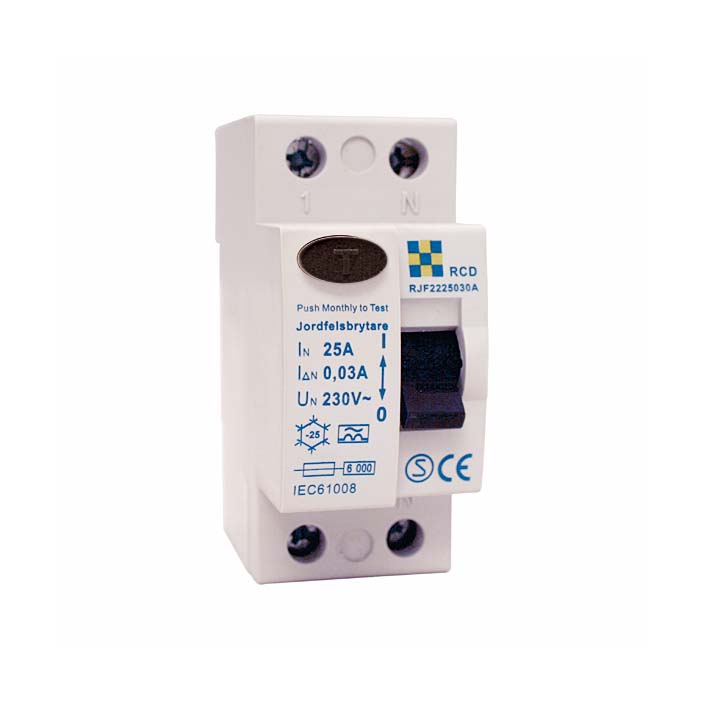

RCCB 2-pole Type A
RCCB for alternating (AC) and/or pulsating DC current. Manufactured acc. to IEC61008.
- Independent of powersupply and line voltage
- Semko approved - Ref no 2200268
- 25 (1)
- 2 (1)
| E-number | Article no. | Number of poles | Rated current (A) | Rated residual operating current mA | Pcs/pack |
| 2167600 | RJF2225030A | 2 | 25 | 30 | 1/60 |
Rated voltage:
230/240V AC
Rated short-circuit capacity Icn:
6kA
Rated making and breaking capacity:
630A
Rated frequency:
50/60Hz
Electro-mechanical endurance:
4000 cycles
Connection capacity:
1 - 25 mm²
Fastening torque:
2,0 Nm
Installation:
DIN rail 35 mm
Temperature range:
-25°C....+40°C
Ingress protection:
IP20
Standards:
EN 61008-1:2012+A1+A2, EN61008-2-1:1994+A11
