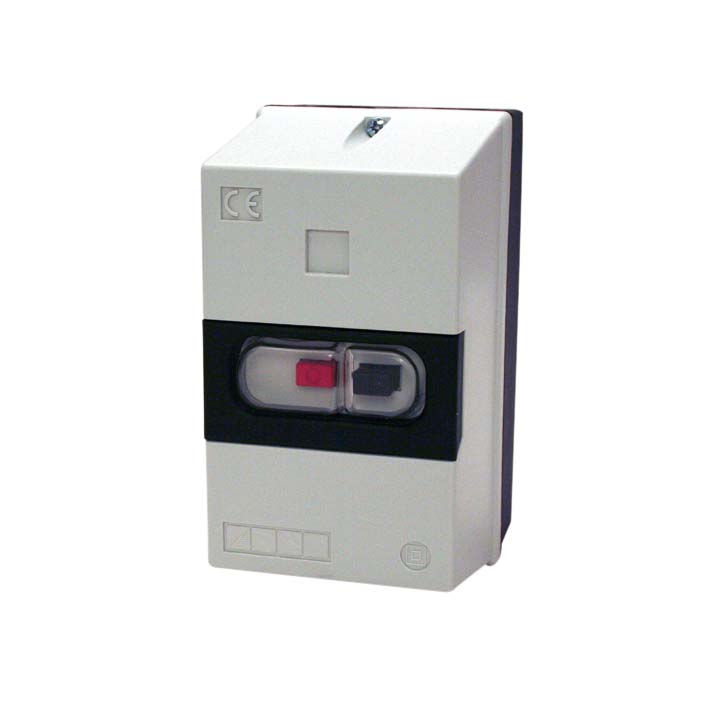

Motor Protection Switch with enclosure IP65
- Phase failure sensitivity
- Enclosure equipped with four M20 knockouts
| E-number | Article no. | Adjustable overload release A | Overload Release Seting Range A | Response Current of Short-Circuit Release A | Pcs/pack |
| 3119401 | MKS1TM-K-0.16 | 0,1 - 0,16 | 0,16 | 1,92 | 1 |
| 3119402 | MKS1TM-K-0.25 | 0,16 - 0,25 | 0,25 | 3 | 1 |
| 3119403 | MKS1TM-K-0.40 | 0,25 - 0,40 | 0,40 | 4,8 | 1 |
| 3119404 | MKS1TM-K-0.63 | 0,40 - 0,63 | 0,63 | 7,6 | 1 |
| 3119405 | MKS1TM-K-1.00 | 0,63 - 1,0 | 1,0 | 12 | 1 |
| 3119406 | MKS1TM-K-1.60 | 1,0 - 1,6 | 1,6 | 19,2 | 1 |
| 3119407 | MKS1TM-K-2.50 | 1,6 - 2,5 | 2,5 | 30 | 1 |
| 3119408 | MKS1TM-K-4.00 | 2,5 - 4,0 | 4,0 | 48 | 1 |
| 3119409 | MKS1TM-K-6.30 | 4,0 - 6,3 | 6,3 | 75,6 | 1 |
| 3119410 | MKS1TM-K-10.0 | 6,3 - 10,0 | 10,0 | 120 | 1 |
| 3119411 | MKS1TM-K-16.0 | 10,0 - 16,0 | 16,0 | 192 | 1 |
Rated operational voltage Ue:
400 V AC
Stroke resistance voltage Uimp:
6 kV
Rated insulation voltage Ui :
690 V AC
Rated continuous current Iu:
32 A
Rated operational current Ie:
0,1 - 16 A acc. to setting range
Operating frequency:
30 operations/hour
Rated short-circuit capacity:
3 kA / 400V
Electrical life:
100.000 operations
Electro-mechanical endurance:
100.000 cycles
Connection capacity:
0,75 - 2,5 mm²
Temperature range:
-20°C....+40°C
Ingress protection:
IP65
Standards:
EN 60947-5-1
