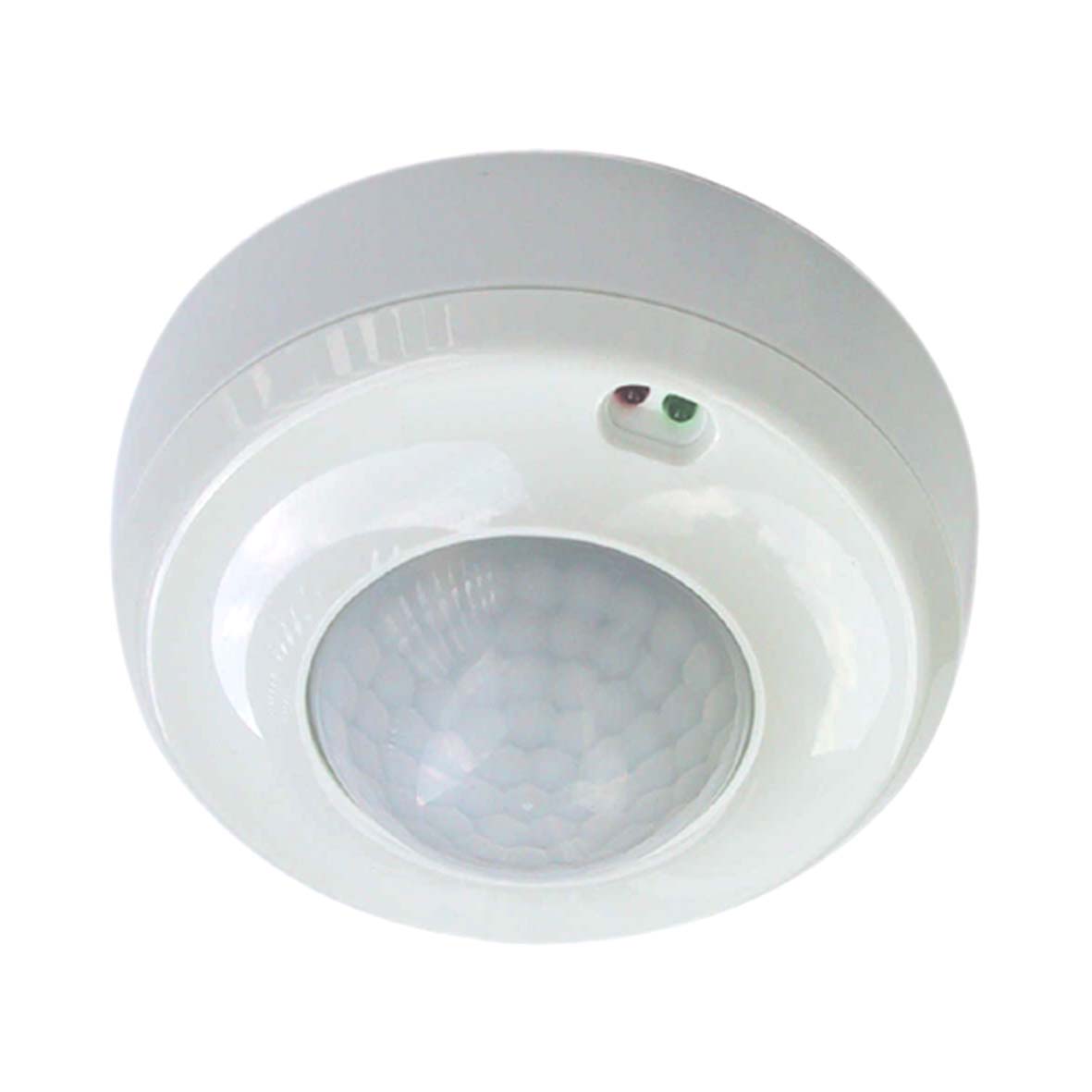

PD2-M-2C-11-48V
Supply voltage:
12-48 V AC/DC
Power consumption:
< 1W
Material Enclosure:
Polycarbonate, UV-resistant
Temperature range:
-25°C....+50°C
Protection category:
II
Settings:
Potentiometers, DIP switches and remote control
Light values:
Remote control 20 - 1000 Lux,
Potentiometer 10 - 2000 Lux
Potentiometer 10 - 2000 Lux
Extension of the detection area:
with detector in slave mode
Area of coverage:
circular 360°
Range of coverage:
Ø H 2.50m / T = 18°C:
seated 4m
tangential 10m
radial 6m
seated 4m
tangential 10m
radial 6m
Recommended height for mounting:
2,5m
Light measurement:
Mixed light, daylight + artificial light
Follow-up time:
Channel 1: 15 sec - 30 min or pulse, Channel 2: 5 - 120 min, pulse, alarm pulse
Channel 1:
For light control depending on brightness. Potential free.
Channel 2:
For light control depending on brightness. Potential free.
Switching capacity:
3A version: 3 A cos φ = 1
RR version: with Reed-Relay, 100 mA, cos φ = 1
RR version: with Reed-Relay, 100 mA, cos φ = 1
Dimensions:
H x Ø mm: UTP 50 x 98, TAK 84,5 x 80

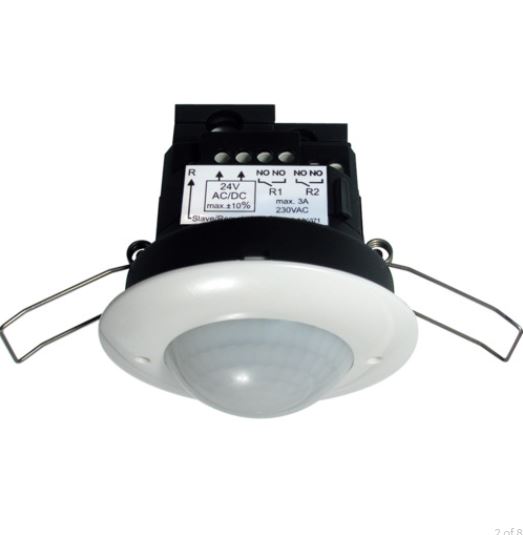

Visible portion when built into ceiling:
H x Ø mm: 15 x 80
Halogen-Free:
Yes
