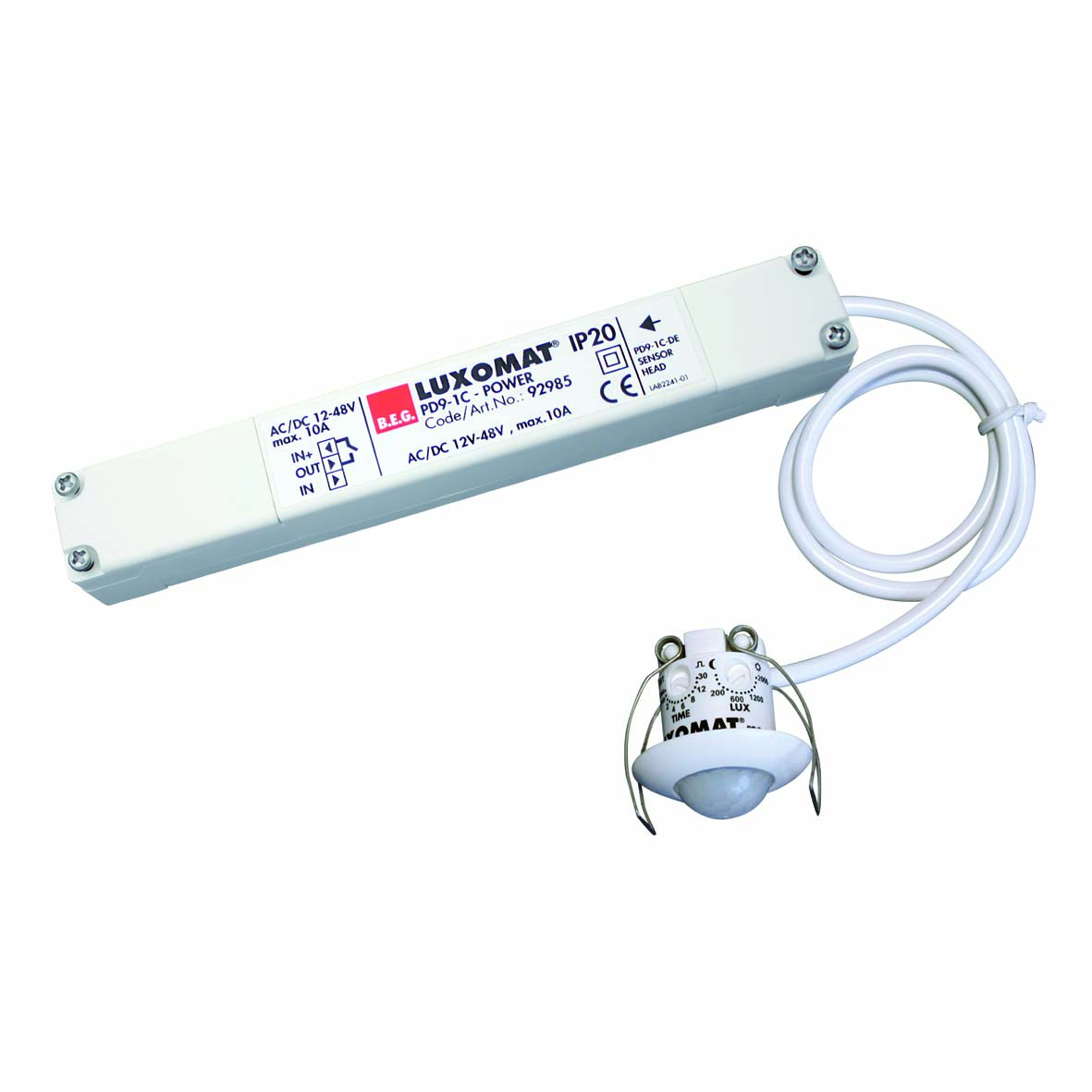

PD9-1C-12-48V
Supply voltage:
12-48 V AC/DC
Power consumption:
< 0,25W
Material Enclosure:
Polycarbonate, UV-resistant
Temperature range:
-25°C....+50°C
Protection category:
II
Settings:
Potentiometers
Light values:
Potentiometer 10 - 2000 Lux
Extension of the detection area:
with detector in slave mode
Area of coverage:
circular 360°
Range of coverage:
Ø H 2.50m / T = 18°C:
seated 4m
tangential 10m
radial 6m
seated 4m
tangential 10m
radial 6m
Recommended height for mounting:
2,5m
Light measurement:
Mixed light, daylight + artificial light
Follow-up time:
30sec - 30min, pulse
Channel 1:
For light control depending on brightness. Potential free.
Switching capacity:
1000 W, cos φ = 1
max. inrush current Ip (20ms) = 165 A
max. inrush current Ip (20ms) = 165 A
Dimensions:
Detector H=37 x Ø= 45 mm, Power supply 165 x 24 x 24 mm
Visible portion when built into ceiling:
H x Ø mm: 12 x 45
Cable length m:
0.45
Halogen-Free:
Yes
