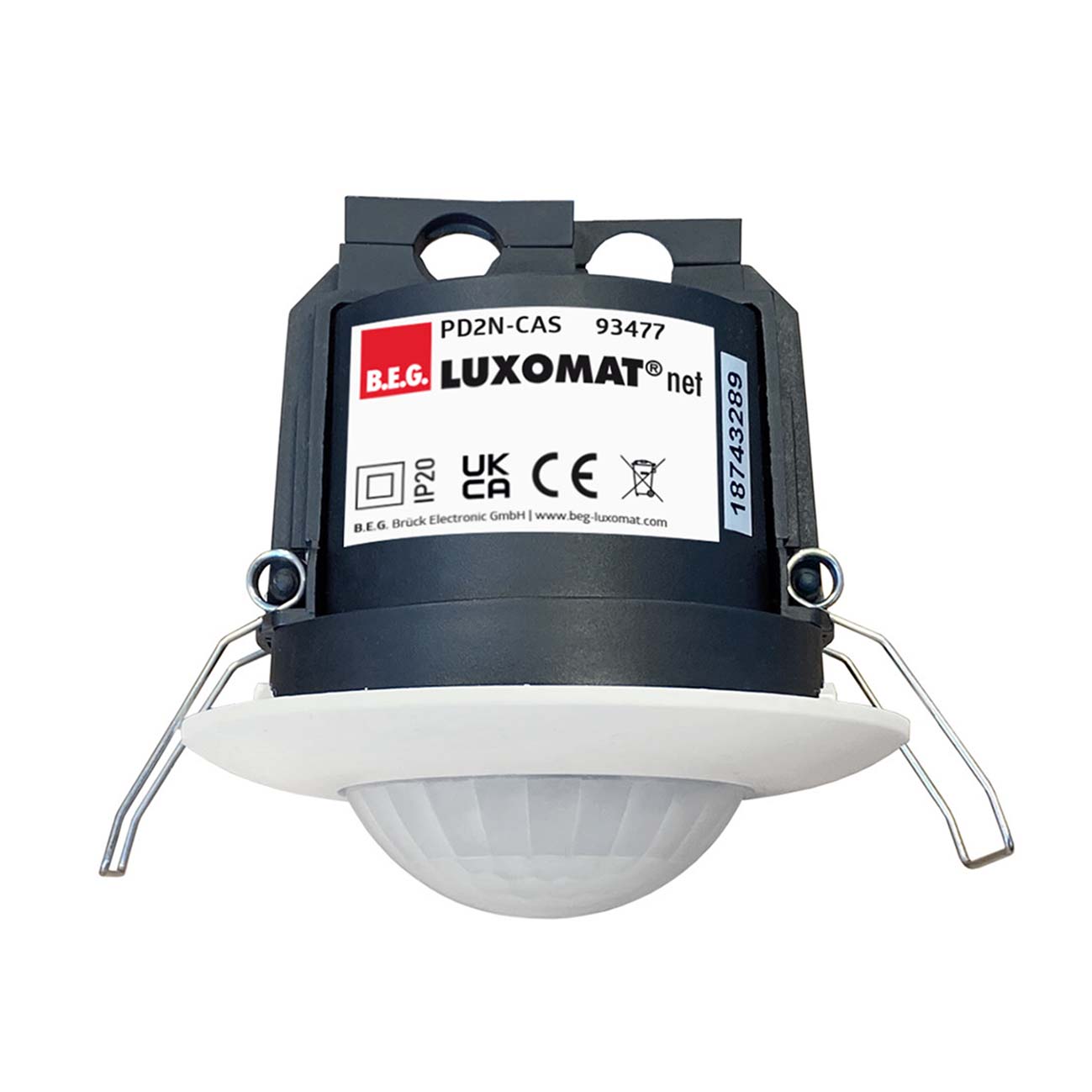

PD2N-CAS
For smaller areas
- Casambi-enabled occupancy detector
- Mixed light measurement with internal and external light sensor
- Adjustment of the reflection factor and input of the luminosity for the display of the actual luminosity in the app
- Functions adjustable via Casambi app
- Application examples: Offices, Corridors, Open-plan offices, Conference rooms, Classrooms/Seminar rooms
Supply voltage:
230V AC ±10% / 50Hz
Power consumption:
approx. 0,5W
Material Enclosure:
Polycarbonate, UV-resistant
Temperature range:
-5°C....+45°C
Ingress protection:
IP20
Protection category:
II
Light values:
1 - 4000 Lux
Area of coverage:
circular 360°
Range of coverage:
Ø H 2.50m / T = 18°C:
seated 4m
tangential 10m
radial 6m
seated 4m
tangential 10m
radial 6m
Mounting height min./max./recommended:
2m/10m/2,5m
Recommended height for mounting:
2,5m
Light measurement:
Mixed light, daylight + artificial light
Follow-up time:
1 sec - 60min
