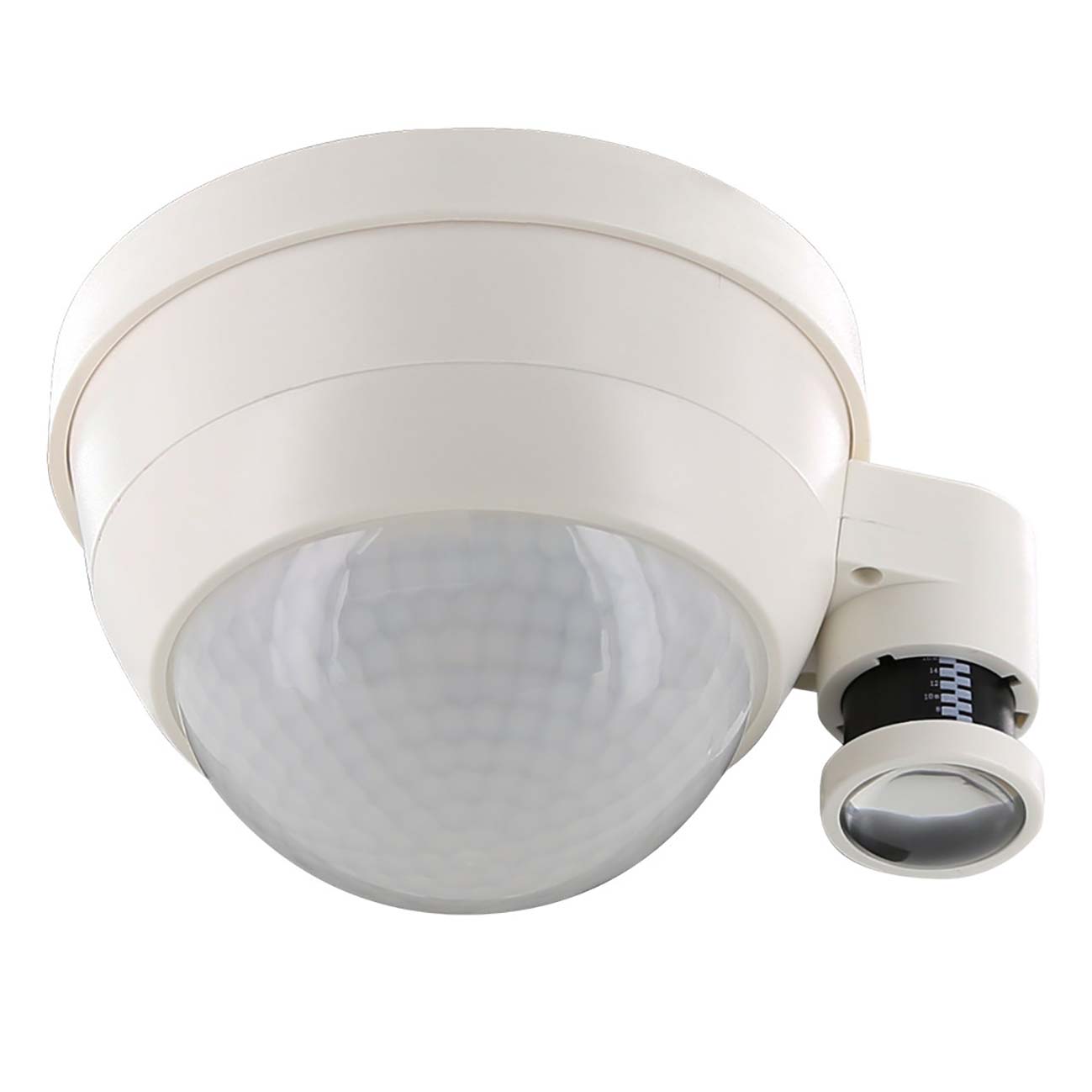

PD4-CAS-GH
Supply voltage:
230V AC ±10%
Power consumption:
approx. 0,4W
Material Enclosure:
Polycarbonate, UV-resistant
Temperature range:
-5°C....+45°C
Ingress protection:
IP54
Protection category:
II
Light values:
1 - 4000 Lux

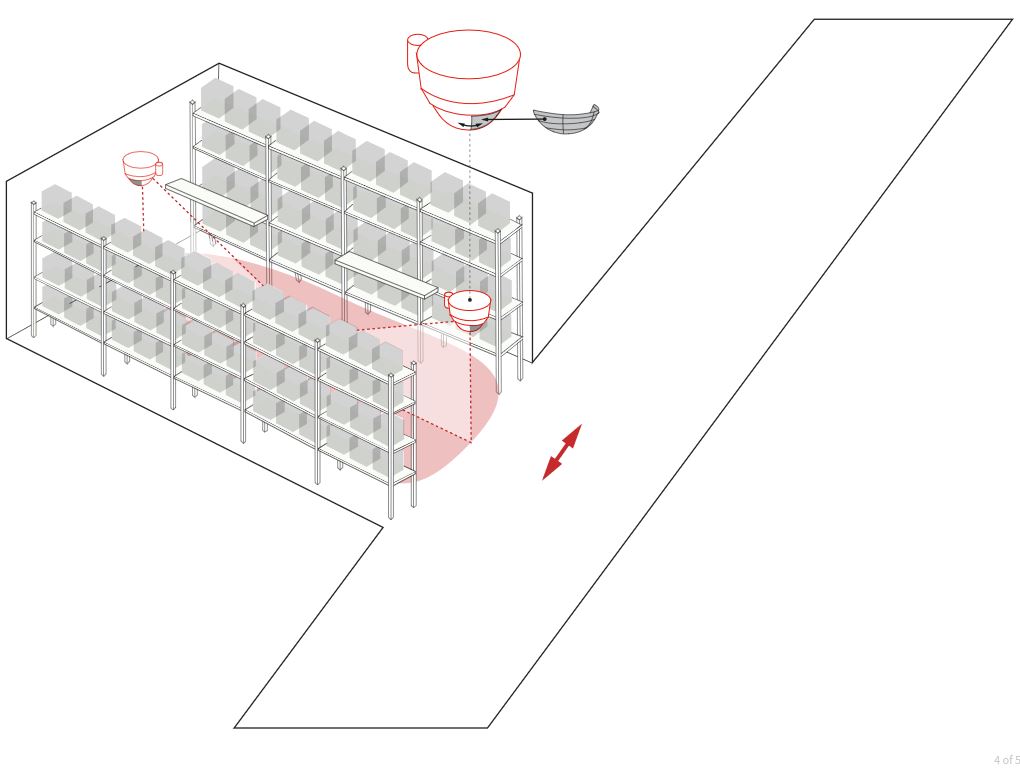

Area of coverage:
circular 360°
Range of coverage:
H 14m / T = 18°C:
tangential r 22m / Ø 44m
tangential r19m / Ø 30m
tangential r 22m / Ø 44m
tangential r19m / Ø 30m
Mounting height min./max./recommended:
5 m / 16 m / 14 m
Recommended height for mounting:
14m
Light measurement:
Mixed light, daylight + artificial light
Follow-up time:
1 sec - 60min
Halogen-Free:
Yes
