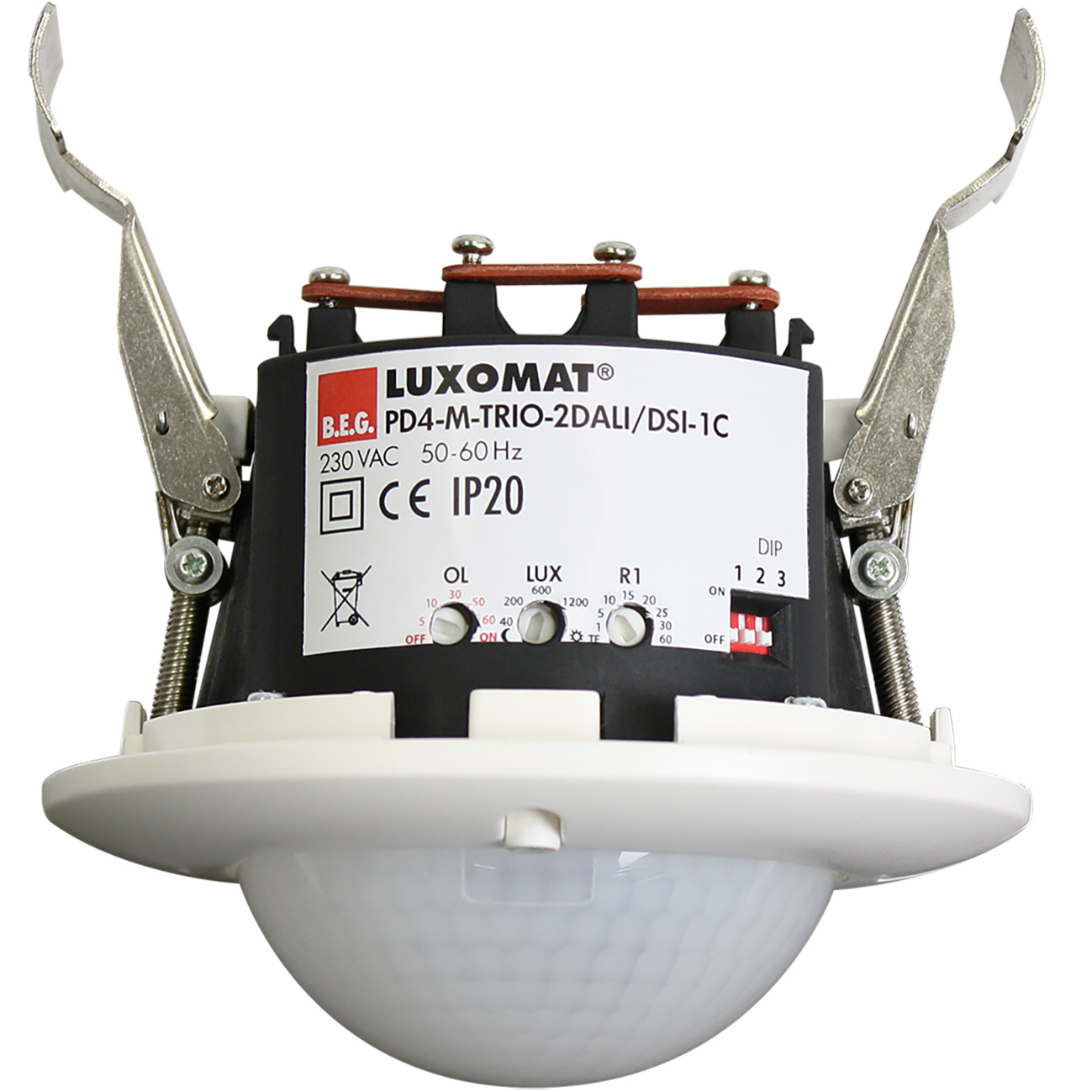

PD4-M-TRIO-2DALI/DSI-1C
Supply voltage:
110-240VAC / 50-60Hz
Power consumption:
approx. 2W
Material Enclosure:
Polycarbonate, UV-resistant
Temperature range:
-25°C....+50°C
Protection category:
II
Settings:
Potentiometers, DIP switches and remote control
Light values:
Remote control 100 - 1000 Lux,
Potentiometer 10 - 2000 Lux
Potentiometer 10 - 2000 Lux
Extension of the detection area:
with slave detector
Area of coverage:
circular 360°
Range of coverage:
Ø H 2.50m / T = 18°C:
seated 6.40m
tangential 24m
radial 8m
seated 6.40m
tangential 24m
radial 8m
Recommended height for mounting:
2,5m
Light measurement:
Mixed light, daylight + artificial light
Max. numbers of connected EB:
up to 50 (max 25 each for DA 1 and DA 2)
Follow-up time:
1 - 60min.
Channel 1:
DALI/DSI - DA 1 for light control depending on brightness (broadcast).
Channel 2:
DALI/DSI - DA 2 for light control depending on brightness (broadcast).
Relay channel 3:
for light switching (blacboard illumination), brightness- or motion-controlled, HVAC circuit only motion-controlled. Potential free.
Relay:
NOC/with pre-travel tungsten contact
Switching capacity:
3000 W, 230V~, 16 A cosφ=1
1500 VA cosφ= 0.5, μ-kontakt
inrush current Ip (20ms) = 165 A
max. inrush current Ip (200µs) = 800 A
1500 VA cosφ= 0.5, μ-kontakt
inrush current Ip (20ms) = 165 A
max. inrush current Ip (200µs) = 800 A
Dimensions:
H x Ø mm: UTP 85 x 124, TAK 100 x 117
Visible portion when built into ceiling:
H x Ø mm: 37 x 117
Impulse output:
Optocoupler max. 2W
Impulse duration:
2 sec. Or 9 sec.
Push button:
3 push buttons
Halogen-Free:
Yes
