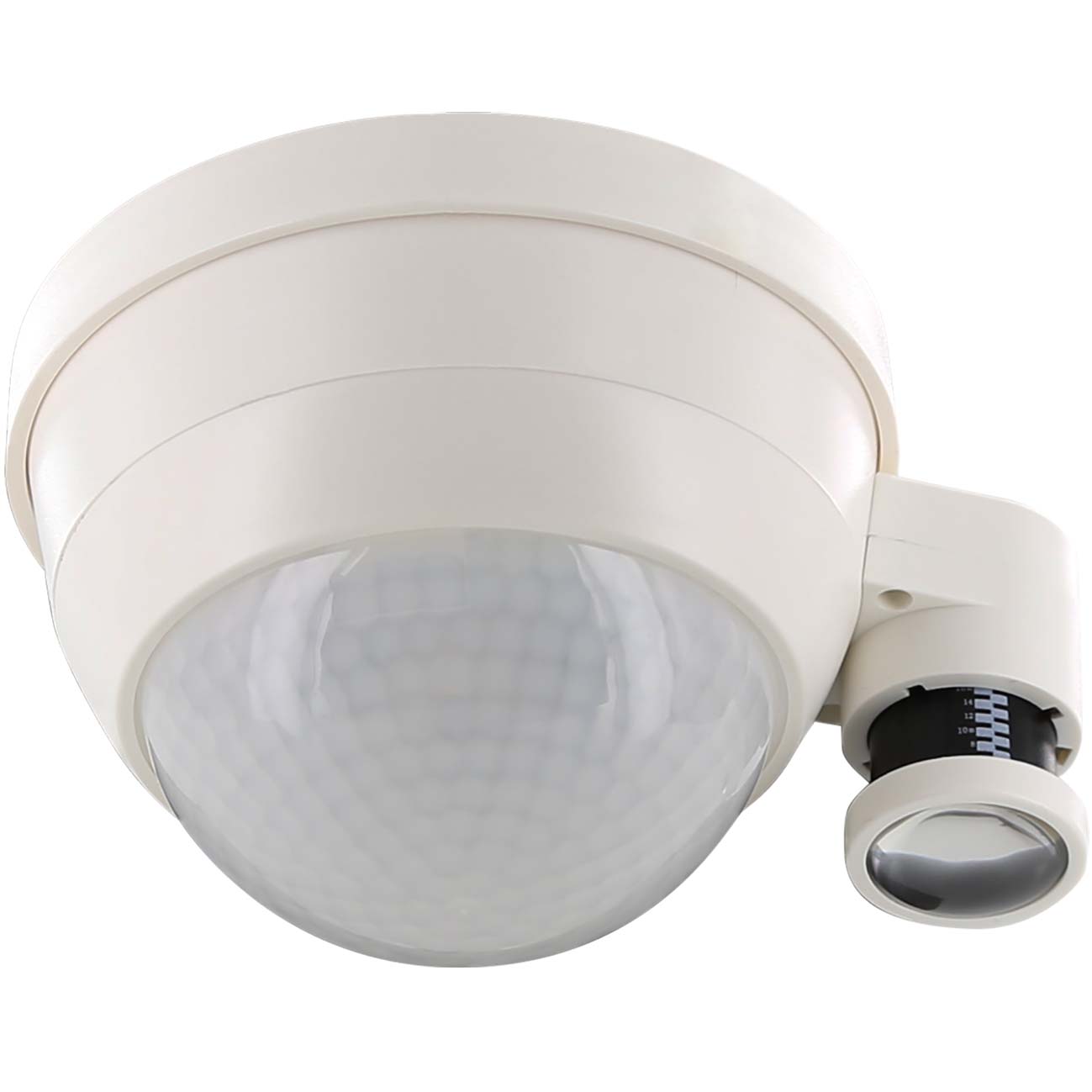

PD4-M-DACO-GH DALI-2
Supply voltage:
230 V / 50 Hz
Power consumption:
approx. 2W
Material Enclosure:
Polycarbonate, UV-resistant
Temperature range:
-25°C....+50°C
Protection category:
II
Extension of the detection area:
with slave detector
Area of coverage:
circular 360°

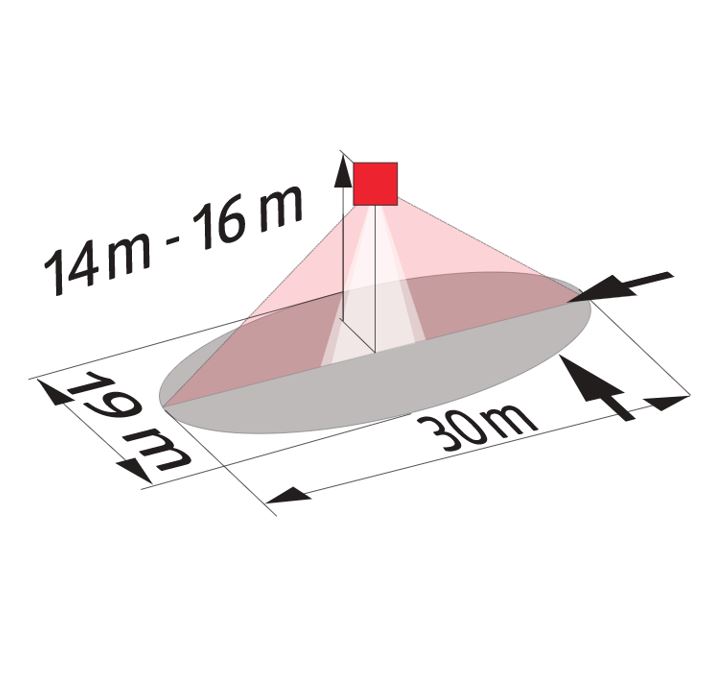

Range of coverage:
H 14m / T = 18°C:
tangential r 22m / Ø 44m
tangential r19m / Ø 30m
tangential r 22m / Ø 44m
tangential r19m / Ø 30m
Mounting height min./max./recommended:
5 m / 16 m / 14 m
Recommended height for mounting:
14m
Light measurement:
Mixed light, daylight + artificial light
Channel 1:
For lightning control DALI output: 80mA (guaranteed, 125mA (max.) Follow-up time: 1 - 150min Brightness set value: 10 - 2500 lux
Push button:
1 push button
Halogen-Free:
Yes
