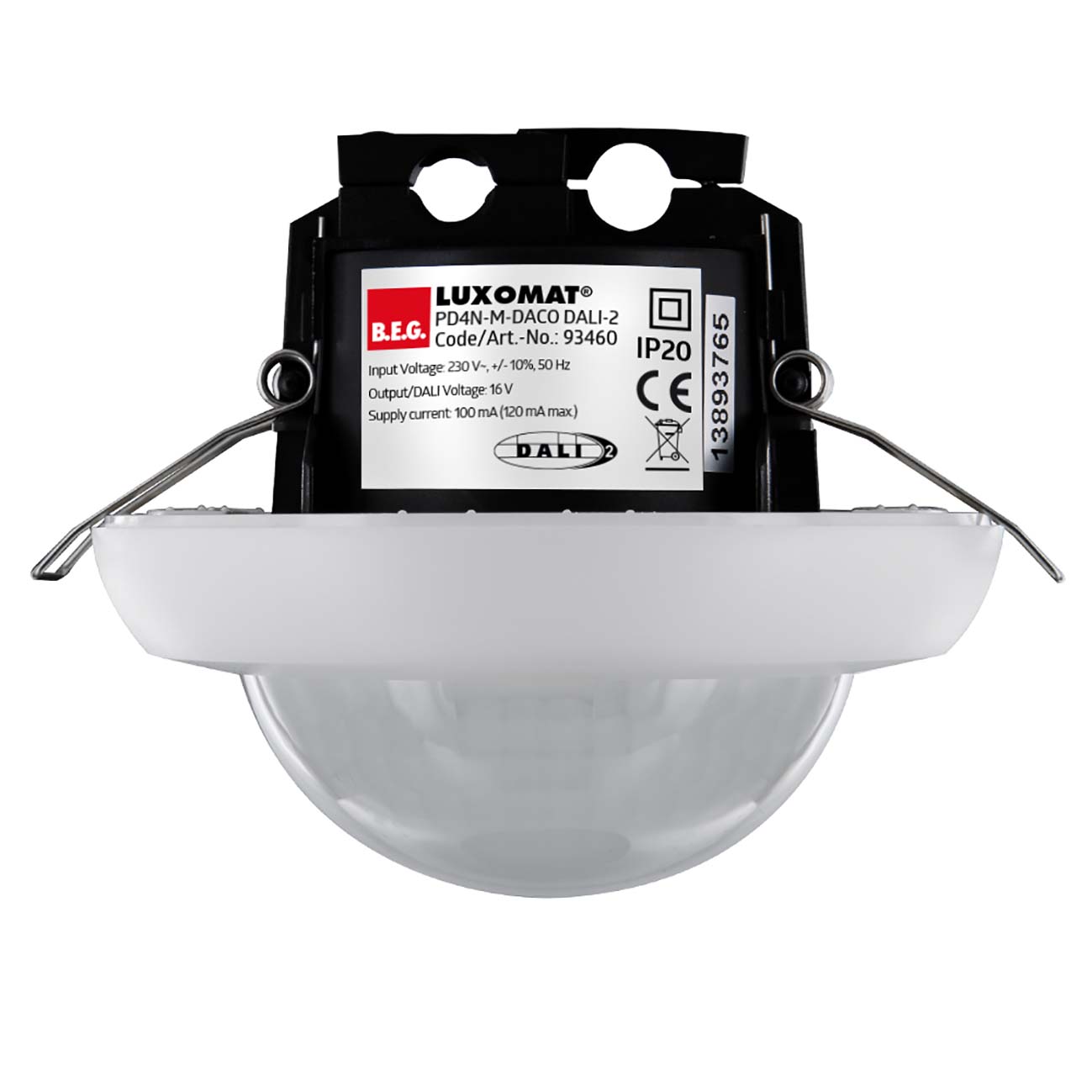

PD4N-M-DACO DALI-2

Create product sheet (PDF)

Questions/Order

Supply voltage:

230 V / 50 Hz

Power consumption:

approx. 2W

Material Enclosure:

Polycarbonate, UV-resistant

Temperature range:

-25°C....+50°C

Protection category:

Extension of the detection area:

with slave detector

Area of coverage:

circular 360°

Range of coverage:

Ø H 2.50m / T = 18°C:
seated 6.40m
tangential 24m
radial 8m

Recommended height for mounting:

2,5m

Light measurement:

Mixed light, daylight + artificial light

Channel 1:

For lightning control

DALI output:
80mA (guaranteed, 125mA (max.)

Follow-up time:
1 - 150min

Brightness set value:
10 - 2500 lux

Push button:

1 push button

Halogen-Free:

Yes

Manual_1301604_PD4N-M-DACO-DALI-2_sv_fi_no_en.pdf
