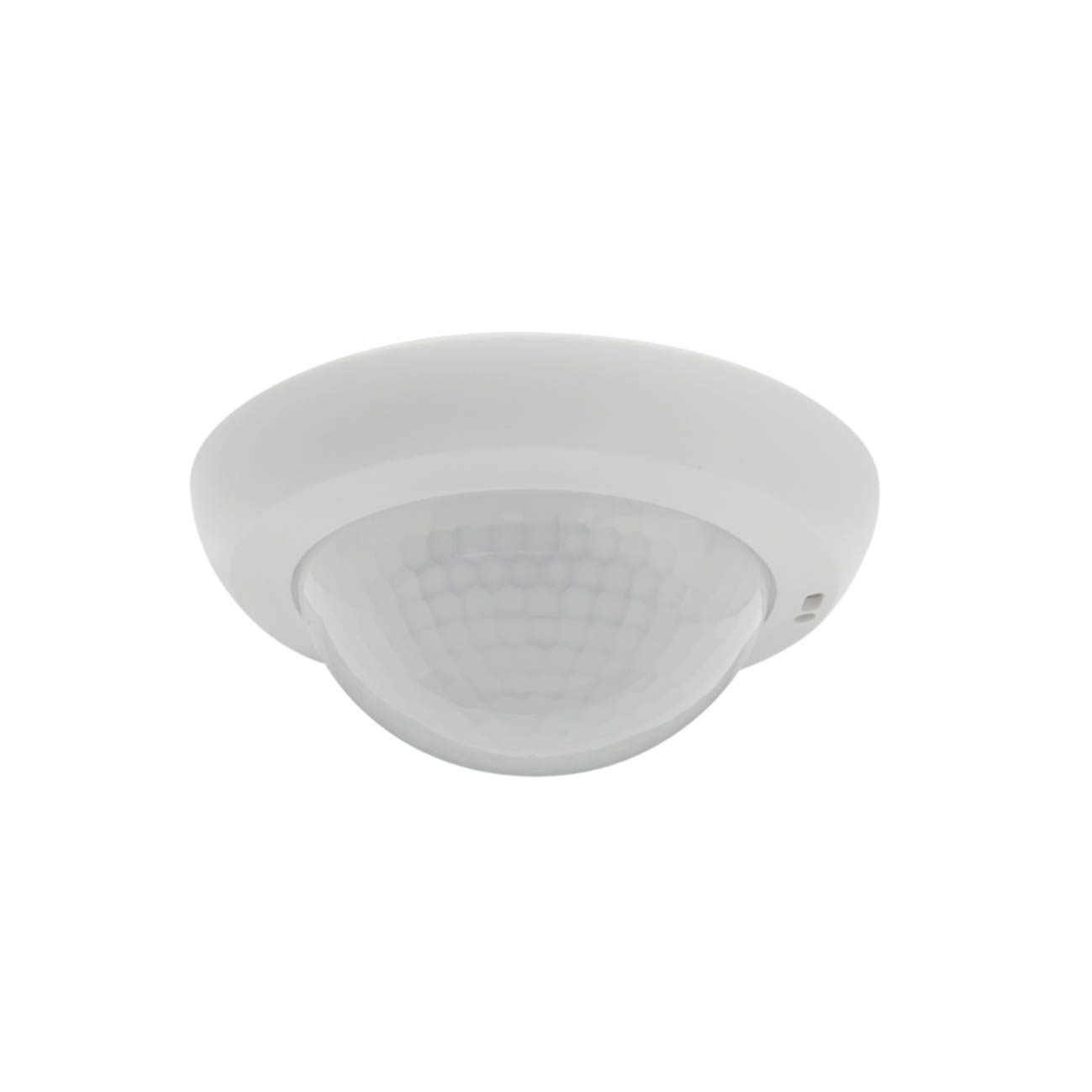

PD4N-KNXs-ST V.7.0
KNX Standard
Supply voltage:
24 V DC from KNX-BUS network
Power consumption:
12 mA
Material Enclosure:
Polycarbonate, UV-resistant
Ingress protection:
IP20
Settings:
ETS 5 Software
Light values:
5 - 2000 Lux
Extension of the detection area:
with detector in slave mode
Area of coverage:
circular 360°
Range of coverage:
Ø H 2.50m / T = 18°C:
seated 6.40m
tangential 24m
radial 8m
seated 6.40m
tangential 24m
radial 8m
Mounting height min./max./recommended:
2m/10m/2.5m
Recommended height for mounting:
2,5m
Light measurement:
Mixed light, daylight + artificial light

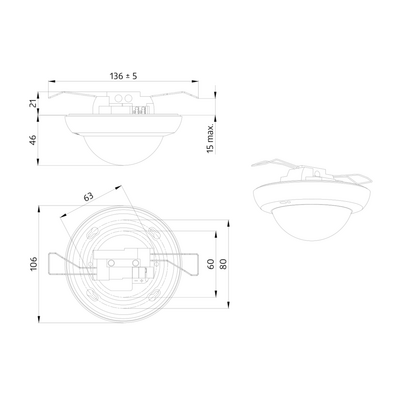

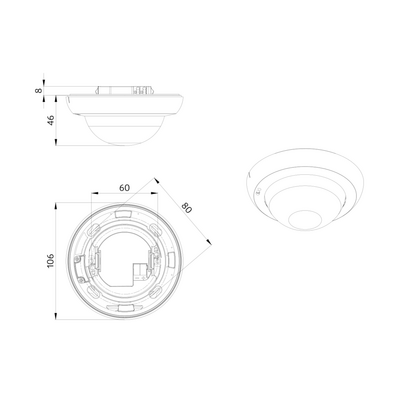

Measurements
Wiringdiagrams
