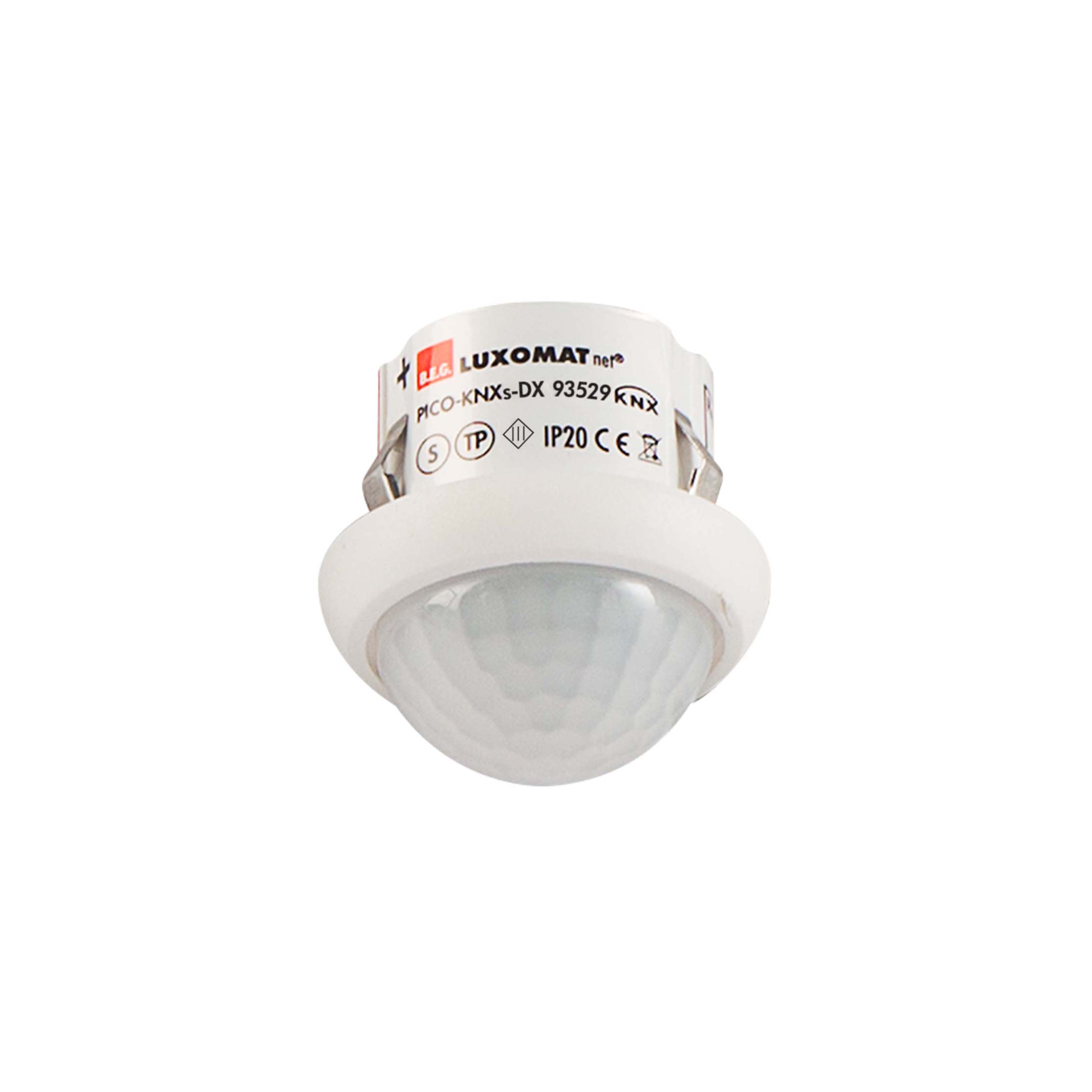

PICO-KNXs-DX V.7.0
KNX Deluxe
Supply voltage:
24 V DC from KNX-BUS network
Power consumption:
12 mA
Material Enclosure:
Polycarbonate, UV-resistant
Temperature range:
-5°C....+45°C
Ingress protection:
IP20
Settings:
ETS 5 Software
Light values:
5 - 2000 Lux
Extension of the detection area:
with detector in slave mode

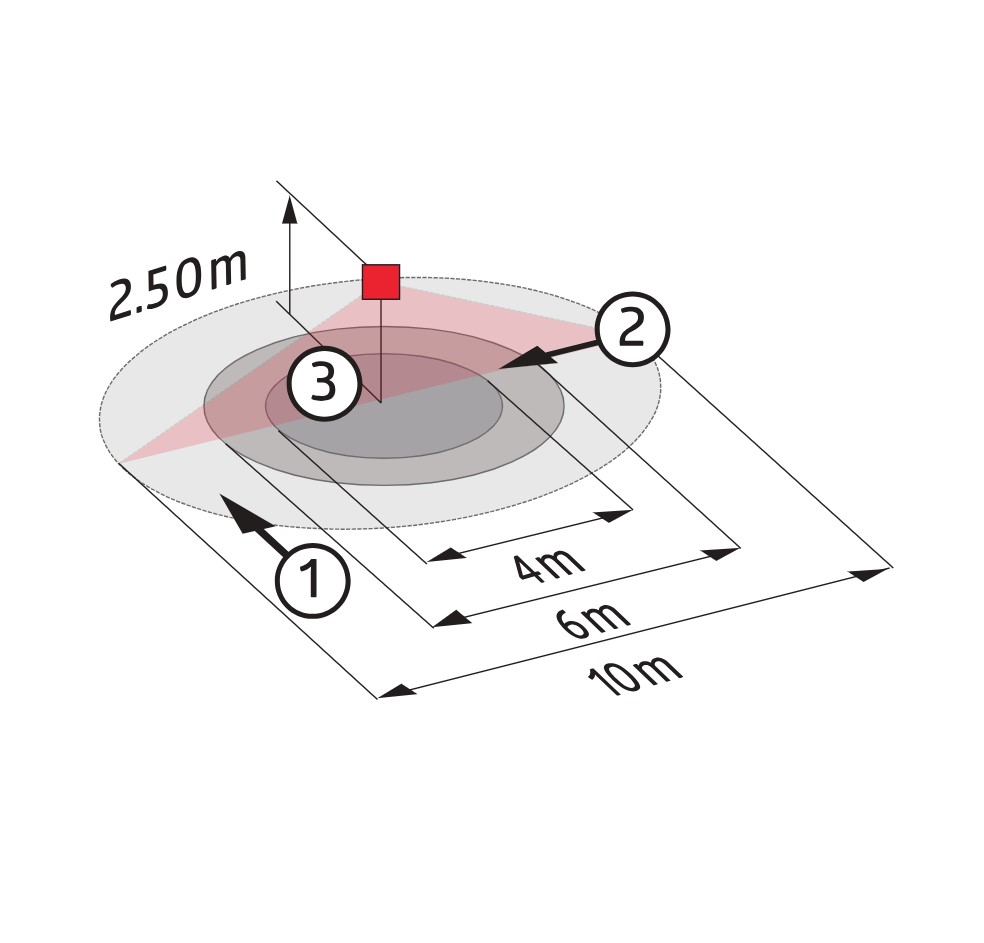

Range of coverage:
Ø H 2.50m / T = 18°C:
seated 4m
tangential 10m
radial 6m
seated 4m
tangential 10m
radial 6m
Mounting height min./max./recommended:
2m/5m/2.5m
Recommended height for mounting:
2,5m
Light measurement:
Mixed light, daylight + artificial light
Measurements

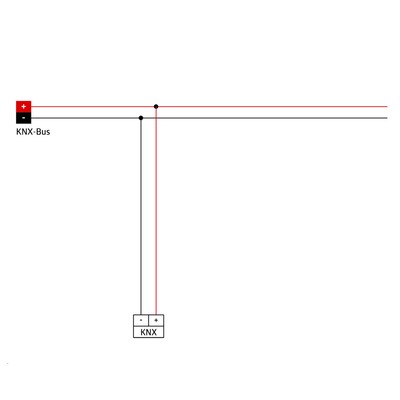

Wiringdiagrams
