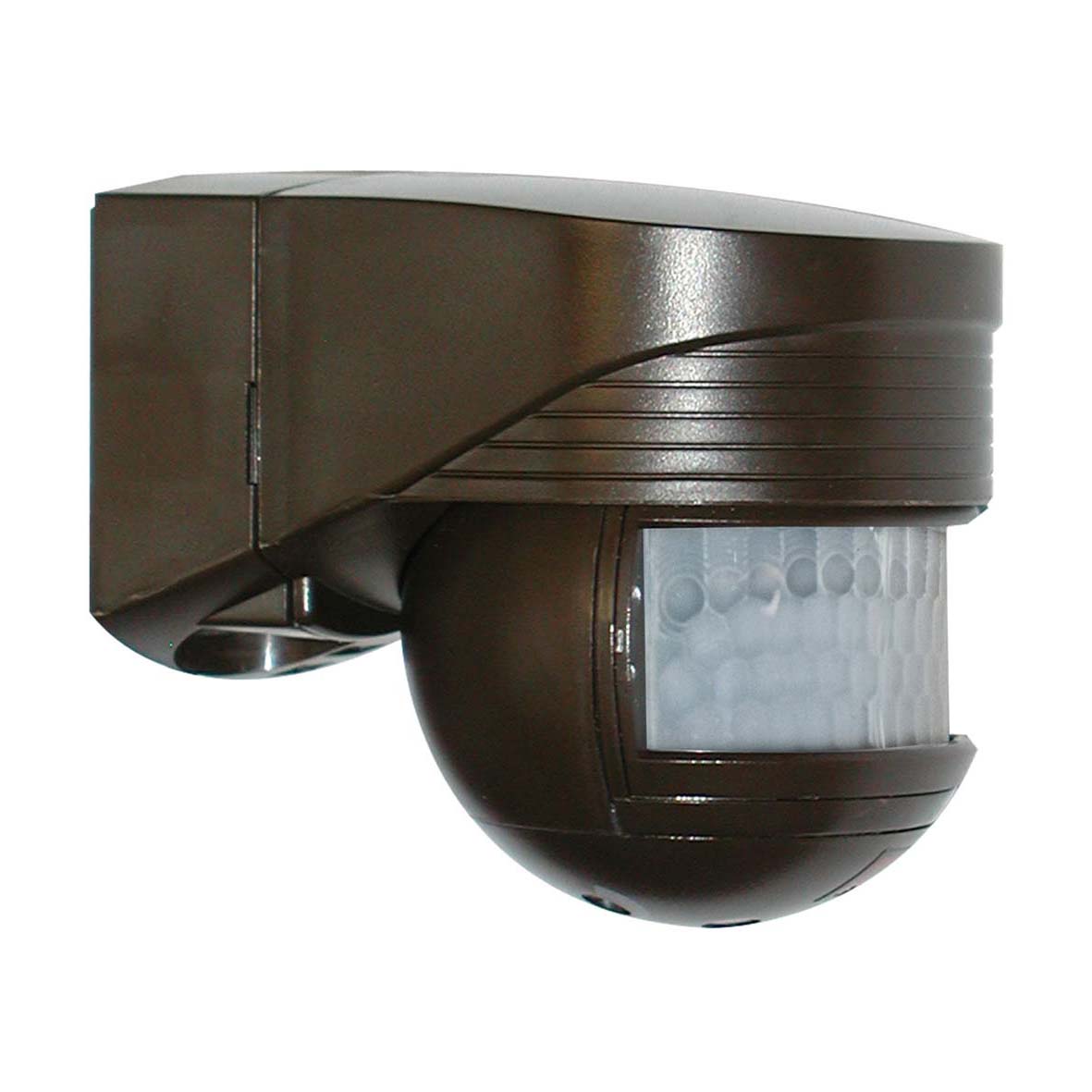

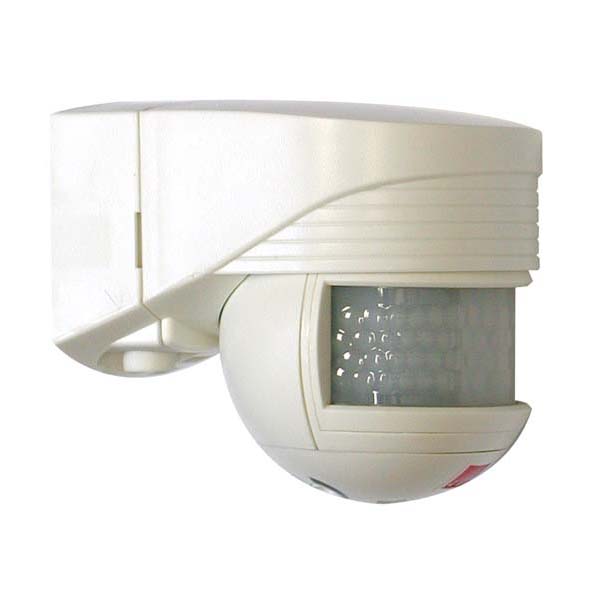

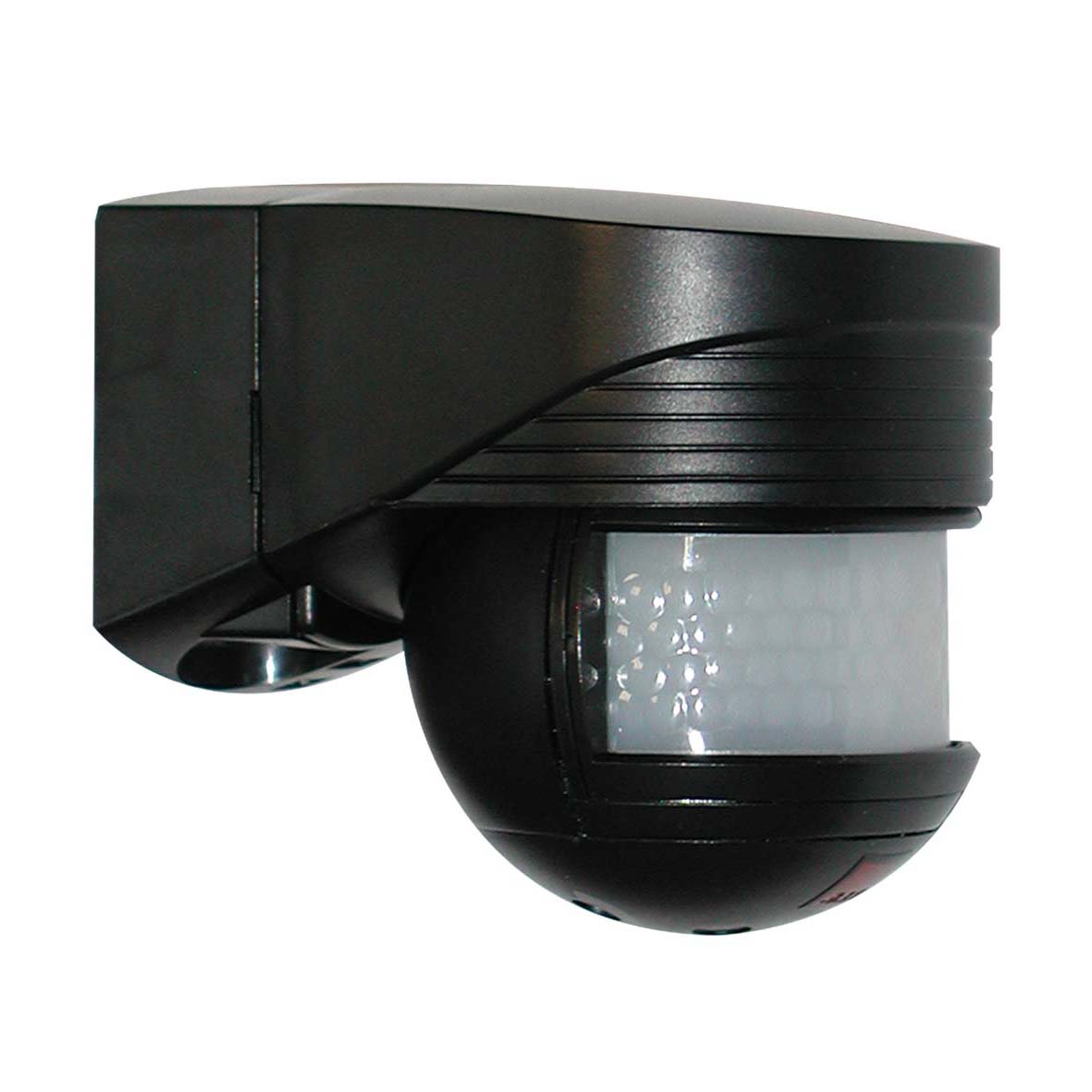

LC-Click 200
Supply voltage:
230V AC ±10%
Material Enclosure:
Polycarbonate, UV-resistant
Temperature range:
-25°C....+50°C
Protection category:
II
Settings:
Potentiometers
Light values:
10 - 300 Lux
Extension of the detection area:
Parallel connection with 1-channel motion detectors (max. 2 parallel)

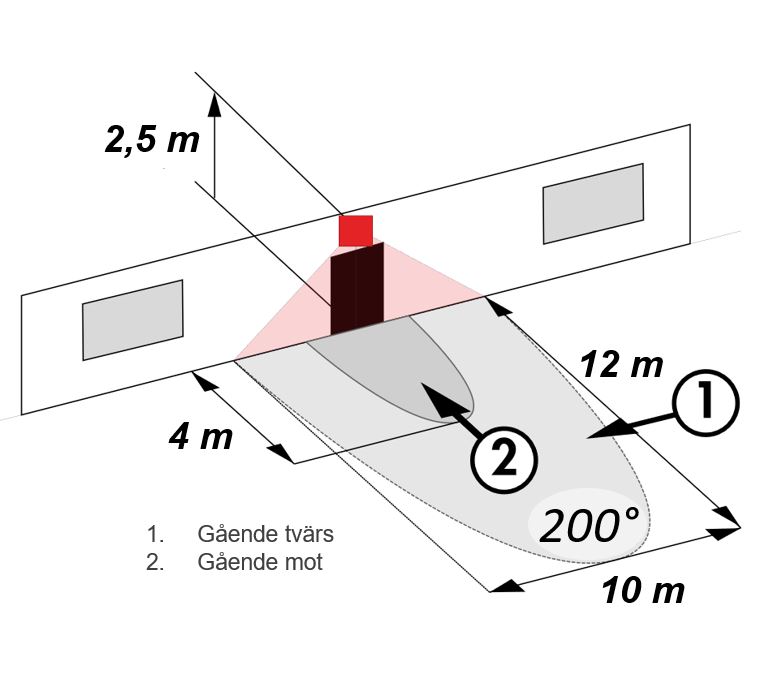

Area of coverage:
200°
Range of coverage:
H 2.50m: tangential max. 12m
Recommended height for mounting:
2,5m
Follow-up time:
4sec - 10min
Switching capacity:
1000 W, cos φ = 1
500 VA, cos φ = 0,5
500 VA, cos φ = 0,5
Dimensions:
80 x 91 x 67mm
Halogen-Free:
Yes
