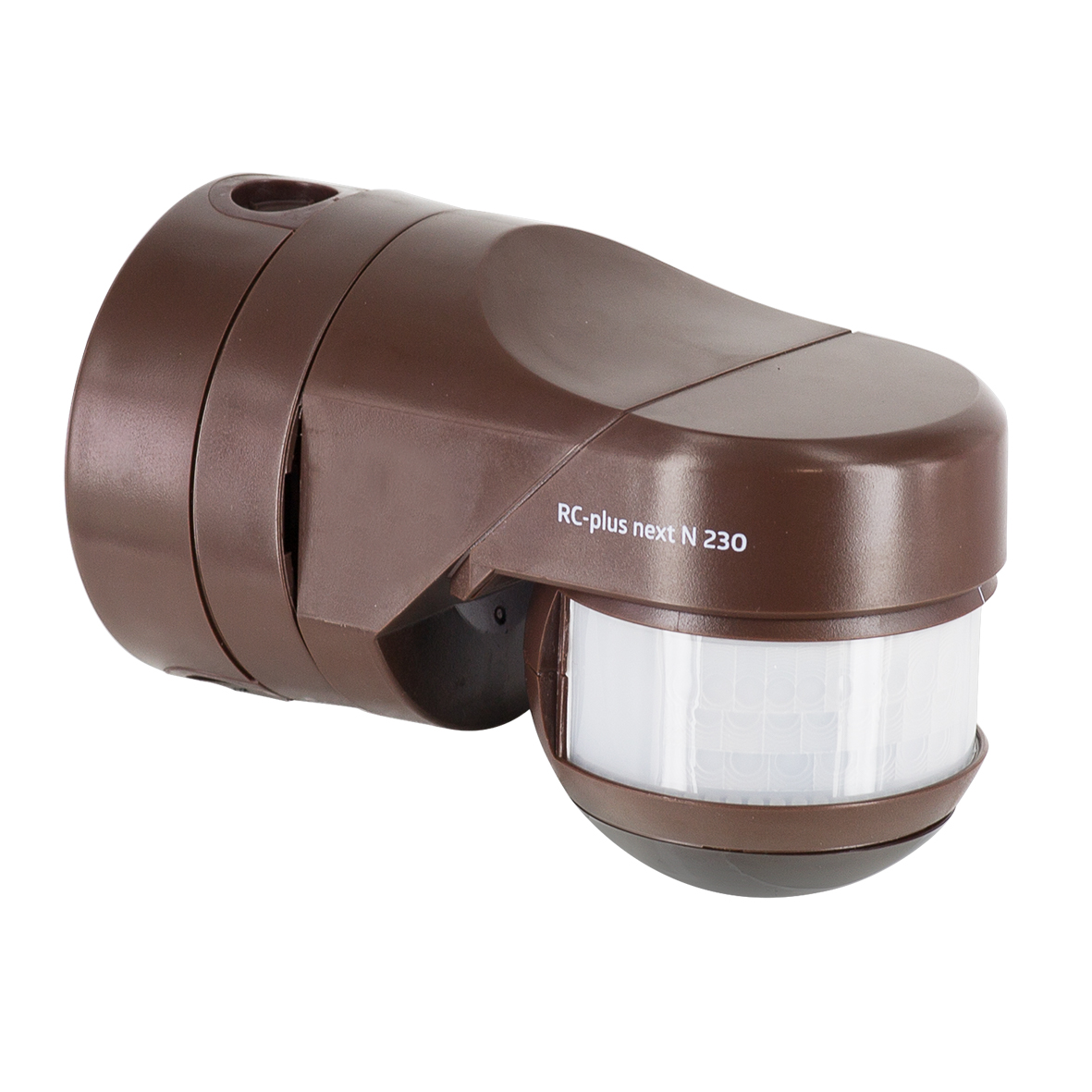

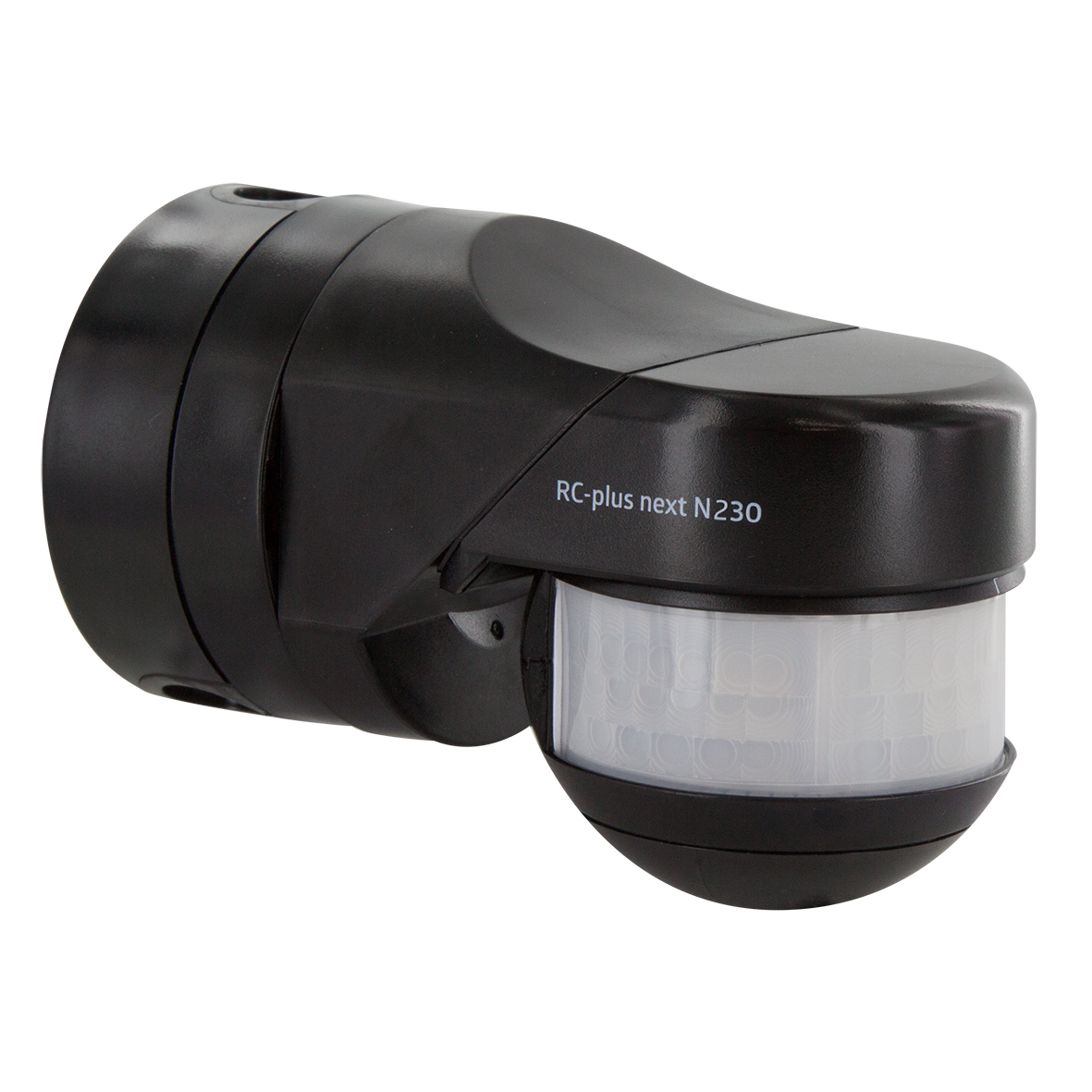

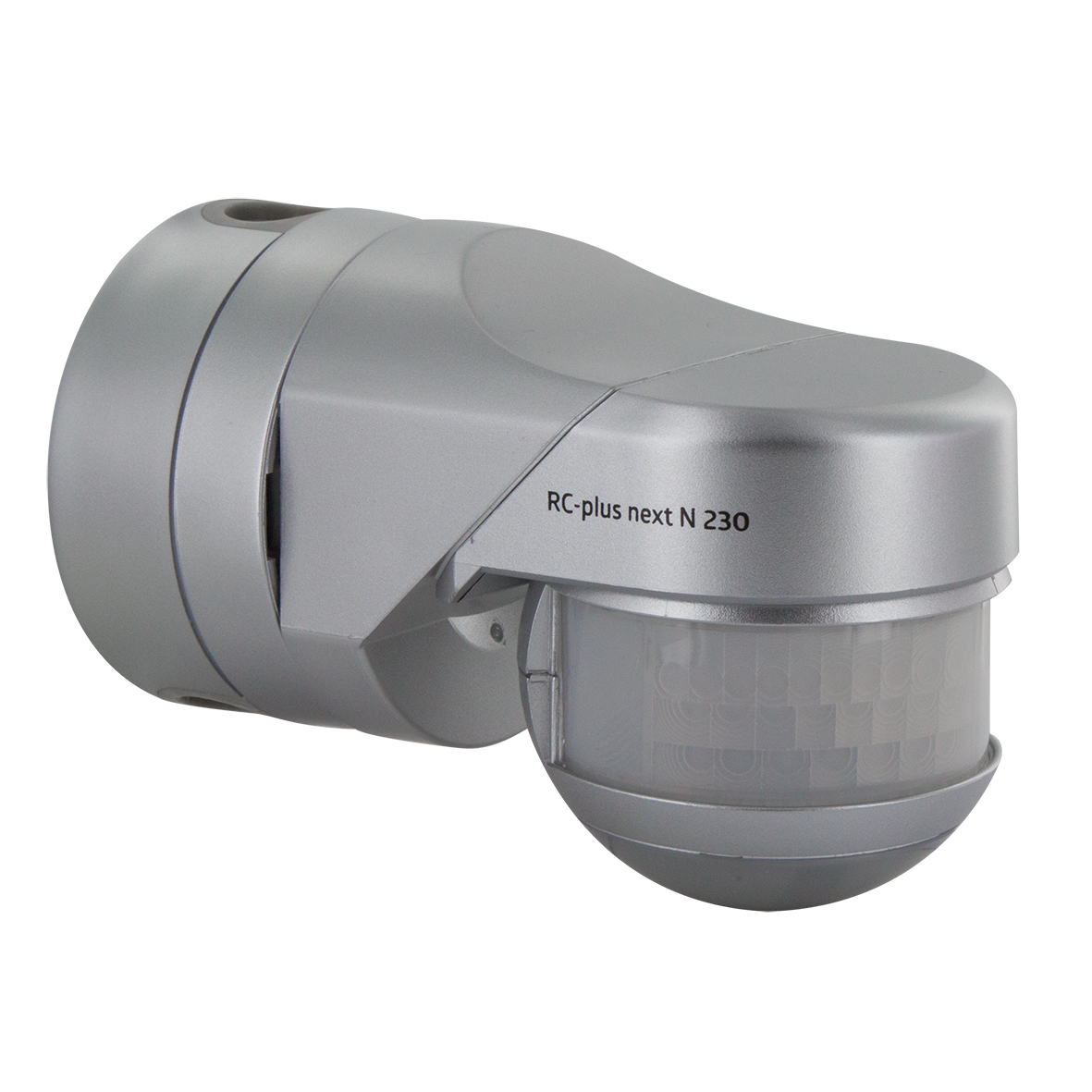

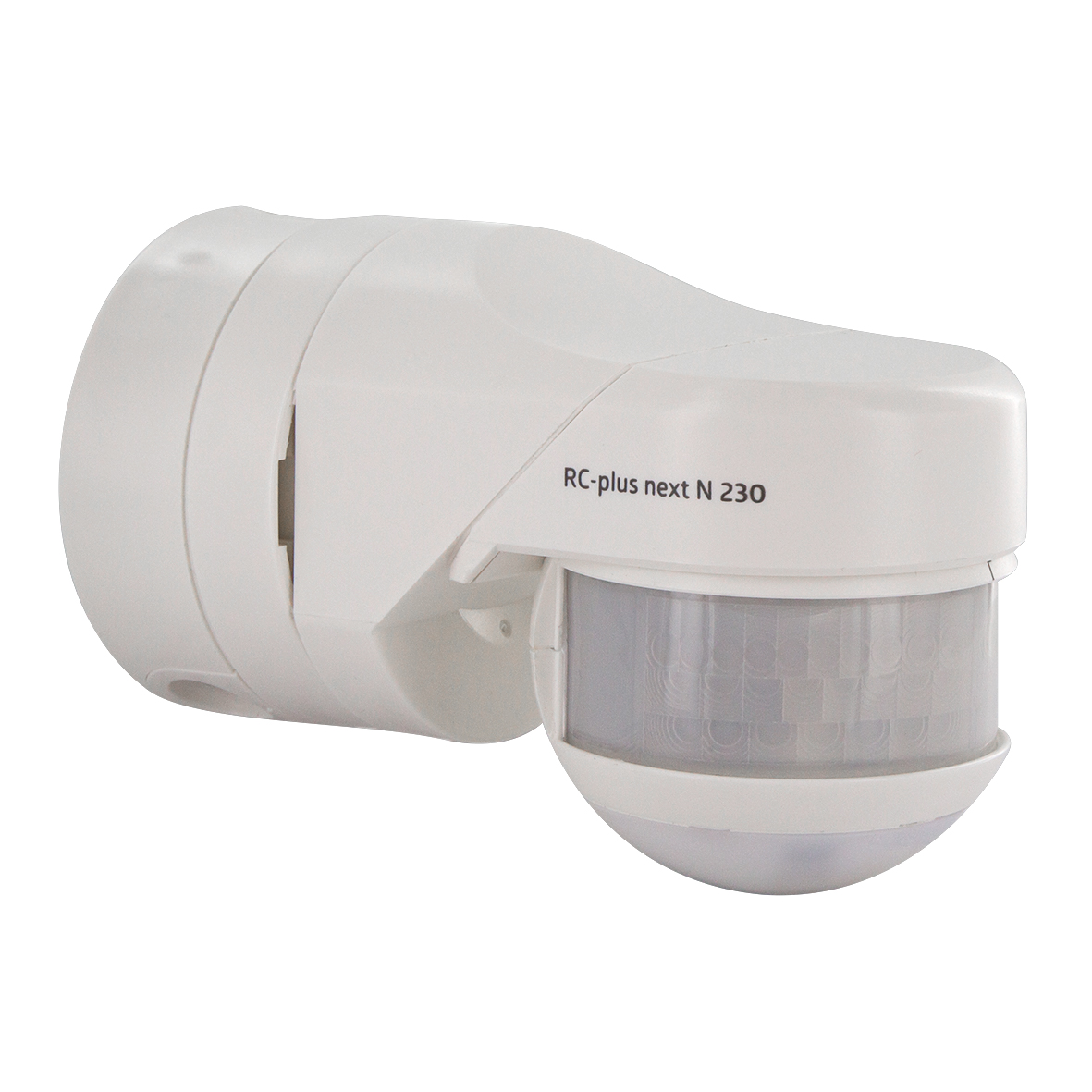

RC-plus next 230
Supply voltage:
110-240VAC / 50-60Hz
Power consumption:
0,75W
Material Enclosure:
Polycarbonate, UV-resistant
Temperature range:
-25°C....+50°C
Protection category:
II
Settings:
Potentiometers and remote control
Light values:
2 - 500 Lux
Extension of the detection area:
Parallel connection with 1-channel motion detectors (max. 5 parallel)
Area of coverage:
230°
Range of coverage:
H 2.50m:
tangential max. 20m
radial max. 6m
anti-creep max. 4m
tangential max. 20m
radial max. 6m
anti-creep max. 4m
Recommended height for mounting:
2,5m
Follow-up time:
15sec. - 16min. or pulse
Relay:
NOC/with pre-travel tungsten contact
Switching capacity:
3000 W, 230V~, 16 A cosφ=1
1500 VA cosφ= 0.5, μ-kontakt
inrush current Ip (20ms) = 165 A
max. inrush current Ip (200µs) = 800 A
1500 VA cosφ= 0.5, μ-kontakt
inrush current Ip (20ms) = 165 A
max. inrush current Ip (200µs) = 800 A
Dimensions:
85 x 121 x 71mm
Halogen-Free:
Yes
