Supply voltage:

110-240VAC / 50-60Hz

Power consumption:

approx. 0,3W

Material Enclosure:

Polycarbonate, UV-resistant

Temperature range:

-25°C....+50°C

Protection category:

II

Settings:

Remote control

Extension of the detection area:

with slave detector

Area of coverage:

circular 360°

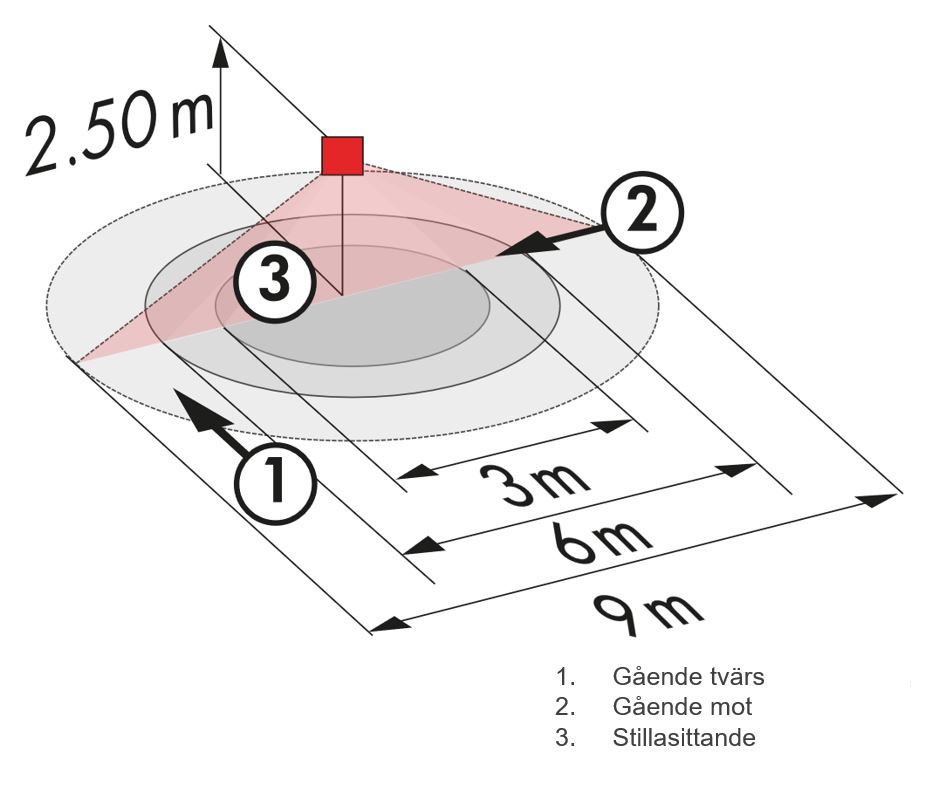

Range of coverage:

Ø H 2.50m / T = 18°C:
seated 3m
tangential 9m
radial 6m

Recommended height for mounting:

2,5m

Light measurement:

Mixed light, daylight + artificial light

Channel 1:

For lightning control, 1x µ-contact
NO contact with tungsten pre-make contact

Switching power:
2300 W, cos φ = 1
1150 VA, cos φ = 0,5
300W LED
max. inrush current Ip (20ms) = 165 A
max. inrush current lp (200 µs) = 800 A

Follow up time:
5 min - 30 min, Pulse

Switch-on threshold:
20 - 2000 lux

Dimensions:

H x Ø mm: TAK 60 x 52

Visible portion when built into ceiling:

H x Ø mm: 0,85 x 52

Push button:

1 push button

Halogen-Free:

Yes
