Supply voltage:

110-240VAC / 50-60Hz

Power consumption:

approx. 0,7W

Material Enclosure:

Polycarbonate, UV-resistant

Temperature range:

-25°C....+50°C

Protection category:

II

Settings:

Potentiometers, DIP switches and remote control

Extension of the detection area:

with slave detector

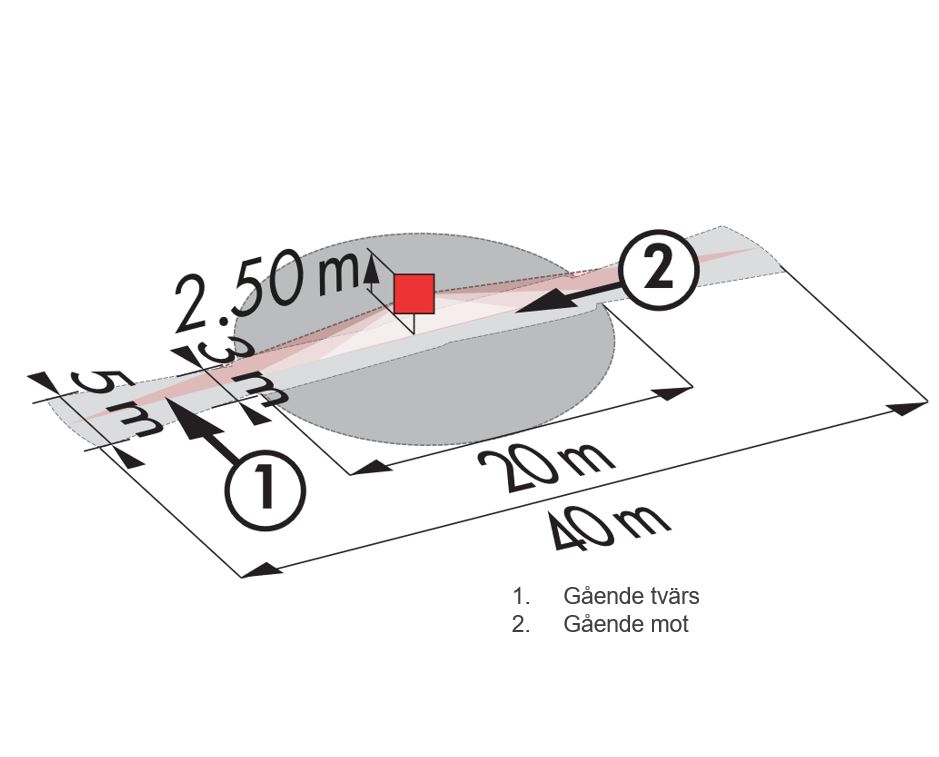

Area of coverage:

circular 360°

Range of coverage:

Ø H 2.50m / T = 18°C:
tangential 40m
radial 20m

Recommended height for mounting:

2,5m

Light measurement:

Mixed light, daylight + artificial light

Channel 1:

For lightning control, 1x µ-contact
NO contact with tungsten pre-make contact, additional NC-safety contact

Switching power:
2300 W, cos φ = 1
1150 VA, cos φ = 0,5
300W LED
max. inrush current Ip (20ms) = 120 A

Follow up time:
15 sec - 30 min, Puls

Switch-on threshold:
10 - 2000 lux

Dimensions:

H x Ø mm: UTP 73 x 101, TAK 103 x 97

Visible portion when built into ceiling:

H x Ø mm: 30 x 97

Push button:

1 push button

Halogen-Free:

Yes
