Supply voltage:

110-240VAC / 50-60Hz

Power consumption:

approx. 0,5W

Material Enclosure:

Polycarbonate, UV-resistant

Temperature range:

-25°C....+50°C

Protection category:

II

Settings:

Remote control

Extension of the detection area:

with slave detector

Area of coverage:

circular 360°

Range of coverage:

Ø H 9m / T = 18°C:
tangential 5,4m

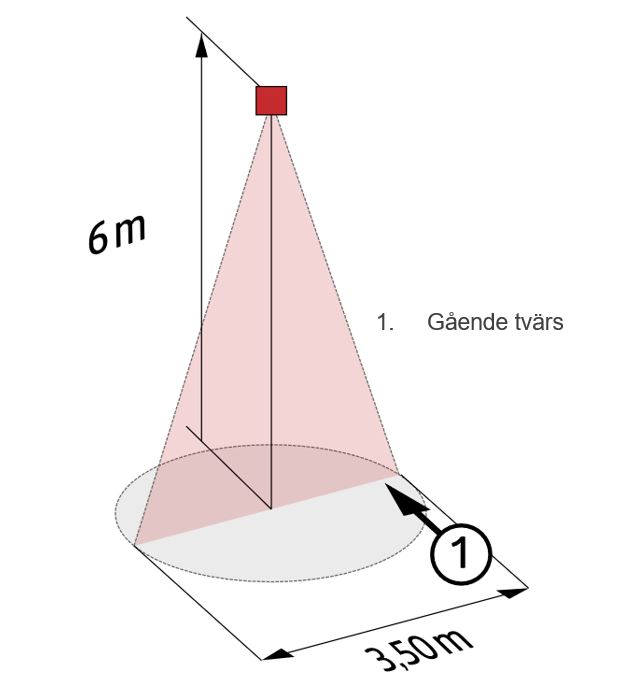

Ø H 6m / T = 18°C:
tangential 3,5m

Recommended height for mounting:

up to 9m

Light measurement:

Mixed light, daylight + artificial light

Channel 1:

For lightning control, 1x µ-contact
NO contact with tungsten pre-make contact

Switching power:
2300 W, cos φ = 1
1150 VA, cos φ = 0,5
300W LED
max. inrush current Ip (20ms) = 165 A
max. inrush current lp (200 µs) = 800 A

Follow up time:
5 min - 30 min, Pulse

Switch-on threshold:
20 - 1000 lux

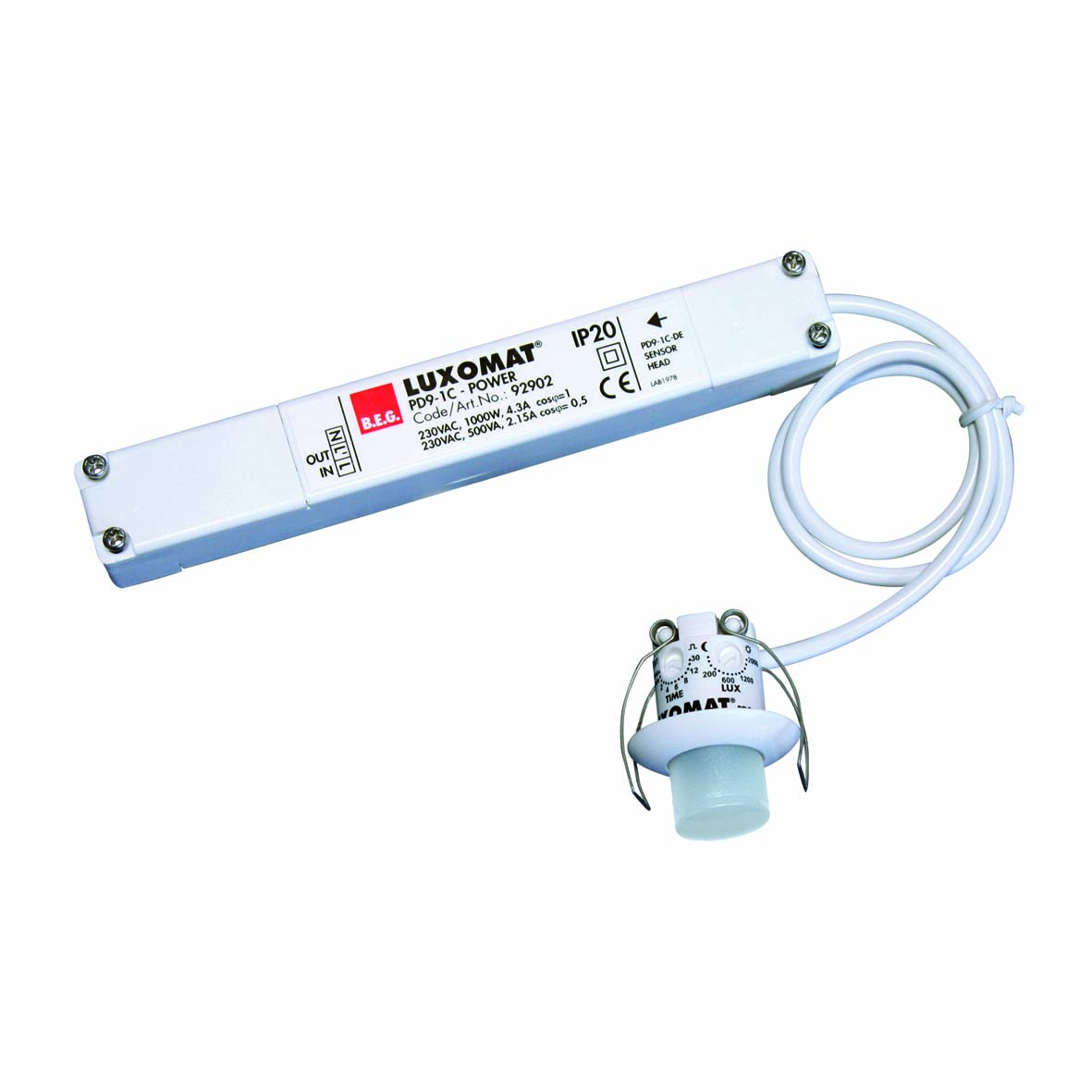

Dimensions:

Detector H=49 x Ø= 45 mm, Power supply 165 x 24 x 24 mm

Visible portion when built into ceiling:

H x Ø mm: 24 x 45

Cable length m:

0.45000000

Push button:

1 push button

Halogen-Free:

Yes
