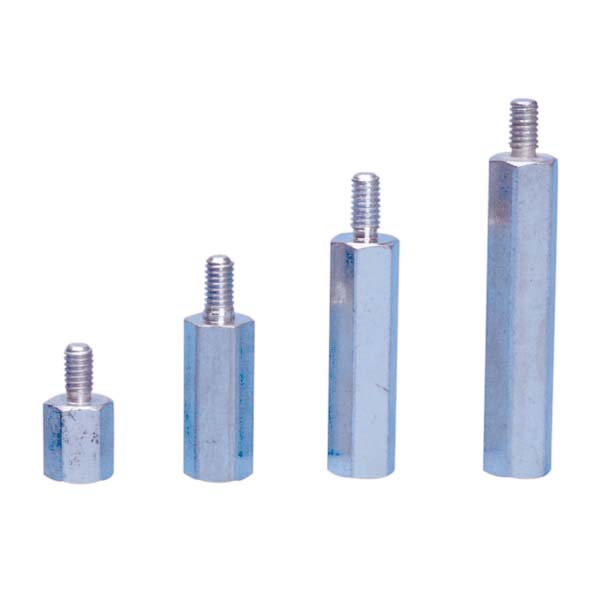

Distance Bolts Metal M5
Distance Sleeves for various applications. Standard length in mm. Other lengths on request.
- M5 (9)

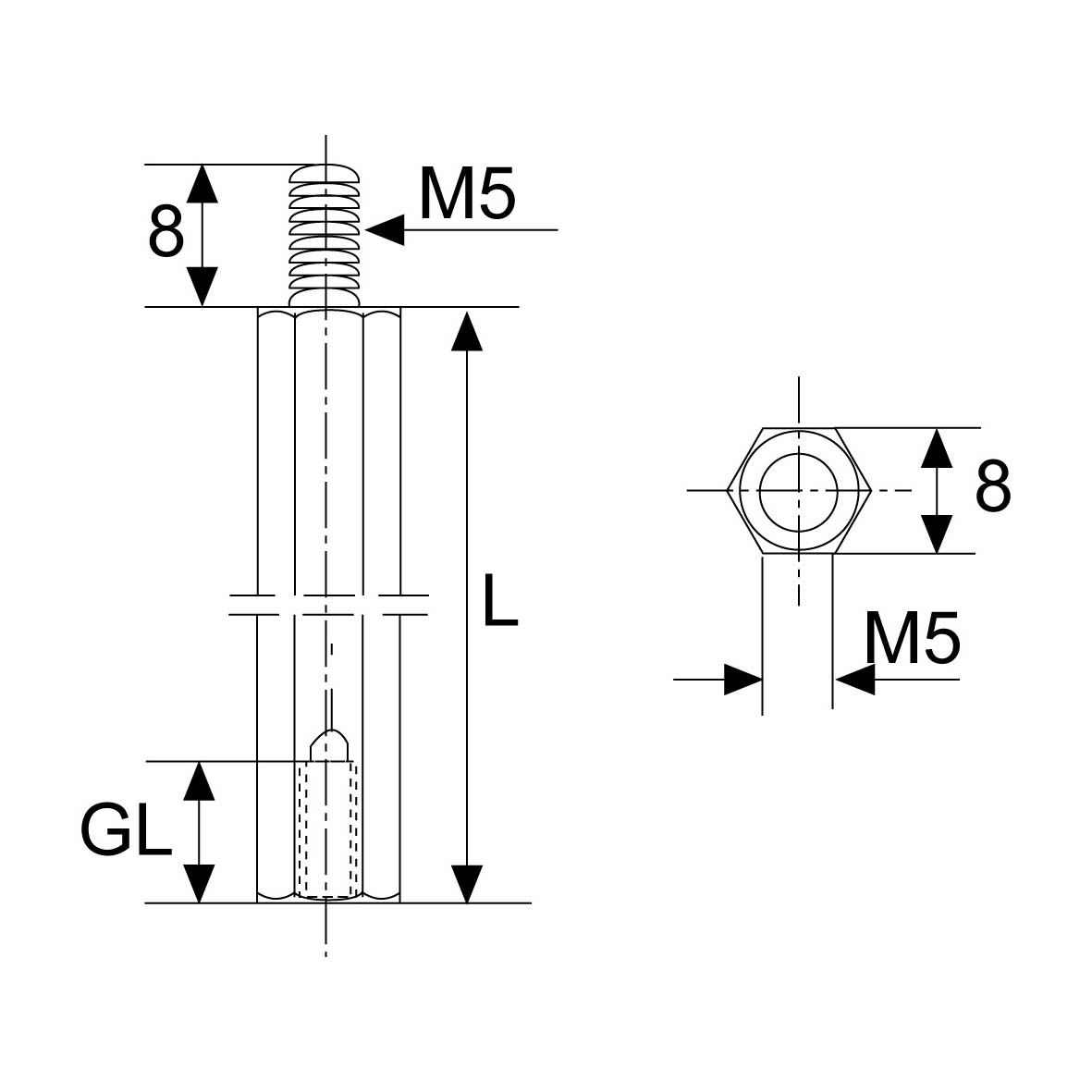

| E-number | Article no. | Material | L mm | Internal/External thread | GL mm | Pcs/pack |
| 2598520 | DI647-15 | Galvanized steel | 15 | M5 | 10 | 100 |
| 2598521 | DI647-30 | Galvanized steel | 30 | M5 | 10 | 100 |
| 2598522 | DI647-40 | Galvanized steel | 40 | M5 | 10 | 100 |
| 2598523 | DI647-50 | Galvanized steel | 50 | M5 | 10 | 100 |
| 2598524 | DI647-60 | Galvanized steel | 60 | M5 | 10 | 50 |
| 2598525 | DI647-70 | Galvanized steel | 70 | M5 | 10 | 50 |
| 2598526 | DI647-80 | Galvanized steel | 80 | M5 | 10 | 50 |
| 2598527 | DI647-110 | Galvanized steel | 110 | M5 | 10 | 50 |
| 2598528 | DI647-140 | Galvanized steel | 140 | M5 | 10 | 50 |
Material:
Galvanized steel
Tolerance lenght:
+/- 0,1 mm
