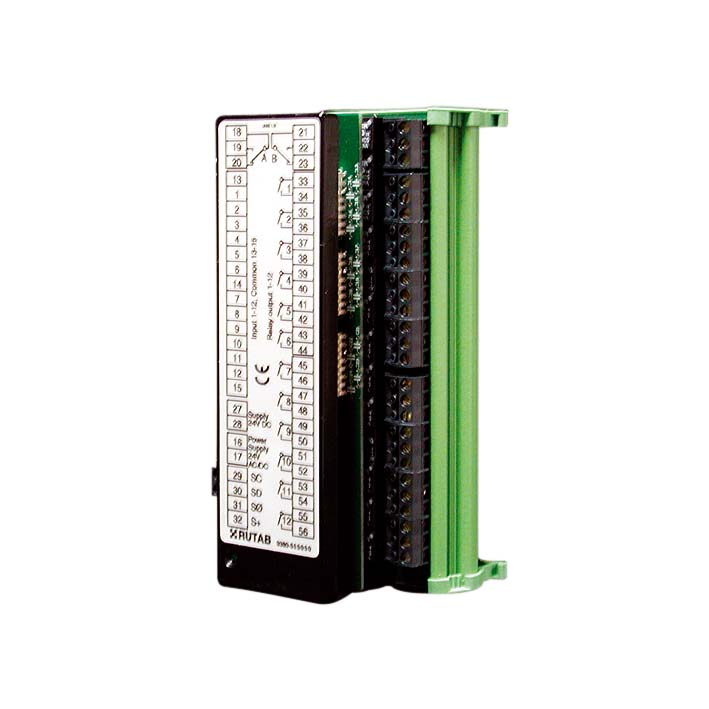

LAN 65-2 Relay Unit for LAN 63 & LAN 64

  • LAN 65-2 mirrors every input with one potential free relay closure for parallel transfer input information
  • Only a screened 3-core cable is needed between LAN 63/64 and Relaybox LAN 65-2 (for communication and power
  • The priority alarms function are transfered to the LAN 65-2

Create product sheet (PDF)
Questions/Order
  • Compact measurements 153x90x75mm
  • DIN-rail mounting

Technical description

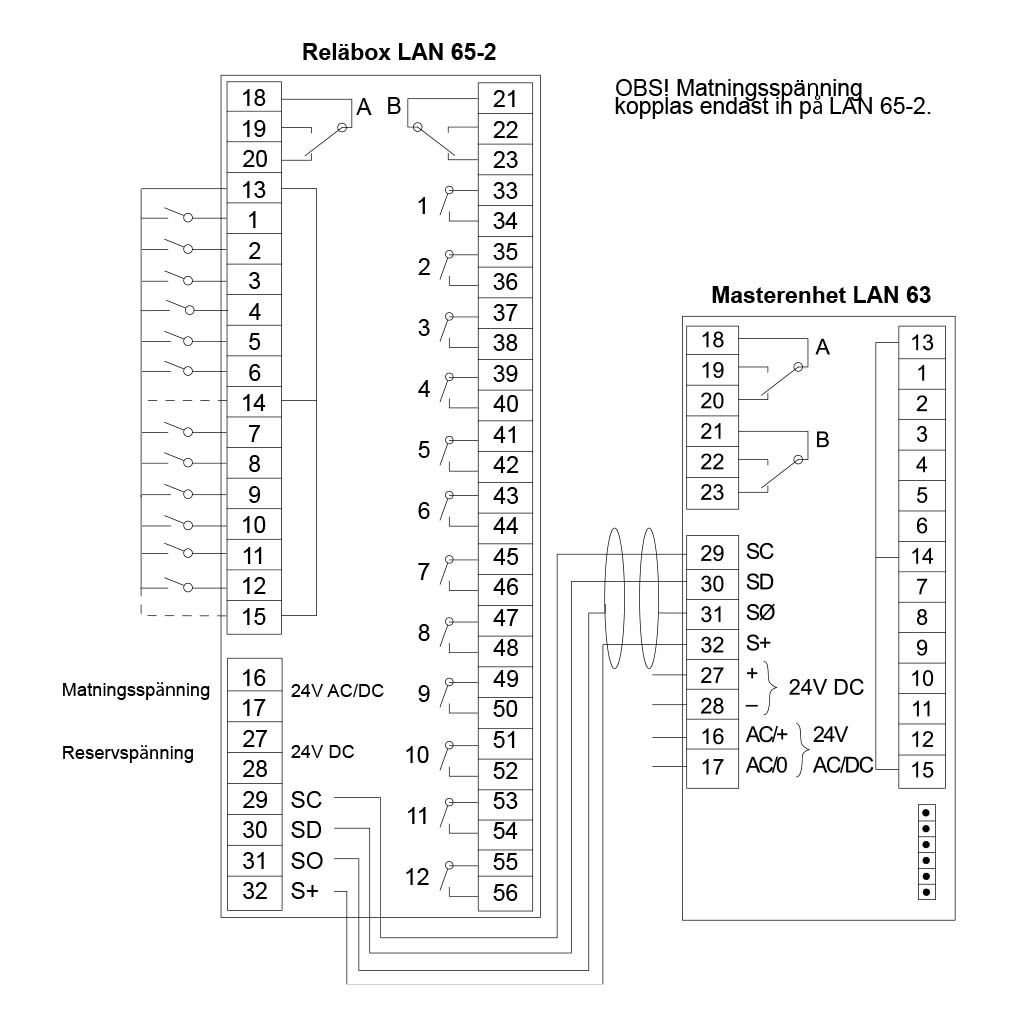

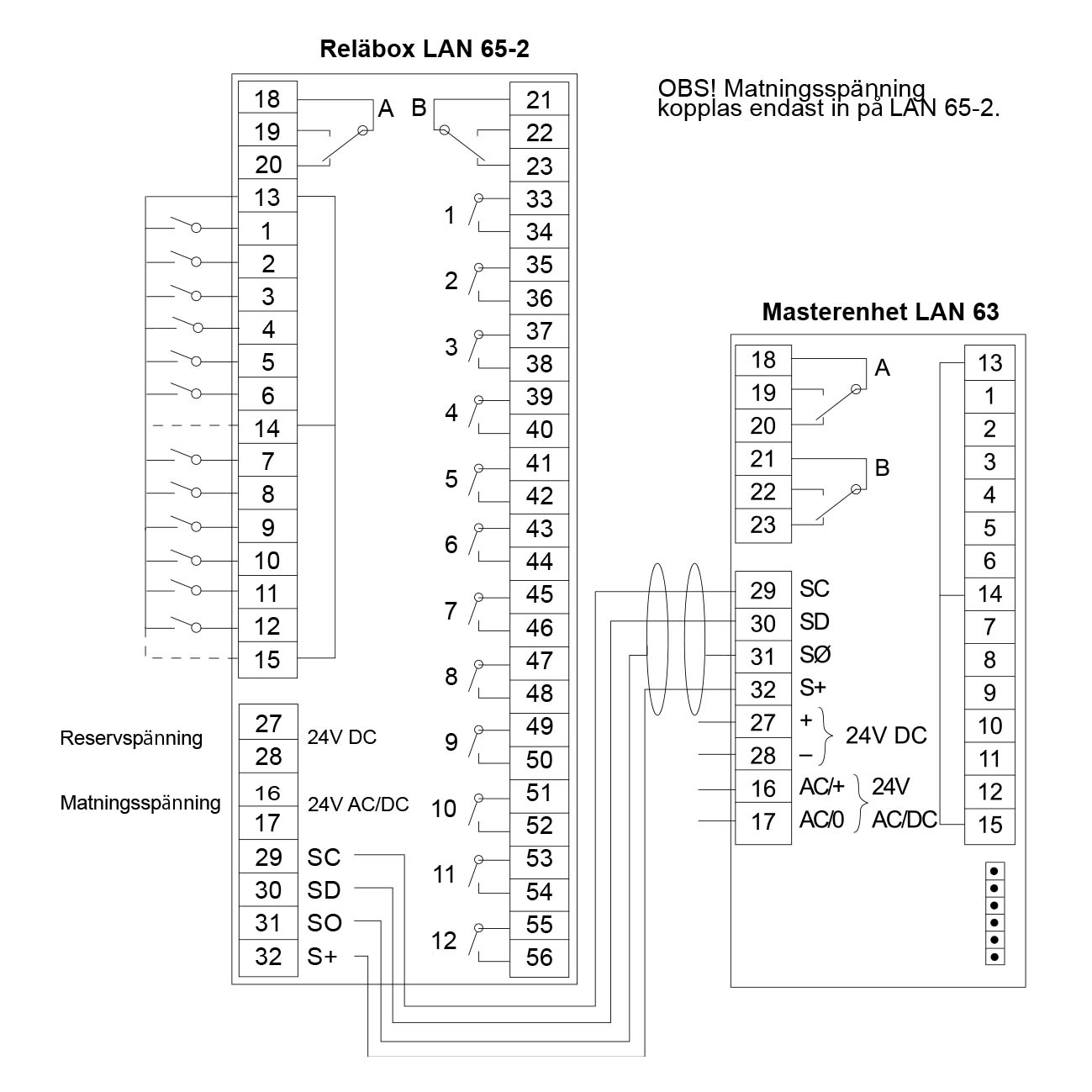

The connection of the LAN 65-2 to the LAN 63 or LAN 64 enables simple wiring within a cabinet.
When the LAN 65-2 is connected, all in and outputs from the master/slave panel is being transferred to the LAN 65. Furthermore the LAN 65-2 mirrors every input with one potential free relay closure for parallel transfer input information (Terminal 33 - 56).
Active input signals, results after the input delay, programmed on the LAN 63, 64 closure of the output relay contacts (Term. 33 - 56), the output relays stays closed until the input signal is deactivated and acknowledged by the operator.
The LAN 65-2 simplifies all connections within a cabinet due to that all inputs and outputs from the LAN 63, 64 is being transferred to the LAN 65-2.
The programming of the functions of the LAN 65 is easily being done from the LAN 63, 64.
All indications of the LAN 65-2 status are being done on the LAN 63, 64.

Normal / Idle
Green POWER LED active indicating supply voltage.



Inputs:
Alarm at closing or opening contact < 1000 Ohm
Indicators:
Green LED for supply voltage
Wiring for input sensors:
2 wire, max 100m for 0,5 mm² wire. Installed remotely from main cables.
Supply voltage:
24 V AC/DC -10% - +20%
Power consumption:
Operation 40 mA, alarm 190 mA max
Contact rating:
1 A at 28 V AC/DC (C/O and Closing contacts)
Sum output:
Closing contact
Input activation current:
3 mA
Temperature range:
-20°C....+50°C
Ingress protection:
IP20
Weight:
0,40 kg
