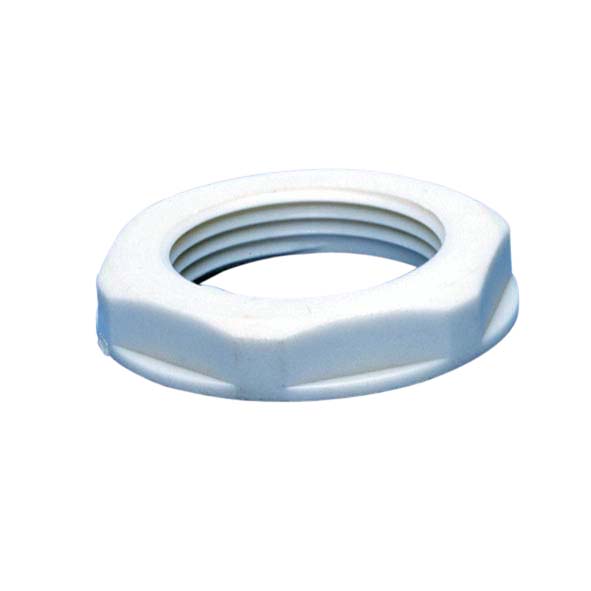

Locknut Polyamide RAL 7035 (EG) PG
Only for use together with cable glands with E-number 1459852 - 72 & EL-number 1242131 - 40.
- PG7/12,5 (1)
- PG9/15,2 (1)
- PG11/18,6 (1)
- PG13,5/20,4 (1)
- PG16/22,5 (1)
- PG21/28,3 (1)
- PG29/37,0 (1)
- PG36/47,0 (1)
- PG42/54,0 (1)
- PG48/59,3 (1)

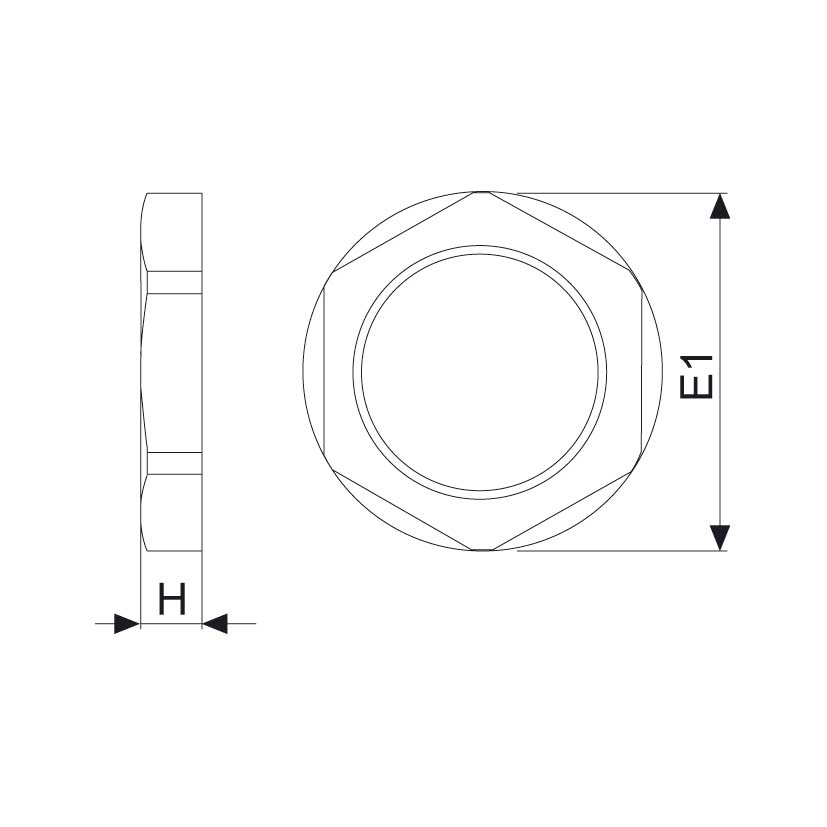

| E-number | Internal thread | H mm | E1 mm | Pcs/pack |
| 1465762 | PG7/12,5 | 5 | 20.8 | 100 |
| 1465765 | PG9/15,2 | 5 | 23 | 100 |
| 1465768 | PG11/18,6 | 5 | 26.3 | 100 |
| 1465770 | PG13,5/20,4 | 6 | 29.2 | 100 |
| 1465772 | PG16/22,5 | 6 | 32.7 | 100 |
| 1465778 | PG21/28,3 | 7 | 38.6 | 100 |
| 1465787 | PG29/37,0 | 7 | 49.6 | 50 |
| 1465797 | PG36/47,0 | 8 | 65 | 25 |
| 1465798 | PG42/54,0 | 8 | 71.7 | 25 |
| 1465799 | PG48/59,3 | 8 | 77.2 | 10 |
Material:
Polyamide PA6
Temperature range:
-25°C....+100°C
Colour:
Lightgrey RAL 7035
Halogen-Free:
Yes
