Cable Gland Polyamid IP68 RAL 7001 long connection thread Metric

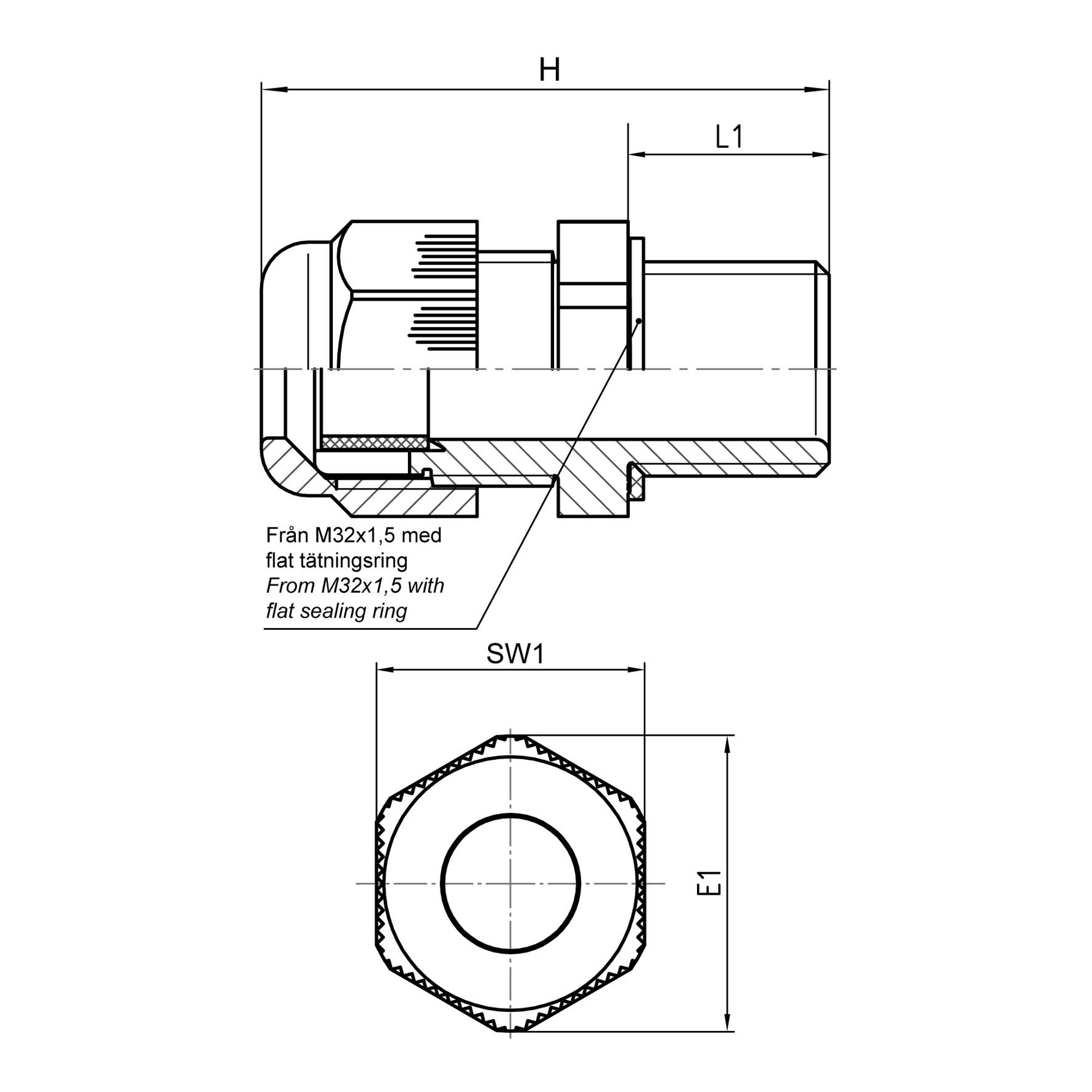

M32x1,5 - M63x1,5 provided with flat sealing ring made of Chloroprene on external thread.
- Long connection thread
- Integrated anchorage
- Easy-to-install
Material:
Polyamide PA6 V-2
Sealing ring:
Polychloroprene-Nitrile rubber CR/NBR
Ingress protection:
IP68 - 5 bar
Temperature range:
-20°C....+100°C (dynamisk)
-40°C (static, short term)
-40°C (static, short term)
Colour:
Grey RAL 7001
Test standard:
EN 62444 / UL514B
VDE licence:
40020902
UL / CSA-File:
E140310
SEV licence:
01.1135
Halogen-Free:
Yes
