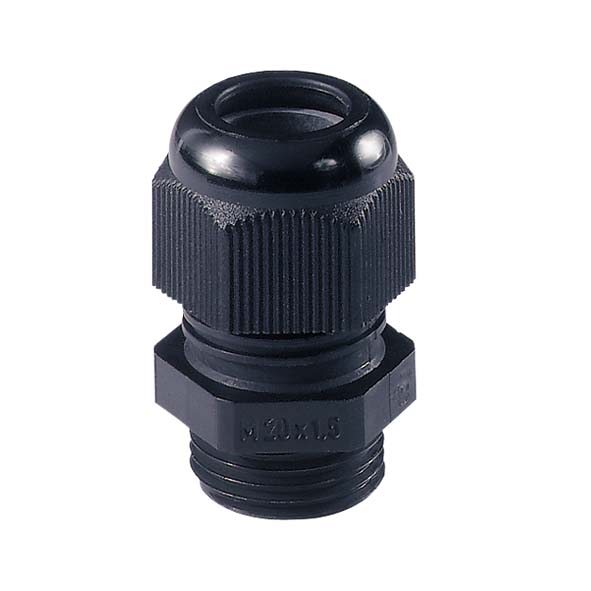

Cable Gland Polyamide IP68 RAL 9005 Metric
M32x1,5 - M63x1,5 provided with flat sealing ring made of Chloroprene on external thread.
- Integrated anchorage
- Easy-to-install
- M12x1,5 (1)
- M16x1,5 (1)
- M20x1,5 (2)
- M25x1,5 (1)
- M32x1,5 (1)
- M40x1,5 (1)
- M50x1,5 (1)
- M63x1,5 (1)
- 3 - 6 (1)
- 5 - 9,5 (1)
- 8 - 13 (1)
- 10 - 14 (1)
- 11 - 17 (1)
- 15 - 21 (1)
- 19 - 28 (1)
- 27 - 35 (1)
- 32 - 42 (1)

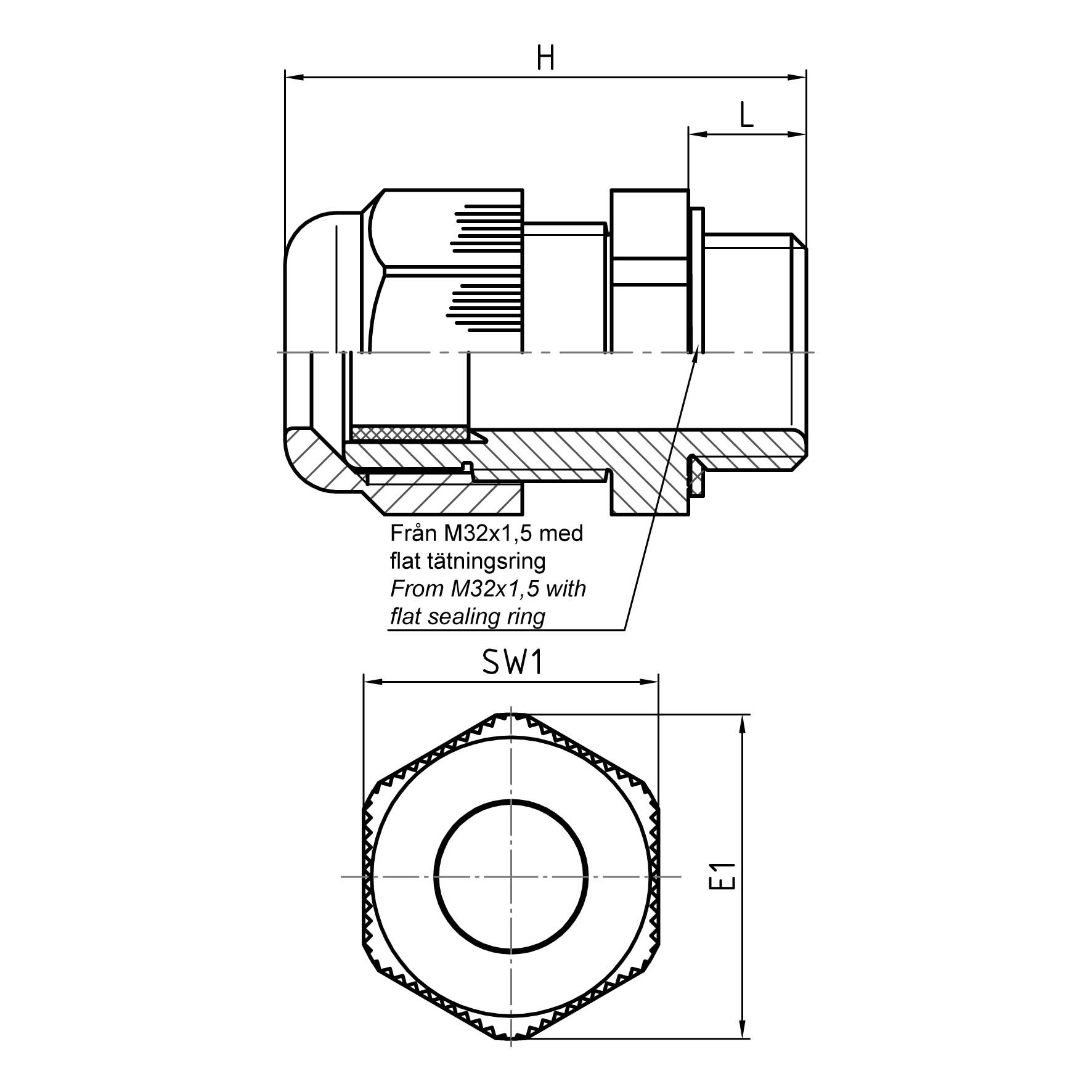

E-number | Connection thread | For cable Ø mm | L mm | H mm | SW1 mm | E1 mm | Pcs/pack |
1476121 | M12x1,5 | 3 - 6 | 8 | 31 | 15 | 16.5 | 100 |
1476122 | M16x1,5 | 5 - 9,5 | 8 | 35,5 | 20 | 22 | 100 |
1476123 | M20x1,5 | 8 - 13 | 8 | 36 | 24 | 26.5 | 100 |
1476129 | M20x1,5 | 10 - 14 | 8 | 40,5 | 27 | 29.3 | 50 |
1476124 | M25x1,5 | 11 - 17 | 8 | 43 | 29 | 32 | 50 |
1476125 | M32x1,5 | 15 - 21 | 10 | 50 | 36 | 40 | 25 |
1476126 | M40x1,5 | 19 - 28 | 10 | 51 | 46 | 51 | 10 |
1476127 | M50x1,5 | 27 - 35 | 12 | 61,5 | 55 | 60 | 5 |
1476128 | M63x1,5 | 32 - 42 | 12 | 65,5 | 68 | 75 | 5 |
Material:
Polyamide PA6 V-2
Sealing ring:
Polychloroprene-Nitrile rubber CR/NBR
Ingress protection:
IP68 - 5 bar
Temperature range:
-20°C....+100°C (dynamisk)
-40°C (static, short term)
-40°C (static, short term)
Colour:
Black RAL 9005
Test standard:
EN 62444 / UL514B
VDE licence:
40020902
UL / CSA-File:
E140310
SEV licence:
01.1135
Halogen-Free:
Yes
