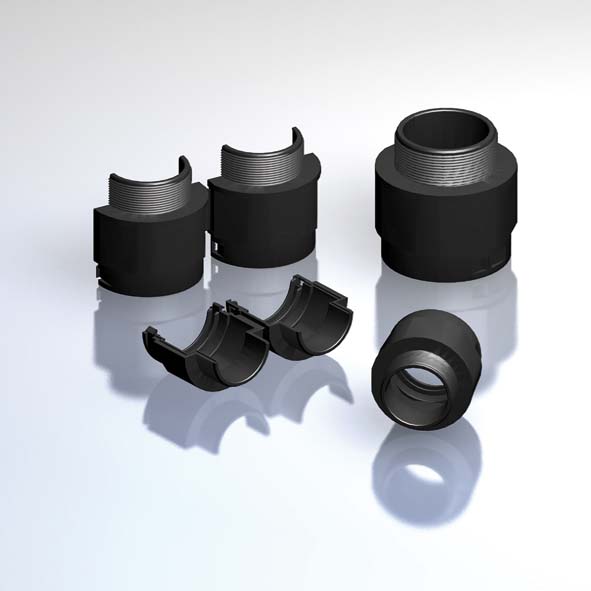

Divisible conduit connector for PACOF/PPCOF-conduits IP54 Metric
- For industries, plant construction, machine building as well as in house and electrical installations
- For retrofit installation or repair material.
- High-grade,specially formulated polyamide 6.
- Easy installation.
- Conduit can be installed in fitting prior to closing.
- Push-in installation of conduit into pre-installed fitting also possible.
- High conduit pull-out strength.
- Integrated thread sealing lip.
- High impact resistance.
- Very good chemical properties.
- Free from halogens and cadmium.
- Fits both conduit profiles-fine (T) and coarse (G).
- M16x1,5 (2)
- M20x1,5 (2)
- M25x1,5 (2)
- M32x1,5 (2)
- M40x1,5 (2)
- M50x1,5 (1)
- NW 10 (1)
- NW 12 (2)
- NW 17 (2)
- NW 23 (2)
- NW 29 (2)
- NW 36 (1)
- NW 48 (1)

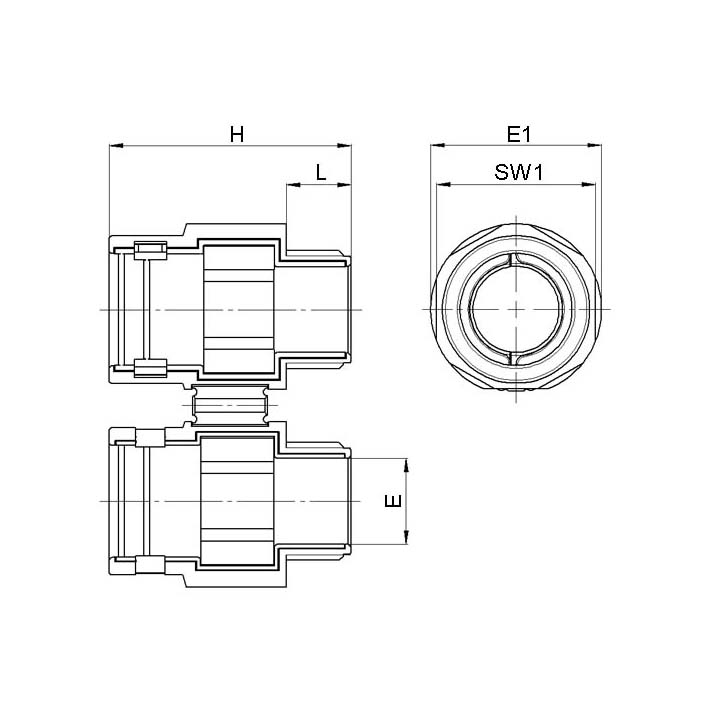

| E-number | Article no. | Connection thread | Conduit size | L mm | H mm | SW1 mm | E mm | E1 mm | Pcs/pack |
| 1410429 | BLNO-M160 | M16x1,5 | NW 10 | 13 | 36,5 | 17 | - | 20 | 50 |
| 1410431 | BLNO-M162 | M16x1,5 | NW 12 | 13 | 39,5 | 20 | - | 23 | 50 |
| 1410432 | BLNO-M202 | M20x1,5 | NW 12 | 13 | 39,5 | 20 | - | 23 | 50 |
| 1410433 | BLNO-M207 | M20x1,5 | NW 17 | 13 | 43,5 | 25 | - | 28.5 | 50 |
| 1410434 | BLNO-M257 | M25x1,5 | NW 17 | 14 | 44,5 | 25 | - | 28.5 | 50 |
| 1410435 | BLNO-M253 | M25x1,5 | NW 23 | 14 | 52,5 | 33 | - | 36.5 | 30 |
| 1410436 | BLNO-M323 | M32x1,5 | NW 23 | 17 | 56 | 33 | - | 36.5 | 30 |
| 1410437 | BLNO-M329 | M32x1,5 | NW 29 | 17 | 61 | 40 | - | 43 | 20 |
| 1410438 | BLNO-M406 | M40x1,5 | NW 29 | 21 | 65 | 40 | - | 43 | 20 |
| 1410439 | BLNO-M406 | M40x1,5 | NW 36 | 22 | 74,5 | 50 | - | 54 | 20 |
| 1410441 | BLNO-M508 | M50x1,5 | NW 48 | 22 | 80,5 | 62 | - | 66 | 10 |
Material:
Polyamide PA6
Ingress protection:
IP54
Temperature range:
-40°C....+100°C
Colour:
Black RAL 9005
Test standard:
EN 60529 / DIN 40050 / IEC 60529
Flame class:
UL94 HB
Halogen-Free:
Yes
