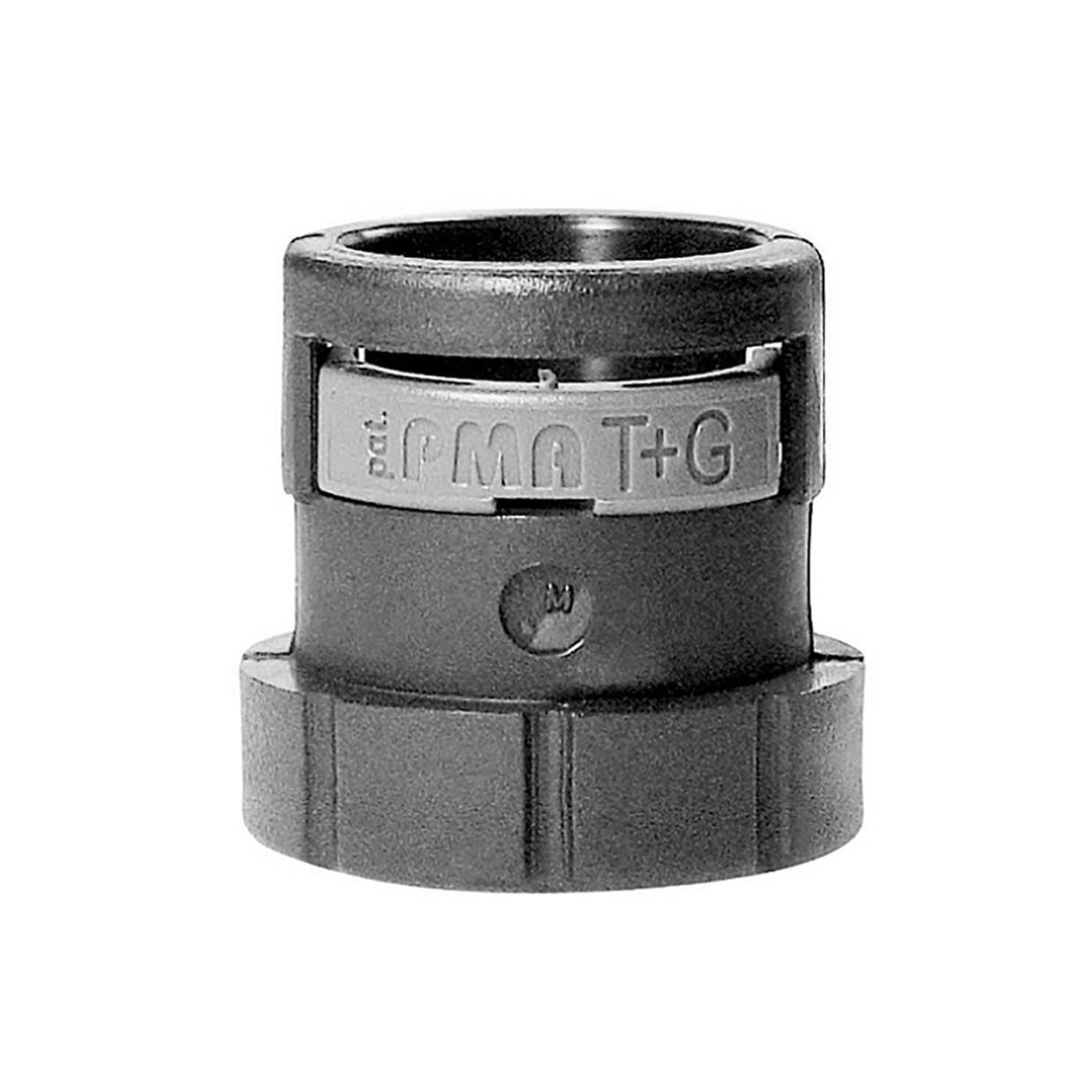

Female Thread Adapter metric
- For cable protection systems in a wide range of applications.
- High-grade, specially formulated polyamide 6.
- Very high impact resistance.
- Vibration-proof connection to PMAFLEX conduits.
- Easy installation: simply push the conduit in.
- High conduit pull-out strength.
- Can be easily re-opened with a screwdriver.
- Very good chemical properties.
- Free from halogens and cadmium.
- Fits both conduit profiles - fine (T) and coarse (G)
- M12x1,5 (1)
- M16x1,5 (2)
- M20x1,5 (1)
- M25x1,5 (1)
- M32x1,5 (1)
- M40x1,5 (1)
- M50x1,5 (1)
- M63x1,5 (1)
- 7 (1)
- 10 (1)
- 12 (1)
- 17 (1)
- 23 (1)
- 29 (1)
- 36 (1)
- 48 (2)

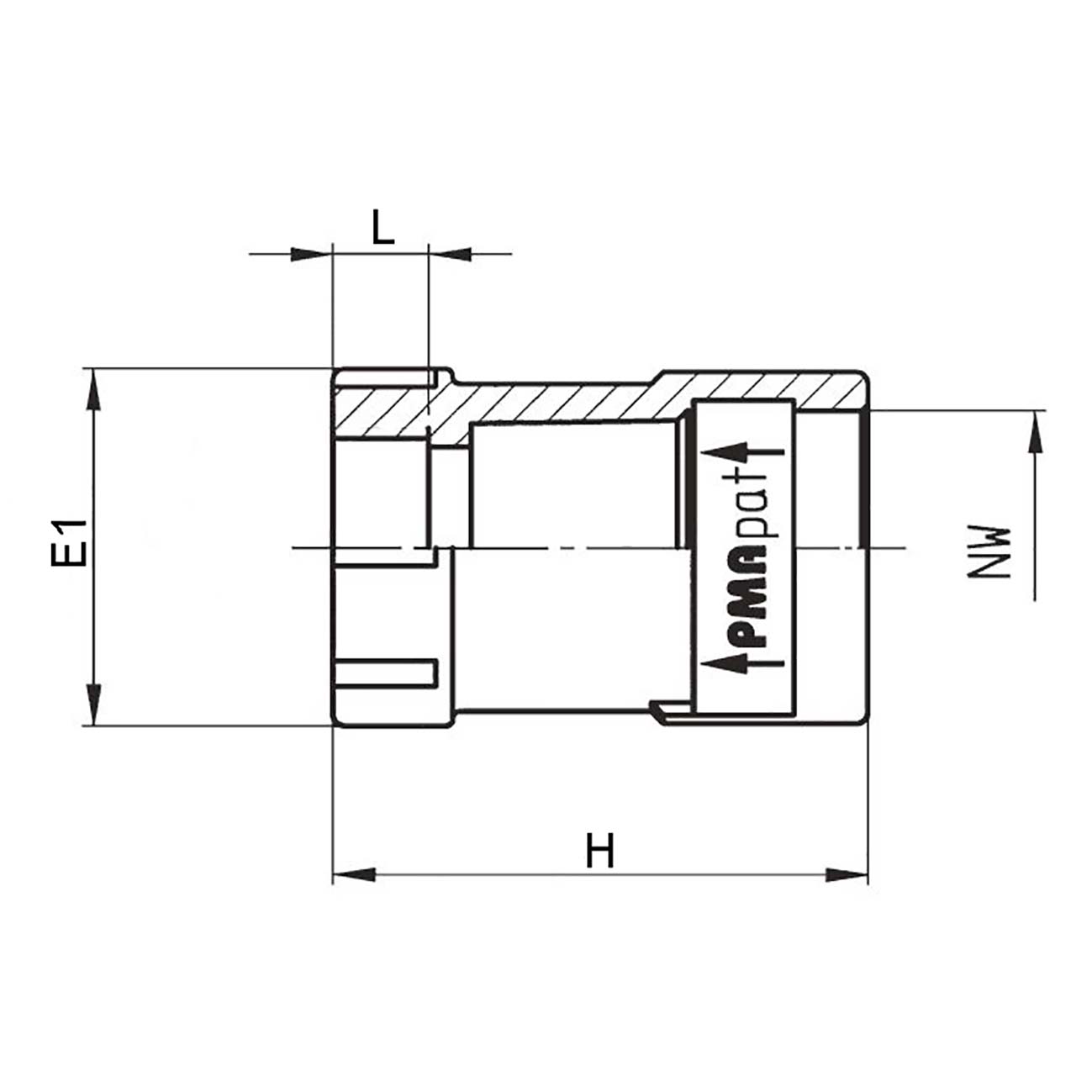

| Article no. | Internal thread | Conduit size | L mm | H mm | E1 mm | Pcs/pack |
| BVID-M12MGT | M12x1,5 | 7 | 8 | 32.0 | 20 | 100 |
| BVID-M160GT | M16x1,5 | 10 | 8 | 33.5 | 21.5 | 50 |
| BVID-M162GT | M16x1,5 | 12 | 8 | 36.4 | 23.5 | 50 |
| BVID-M207GT | M20x1,5 | 17 | 8 | 44.5 | 30 | 50 |
| BVID-M253GT | M25x1,5 | 23 | 8 | 48.5 | 37 | 30 |
| BVID-M329GT | M32x1,5 | 29 | 10 | 51.5 | 44 | 20 |
| BVID-M406GT | M40x1,5 | 36 | 10 | 65.5 | 53.5 | 20 |
| BVID-M508GT | M50x1,5 | 48 | 10 | 65.5 | 66 | 10 |
| BVID-M638GT | M63x1,5 | 48 | 10 | 65.5 | 72 | 10 |
Material:
Polyamide PA6
Ingress protection:
IP66 stat. / IP54 dyn.
Temperature range:
-40°C....+105°C
Colour:
Black RAL 9005
Test standard:
EN 60529 / DIN 40050 / IEC 60529
Flame class:
UL94 V0
Glow wire test:
960°C acc. to EN 60695-2-10
Halogen-Free:
Yes
