Female Thread Adapter UNEF
- For cable protection systems in a wide range of applications.
- High-grade, specially formulated polyamide 6.
- Very high impact resistance.
- Vibration-proof connection to PMAFLEX conduits.
- Easy installation: simply push the conduit in.
- High conduit pull-out strength.
- Can be easily re-opened with a screwdriver.
- Very good chemical properties.
- Free from halogens and cadmium.
- Fits both conduit profiles - fine (T) and coarse (G)
- 5/8"-24 (3)
- 3/4"-20 (3)
- 15/16"-20 (3)
- 1 5/16"-18 (1)
- 1 3/8"-18 (2)
- 1 5/8"-18 (3)
- 7 (1)
- 10 (2)
- 12 (4)
- 17 (4)
- 23 (4)

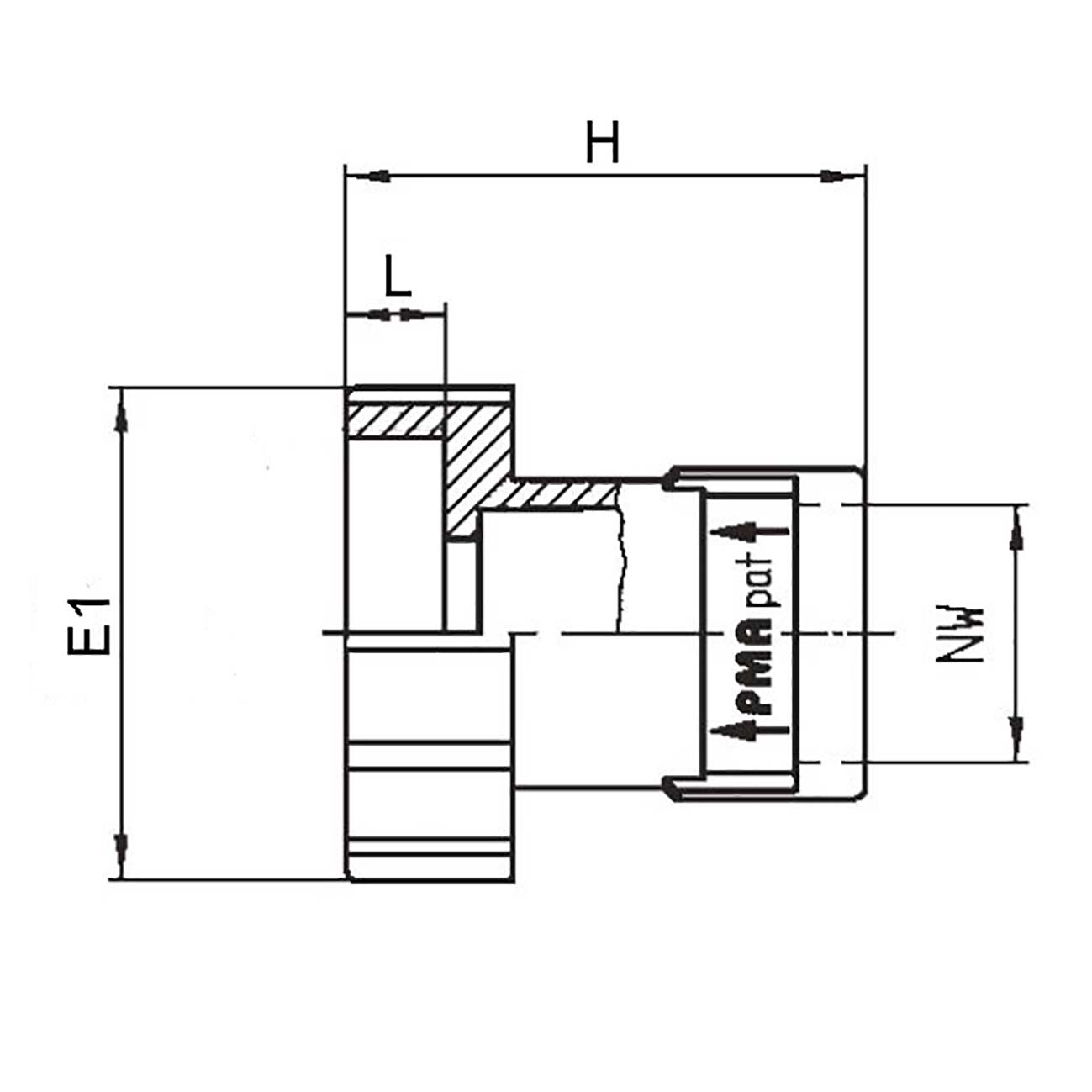

| Article no. | Internal thread | Conduit size | L mm | H mm | E1 mm | Pcs/pack |
| BVIDA-U15MGT | 5/8"-24 | 7 | 8 | 31.5 | 21.5 | 100 |
| BVIDA-U150GT | 5/8"-24 | 10 | 8 | 33.5 | 21.5 | 50 |
| BVIDA-U152GT | 5/8"-24 | 12 | 8 | 36.5 | 21.5 | 50 |
| BVIDA-U180GT | 3/4"-20 | 10 | 8 | 33.5 | 27 | 50 |
| BVIDA-U182GT | 3/4"-20 | 12 | 8 | 36.5 | 27 | 50 |
| BVIDA-U187GT | 3/4"-20 | 17 | 8 | 44.5 | 27 | 50 |
| BVIDA-U232GT | 15/16"-20 | 12 | 8 | 38.5 | 32 | 50 |
| BVIDA-U237GT | 15/16"-20 | 17 | 8 | 46.5 | 32 | 50 |
| BVIDA-U233GT | 15/16"-20 | 23 | 8 | 48.5 | 35.5 | 30 |
| BVIDA-U323GT-11 | 1 5/16"-18 | 23 | 11 | 52.0 | 44 | 30 |
| BVIDA-U347GT | 1 3/8"-18 | 17 | 8 | 46.5 | 44 | 50 |
| BVIDA-U343GT | 1 3/8"-18 | 23 | 8 | 48.5 | 44 | 30 |
| BVIDA-U402GT | 1 5/8"-18 | 12 | 7 | 55.5 | 48 | 50 |
| BVIDA-U407GT | 1 5/8"-18 | 17 | 7 | 61.5 | 48 | 50 |
| BVIDA-U403GT | 1 5/8"-18 | 23 | 7 | 60.5 | 48 | 30 |
Material:
Polyamide PA6
Ingress protection:
IP66 stat. / IP54 dyn.
Temperature range:
-40°C....+105°C
Colour:
Black RAL 9005
Test standard:
EN 60529 / DIN 40050 / IEC 60529
Flame class:
UL94 V0
Glow wire test:
960°C acc. to EN 60695-2-10
Halogen-Free:
Yes
