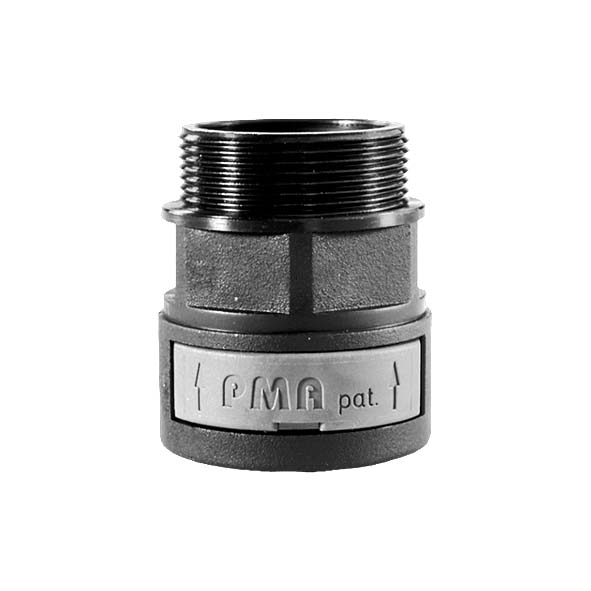

Straight conduit-connector IP66 Metric
- For cable protection systems in a wide range of applications.
- High-grade, specially formulated polyamide 6.
- Very high impact resistance.

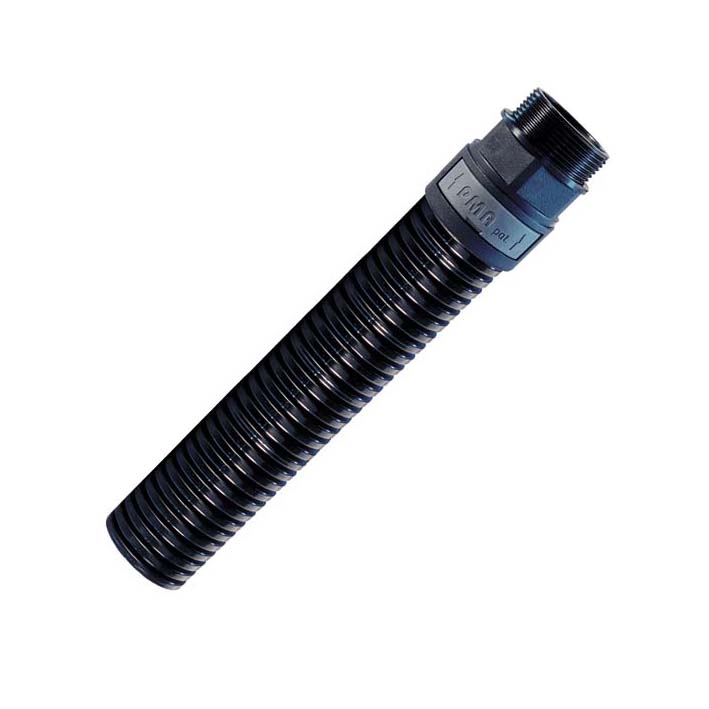

- Vibration-proof connection to PMAFLEX conduits.
- Easy installation: simply push the conduit in.
- High conduit pull-out strength.
- Can be easily re-opened with a screwdriver.
- Very good chemical properties.
- Free from halogens and cadmium.
- Fits both conduit profiles - fine (T) and coarse (G)
- M12x1,5 (2)
- M16x1,5 (2)
- M20x1,5 (4)
- M25x1,5 (2)
- M32x1,5 (2)
- M40x1,5 (2)
- M50x1,5 (2)
- M63x1,5 (1)
- NW 7 (1)
- NW 10 (3)
- NW 12 (2)
- NW 17 (2)
- NW 23 (3)
- NW 29 (2)
- NW 36 (2)
- NW 48 (2)

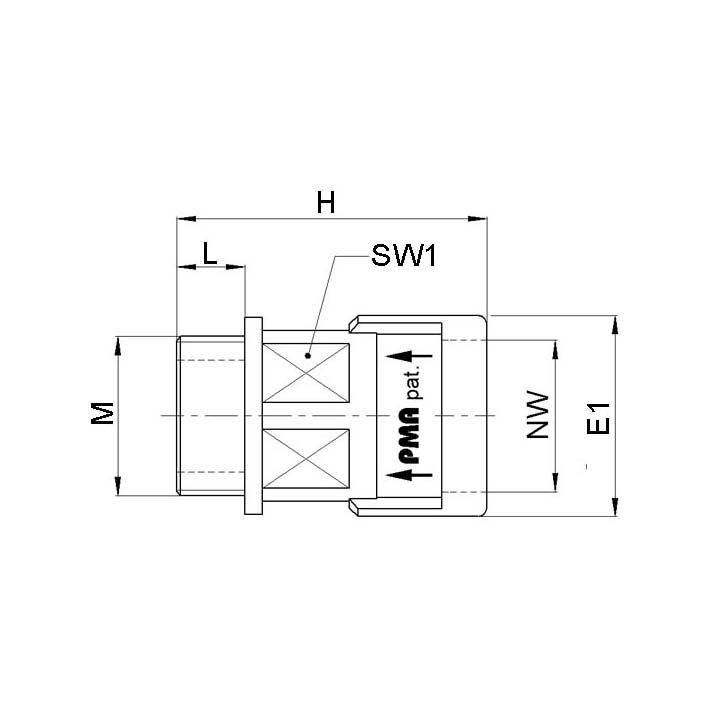

| E-number | Article no. | Connection thread | Conduit size | L mm | H mm | SW1 mm | E1 mm | Pcs/pack |
| 1470098 | BVND-M12MGT | M12x1,5 | NW 7 | 11 | 34,5 | 14 | 20 | 100 |
| 1470099 | BVND-M120GT | M12x1,5 | NW 10 | 11 | 36,5 | 17 | 20 | 100 |
| 1470100 | BVND-M160GT | M16x1,5 | NW 10 | 11 | 36,5 | 17 | 23 | 100 |
| 1470101 | BVND-M162GT | M16x1,5 | NW 12 | 11 | 39,5 | 20 | 23.5 | 100 |
| - | BVND-M200GT | M20x1,5 | NW 10 | 11 | 36,5 | 17 | 26 | 100 |
| 1470102 | BVND-M202GT | M20x1,5 | NW 12 | 11 | 39,5 | 20 | 26 | 100 |
| 1470103 | BVND-M207GT | M20x1,5 | NW 17 | 11 | 47,5 | 26 | 29.5 | 100 |
| - | BVND-M203GT | M20x1,5 | NW 23 | 11 | 51,0 | 32 | 37 | 50 |
| 1470108 | BVND-M257 | M25x1,5 | NW 17 | 12 | 48,5 | 26 | 32 | 100 |
| 1470104 | BVND-M253GT | M25x1,5 | NW 23 | 12 | 52,0 | 32 | 37 | 50 |
| 1470109 | BVND-M323GT | M32x1,5 | NW 23 | 15 | 55,5 | 32 | 43 | 50 |
| 1470105 | BVND-M329GT | M32x1,5 | NW 29 | 15 | 56,0 | 40 | 44 | 30 |
| 1470117 | BVND-M409GT | M40x1,5 | NW 29 | 19 | 60,0 | 40 | 49 | 30 |
| 1470106 | BVND-M406GT | M40x1,5 | NW 36 | 19 | 72,5 | 50 | 55 | 20 |
| 1470118 | BVND-M506GT | M50x1,5 | NW 36 | 19 | 72,0 | 50 | 59 | 20 |
| 1470107 | BVND-M508GT | M50x1,5 | NW 48 | 19 | 72,5 | 65 | 69 | 10 |
| 1470142 | BVND-M638GT | M63x1,5 | NW 48 | 19 | 72,0 | 65 | 75 | 10 |
Material:
Polyamide PA6
Ingress protection:
IP66 stat. / IP54 dyn.
Temperature range:
-40°C....+105°C
Colour:
Black RAL 9005
Test standard:
EN 60529 / DIN 40050 / IEC 60529
Flame class:
UL94 V0
Glow wire test:
960°C acc. to EN 60695-2-10
Halogen-Free:
Yes
